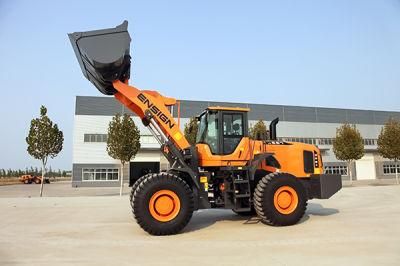

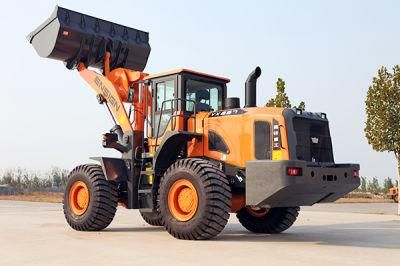

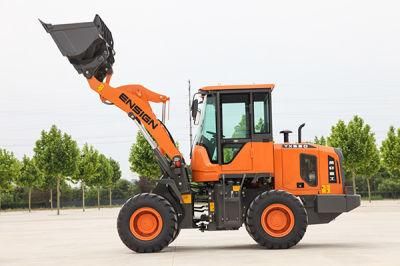

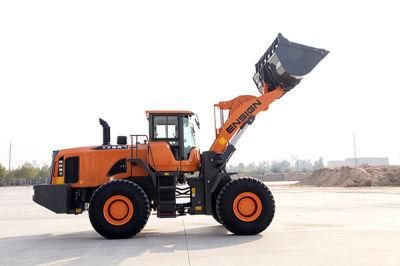

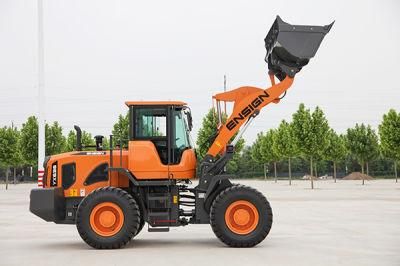

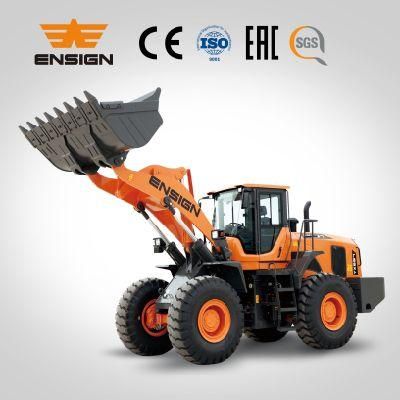

Brand New Ce Approved Articulated 3.0 Ton Machine with Rops&Fops Cabin for Southeast Asia

Ensign Heavy Industries Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：YX638
  • Type：Medium-sized Loader
  • Warranty：2 Year
  • Delivery Time：10-30 Days
  • Production Capacity：20000 Units, Year, 20000 Pieces,Year
  • Engine：Cummins Engine
  • Engine Power：97kw
  • Bucket：1.8 M3 or Bigger
  • Color：Orange
  • Usage：Universal Type
  • Transport Package：1 Unit in 1*40hq
  • Specification：7100*2520*3230mm
  • Trademark：ENSIGN
  • Origin：Shandong Province, China
  • HS Code：84295100

Description

Bucket capacity1.2~3.0(standard bucket 1.8m3)Total cycle time(lift, dump& lower)≤10.5sRated load3000kgDump height2950mmOverall operating weight10700kgDump distance1050mmMax. traction force≥105kNMin. ground clearance370mmMax. breakout force≥106kNWheel base2850mmGrade ability30°Wheel tread1850mmMin. turning radius(outer side of the bucket)5950mmDeparture angle30°Min. turning radius(outer side of the tire)
 5380mmSteering angle(left & right)38°Specifications:
1.0 Engine Details
  (1) Model:Cummins Engine
  (2) Engine Type:In-line arrangement,water-cooled,six-cycle diesel engine
  (3) Rated Power:97KW

2.0 Transmission System
  (1) Type: Electro-hydraulic control shift
  (2) Torque converter type:Double turbine, 3 elements
  (3) Gears:4 forward, 3 reverse

3.0 Braking System
 (1) Service brake:Air-over-oil caliper disc
 (2) Parking brake:flexible shaft caliper disc

4.0 Steering system
(1) Type:Load sensing hydraulic
(2) Oil pump type:gear pump

5.0 Working device hydraulic system
(1) Hydraulic system pressure:16 Mpa
(2) Control type:Joystick
(3) Oil pump type:Gear pump

6.0 Tire
(1) Specification:17.5-25
(2) Tread pattern:L-3

7.0 Bucket
  (1) Bucket capacity:1.8 m3
  (2) Bucket type:Heavy-duty bolt on teeth
  (3) Rated Load:3000kg

Optional Configurations:
 Quick Hitch
  Joystick
  A/C
  Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Optional Attachments:
 Rock Bucket
 Pallet/Grass Fork

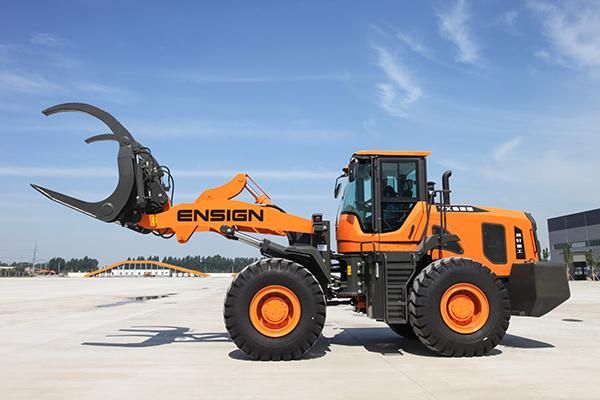

 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
  4 In 1 Bucket
Brand New Ce Approved Articulated 3.0 Ton Machine with Rops&Fops Cabin for Southeast Asia
 We Are The Factory!
We Only Produce The High Quality Wheel Loader!
The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website@ensign.en.made-in-china.com and our factory in china.
