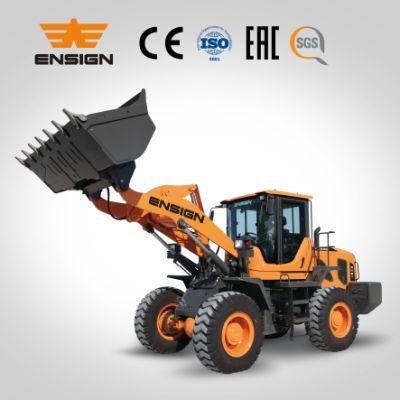

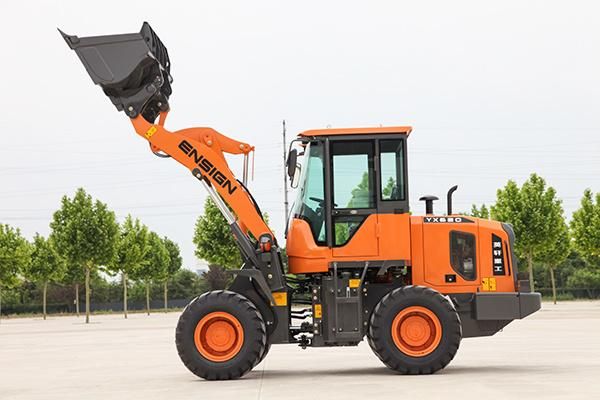

Chinese High Quality Mini Articulated New Wheel Loader for Sale

Ensign Heavy Industries Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：YX620
  • Type：Small Loader
  • Warranty：2 Year
  • Delivery：10-20 Days
  • Usage：Universal Type
  • Scraper Type：Tractor-Scraper
  • Engine：Yuchai Engine
  • Power：58kg
  • Color：Orange
  • Bucket：1.0 M3 or Bigger
  • Transport Package：1 Unit in 1*40 Hq
  • Specification：5790*2150*2980mm
  • Trademark：ENSIGN
  • Origin：Shandong Province, China
  • HS Code：84295100
  • Production Capacity：20000 Pieces,Year

Description

Bucket capacitystandard bucket 1.0m3Total cycle time(lift, dump& lower)≤9.5sRated load1800kgDump height/Dump angle2510/44mm/ °Overall operating weight6100kgDump distance/Dump angle950/44mm/ °Max. traction force≥50kNMin. ground clearance300mmMax. breakout force≥58kNWheel base2260mmGrade ability30°Wheel tread1630mmMin. turning radius(outer side of the bucket)5080mmDeparture angle30°Min. turning radius(outer side of the tire)
 4650mmSteering angle(left & right)35°Specifications:
1.0 Engine Details
  (1) Model:Yuchai Engine
  (2) Engine Type:In-line arrangement,water-cooled,four-cycle diesel engine
  (3) Rated Power:58KW

2.0 Transmission System
  (1) Type:Fixed shaft power shift
  (2) Torque converter type:Single stage, 3 elements
  (3) Gears:2 forward, 2 reverse

3.0 Braking System
 (1) Service brake:Air-over-oil caliper disc
 (2) Parking brake:flexible shaft caliper disc

4.0 Steering system
(1) Type:Load sensing hydraulic
(2) Oil pump type:gear pump

5.0 Working device hydraulic system
(1) Hydraulic system pressure:17.5 Mpa
(2) Control type:Mechanical
(3) Oil pump type:Gear pump

6.0 Bucket
  (1) Bucket capacity:1.0 m3
  (2) Bucket type:Heavy-duty bolt on teeth
  (3) Rated Load:1800kg

Optional Configurations:
 Quick Hitch
  Joystick
  A/C
  Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Optional Attachments:
 Rock Bucket
 Pallet/Grass Fork
 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
  4 In 1 Bucket
Chinese High Quality Mini Articulated New Wheel Loader for Sale
 We Are The Factory!
We Only Produce The High Quality Wheel Loader!
The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website@ensign.en.made-in-china.com and our factory in china.
