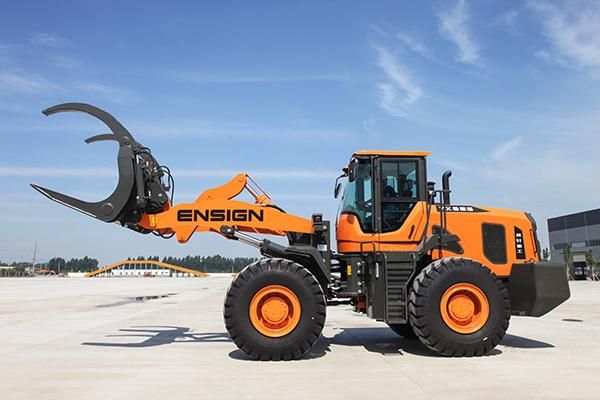

Chinese Machine Manufacturer Big Wheel Loader with Different Work Attachments

Ensign Heavy Industries Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：YX667
  • Type：Large Loader
  • Warranty：2 Year
  • Usage：Universal Type
  • Scraper Type：Tractor-Scraper
  • Engine：Weichai Engine
  • Engine Power：147~515kw
  • Color：Orange
  • Bucket：3.5 M3 or Bigger
  • Transport Package：1 Unit in 1*40 Hq+1*20gp
  • Specification：8680*3030*3520mm
  • Trademark：ENSIGN
  • Origin：Shandong Province, China
  • HS Code：84295100
  • Production Capacity：20000 Pieces,Year

Description

Bucket capacitystandard bucket 3.5m3Total cycle time(lift, dump& lower)≤10.6sRated load6000kgDump height/Dump angle3060/45mm/ °Overall operating weight20000kgDump distance/Dump angle1290/45mm/ °Max. traction force≥197kNMin. ground clearance465mmMax. breakout force≥198kNWheel base3350mmGrade ability30°Wheel tread2250mmMin. turning radius(outer side of the bucket)7060mmDeparture angle30°Min. turning radius(outer side of the tire)
 6320mmSteering angle(left & right)38°Specifications:
1.0 Engine Details
  (1) Model:Weichai Engine
  (2) Engine Type:In-line arrangement,water-cooled,four-cycle diesel engine
  (3) Rated Power:178KW

2.0 Transmission System
  (1) Type:Fixed shaft electronic control shift
  (2) Torque converter type:Double turbine, 3 elements
  (3) Gears:4 forward, 4 reverse

3.0 Braking System
 (1) Service brake:Air-over-oil caliper disc
 (2) Parking brake:flexible shaft caliper disc

4.0 Steering system
(1) Type:Load sensing hydraulic
(2) Oil pump type:gear pump

5.0 Working device hydraulic system
(1) Hydraulic system pressure:17.5 Mpa
(2) Control type:Joystick
(3) Oil pump type:Gear pump

6.0 Tire
(1) Specification:23.5-25
(2) Tread pattern:L-3

7.0 Bucket
  (1) Bucket capacity:3.5 m3
  (2) Bucket type:Heavy-duty bolt on teeth
  (3) Rated Load:6000kg

Optional Configurations:
 Quick Hitch
  Joystick
  A/C
  Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Optional Attachments:
 Rock Bucket
 Pallet/Grass Fork
 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
  4 In 1 Bucket
Chinese Machine Manufacturer Big Wheel Loader with Different Work Attachments
 We Are The Factory!
We Only Produce The High Quality Wheel Loader!
The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website@ensign.en.made-in-china.com and our factory in china.
