Chinese Manufacture Sem520 12200kg 40cm Road Roller with ISO
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Steel Wheel
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
- Compaction Depth：35cm
- Engine Type：Diesel Engine
Base Info
- Travel Speed：35cm,s
- Centrifugal Force：30.5KN
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Product Name：Chinese Engine Sem520 12200kg 30cm Road Roller
- Model：Sem520
- Operating Weight：12200kg
- Rated Poer：175HP
- Transport Package：Nude
- Specification：2725*1400*2740 mm
- Trademark：CCC ISO9001
- Origin：China
- HS Code：84295100
- Production Capacity：100unit,Month
Description
Type
Unit
XS183
Operating weight
kg
18000
Load applied on front drum
kg
11500
Load applied on rear wheels
kg
6500
Compacting width
mm
2130
Static linear load
N/cm
529
Vibration frequency(Low/High)
Hz
28/33
Nominal amplitude(High/Low)
mm
1.86/0.93
Exiting force(High/Low)
KN
340/240
Travel speed
km/h
0~10
Steering angle
°
±33
Swing angle
°
±10
Theoretical gradeability
%
50
Min. external turning radius
mm
6500
Engine model
DEUTZ BF6M2012C
Engine power
kw
136
Rated engine speed
r/min
2200
Engine oil consumption
g/kW.h
222
Hydraulic oil tank capacity
L
240
Fuel tank capacity
L
240

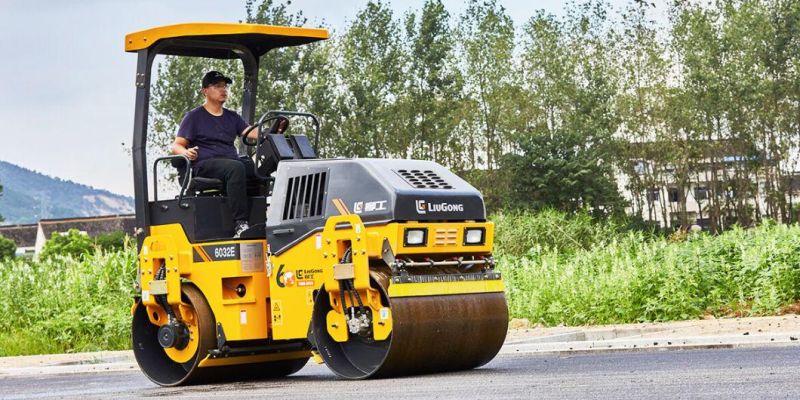

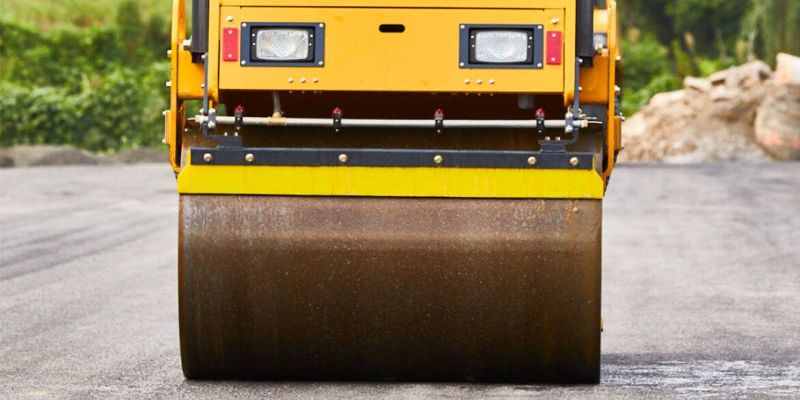

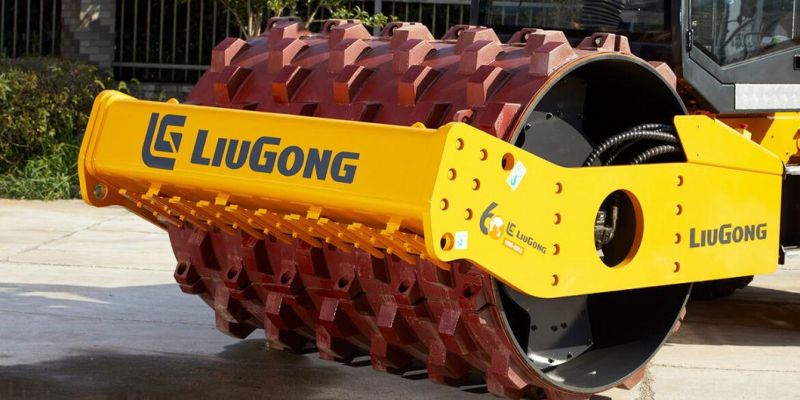

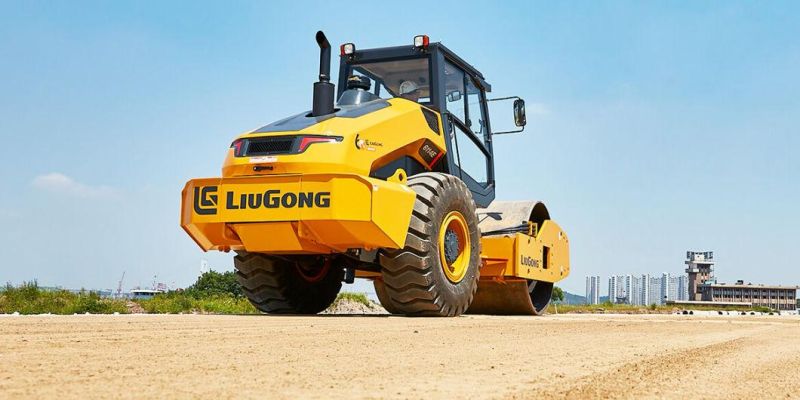

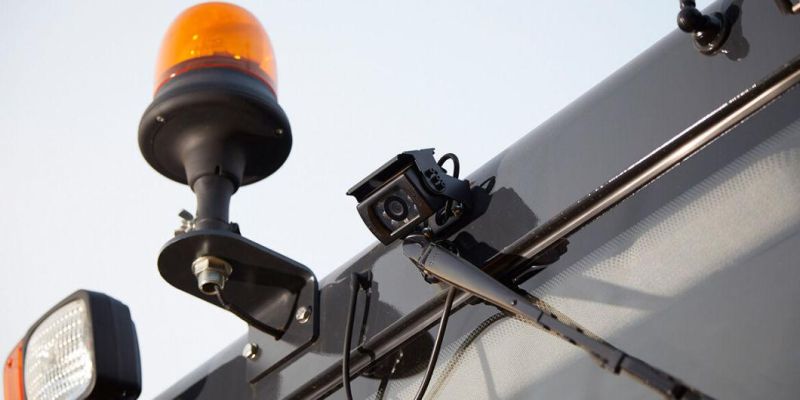

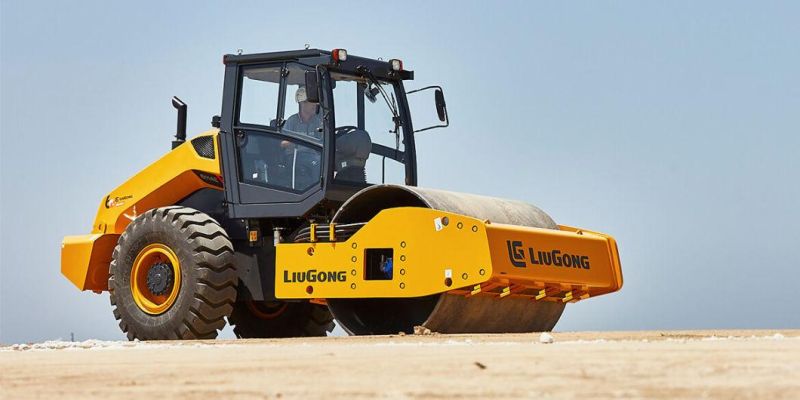

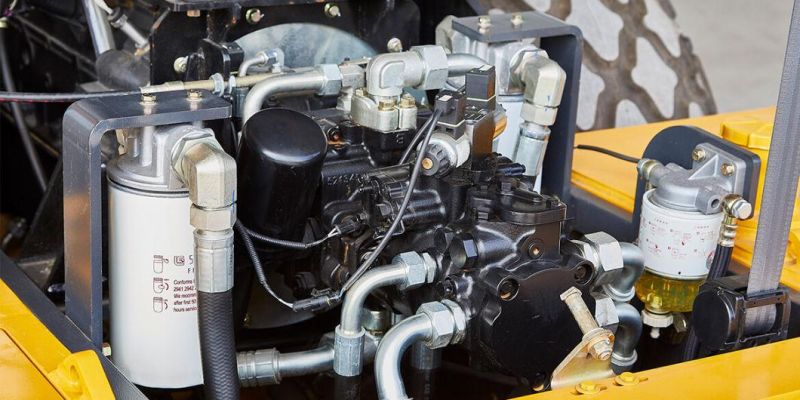

II. Detailed Images
