• Model NO.：HK260SD
• Drive Type：Electric Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Boom Length：5680mm
• Arm Length：2912mm
• Chains：2
• Engine：6bg1 Isuzu
• Displacement：6.494L
• Max.Digging Depth：5704mm
• Max.Digging Height：10577mm
• Max.Dumping Height：7810mm
• Transport Package：40hq Container
• Trademark：EONMAC
• Origin：China
• Production Capacity：50 Units Per Month

Specification Operating weight26000kgStandard bucket capacity0.9m³Boom length5680Arm length2912Chains2Engine: Model6BG1Typeinter-cooled turboPower114kW/2100rpmMax.torque629N m / 1600rpmNo.of cylindar6Displacement6.494LHydraulic system Main pump TypeVariable plunger pumpMax.displacement2X107cm3/rMax.flow20L/minWorking pressure32MpaHydraulic motor Slew motorfixed plungerTravel motorvariable plungerPerformance Slew speed11rpmMin.slew radius3554mmMax.travel speed high/low5.4/3.2km/hGradeability70%Tracktive effort279.8kNMax.digging force of bucket98.3kNMax.digging force of arm63.5kNGround pressure0.14kg/cm2Oil tank capacity Fuel tank capacity376LHydraulic tank capacity219L  Item Length of pontoon8083Ground clearance of platform2002Overall height3826Boom transport height3390Overall length10502Rear swing radius2800Track gauge3643Overall width5133Width of pontoon1490Min.ground clearance1192Height of pontoon1718Width of upper structure2867Ground length4787  Item Max.digging reach9925Max.digging reach on ground9540Max.digging depth5704Max.vertical digging depth5125Max.digging height10577Max.dumping height7810Min.front slewing radius3554



Features:

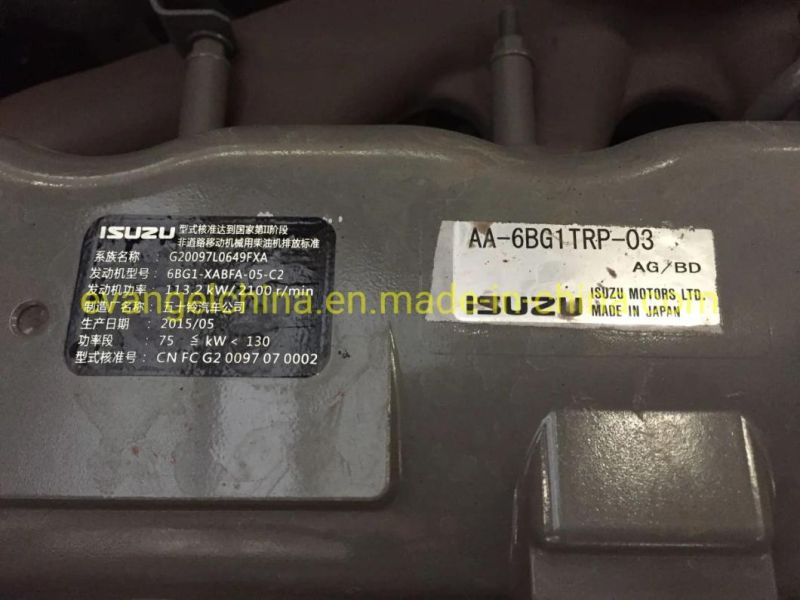

Japanese made engine
Korean made hydraulic pumps
Korean made Parke-r valves

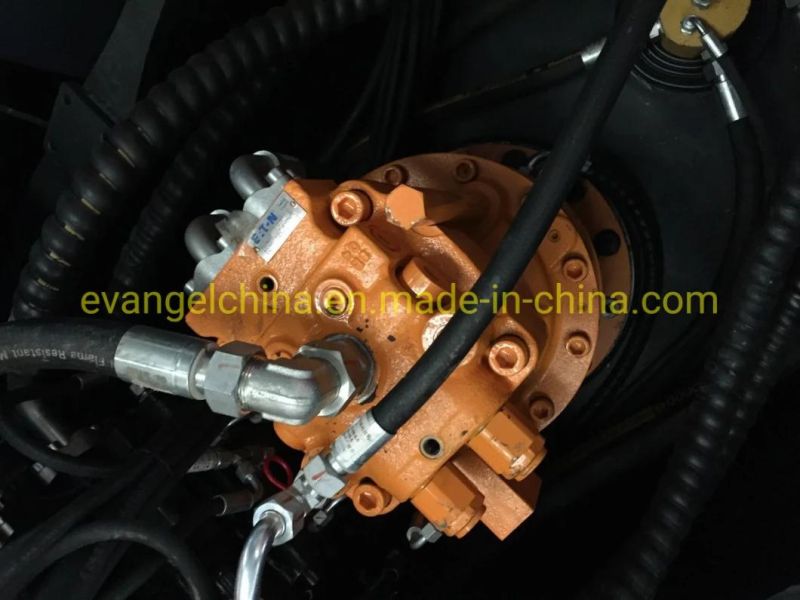

Korean made swing and travel hydraulic motors
Korean made hydraulic pilot valves
Luxurious cabin with air conditioner
