• Model NO.：SD16D
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Transport Package：by Sea-
• Specification：OVERALL WEIGHT 17, 000kg (Standard)
• Trademark：Shantui
• Origin：China
• HS Code：84291190
• Production Capacity：500,Month

Basic Info.

Model NO. SD16D Engine Power 74~147kw Certification CE, ISO9001: 2000 Condition New Color Yellow Transport Package by Sea- Specification OVERALL WEIGHT 17, 000kg (Standard) Trademark Shantui Origin China HS Code 84291190 Production Capacity 500/Month

Product Description

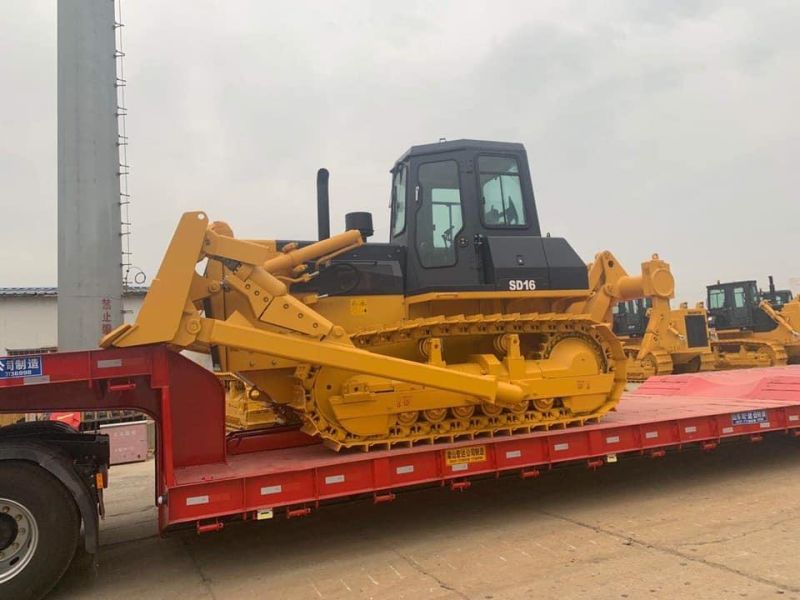

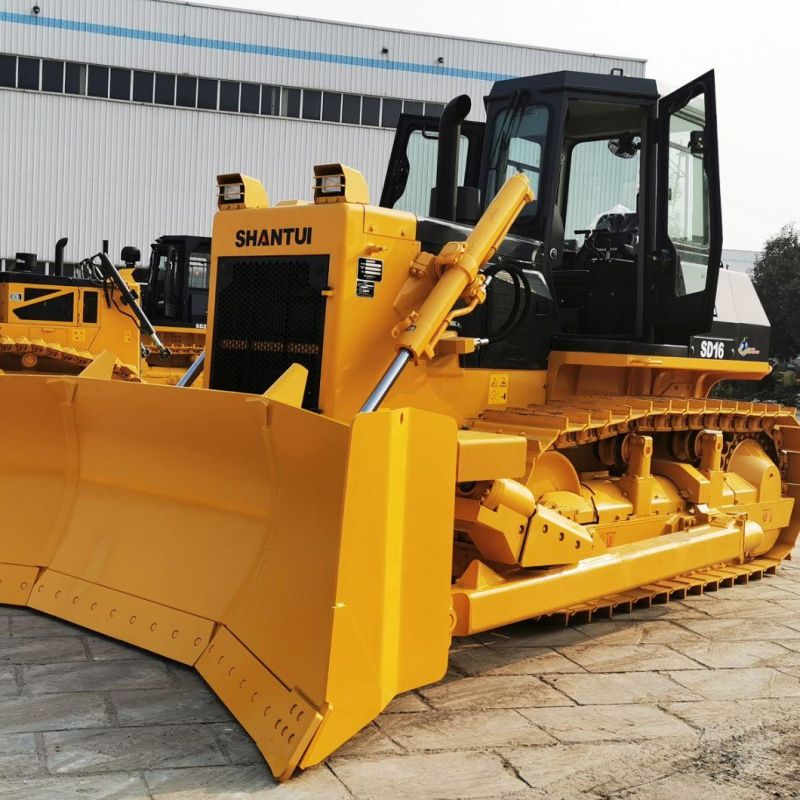

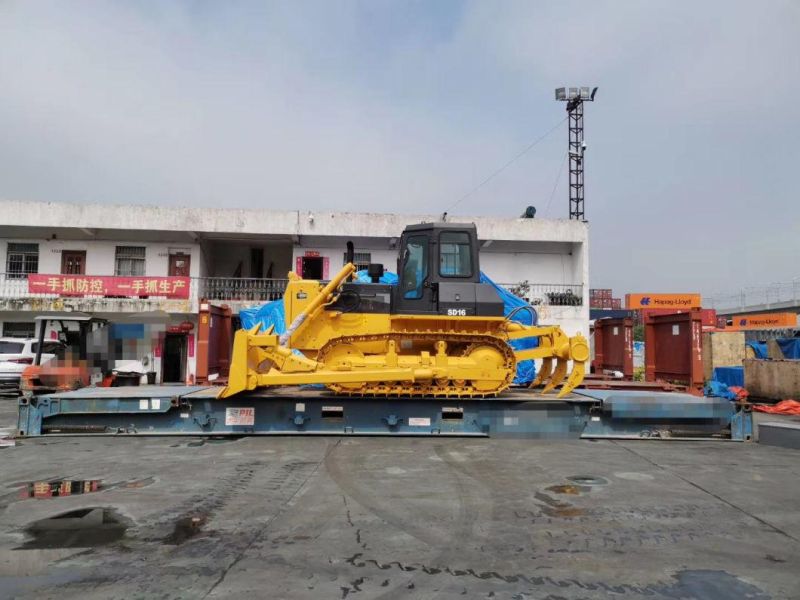

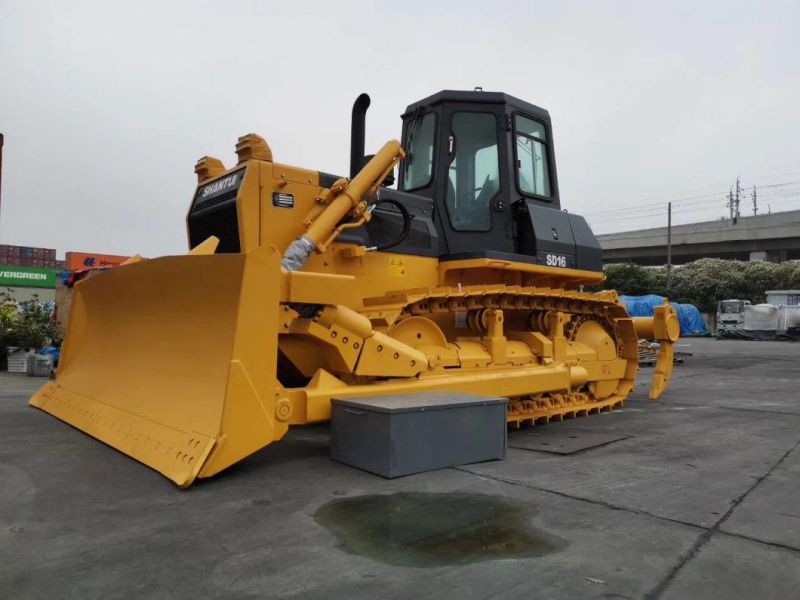

160hp Shantui Bulldozer for desert/coalPower System

The installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 131kW, featuring high torque reserve coefficient.

The radially sealed intake system is applied to effectively prolong the engine life.

Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Driving/Riding Environment

The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.

Working adaptability

Shantui's stable and reliable chassis system is applicable to diversified severe working conditions.

The product features long ground length, high ground clearance, stable driving, and good trafficability.

The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Easy maintenances

The structural parts inherit the excellent quality of Shantui's mature products;

The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.

The openable large-space side hoods make the repairs and maintenance easier.

The fuel filter element and the air filter are designed on one same side to achieve one-stop;



Parameter name	SD16 (Standard version)	SD16C (Coal version)	SD16E (Extended version)	SD16L(Super-wetland version)	SD16R (Environmental sanitation version)	SD16D (Desert version)
Performance parameters
Operating weight (Kg)	17000	17500	17346	18400	18400	18200
Ground pressure (kPa)	58	50	55	25	25	33.2
Engine
Engine model	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)
Rated power/rated speed (kW/rpm)	131/1850	131/1850	131/1850	131/1850	131/1850	131/1850
Overall dimensions
Overall dimensions of machine (mm)	5140*3388*3032	5427*3900*3032	5345*3388*3032	5262*4150*3074	5262*4150*3074	5262*4150*3074
Driving performance
Forward speed (km/h)	F1:0-3.29,F2:0-5.82,F3:0-9.63	F1:0-3.29,F2:0-5.82,F3:0-9.63	F1:0-3.29,F2:0-5.82,F3:0-9.63	F1:0-3.29,F2:0-5.82,F3:0-9.63	F1:0-3.29,F2:0-5.82,F3:0-9.63	F1:0-3.29,F2:0-5.82,F3:0-9.63
Reversing speed (km/h)	R1:0-4.28,R2:0-7.59,R3:0-12.53	R1:0-4.28,R2:0-7.59,R3:0-12.53	R1:0-4.28,R2:0-7.59,R3:0-12.53	R1:0-4.28,R2:0-7.59,R3:0-12.53	R1:0-4.28,R2:0-7.59,R3:0-12.53	R1:0-4.28,R2:0-7.59,R3:0-12.53
Chassis System
Center distance of track (mm)	1880	1880	1880	2300	2300	2300
Width of track shoes (mm)	510/560/610	610	560/510/610	1100/950	1100/660	810
Ground length(mm)	2430	2430	2635	2935	2935	2935
Tank capacity
Fuel tank (L)	315	315	315	315	315	315
Working device
Blade type	Angle Blade, Straight tilting blade and U-shaped Blade	Coal blade	Angle Blade, Straight tilting blade and U-shaped Blade	Straight tilting blade	Sanitation blade	Straight tilting blade
Digging depth (mm)	540	540	540	485	485	485
Ripper type	Three-tooth ripper	--	Three-tooth ripper	--	--	--
Ripping depth (mm)	570	--	570	--	--	--
