• Model NO.：LW300FN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：Nude Package
• Specification：3 ton
• Trademark：SINOMADA
• Origin：China
• HS Code：8429521200
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. LW300FN Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Package Specification 3 ton Trademark SINOMADA Origin China HS Code 8429521200 Production Capacity 50000pieces/Year

Product Description

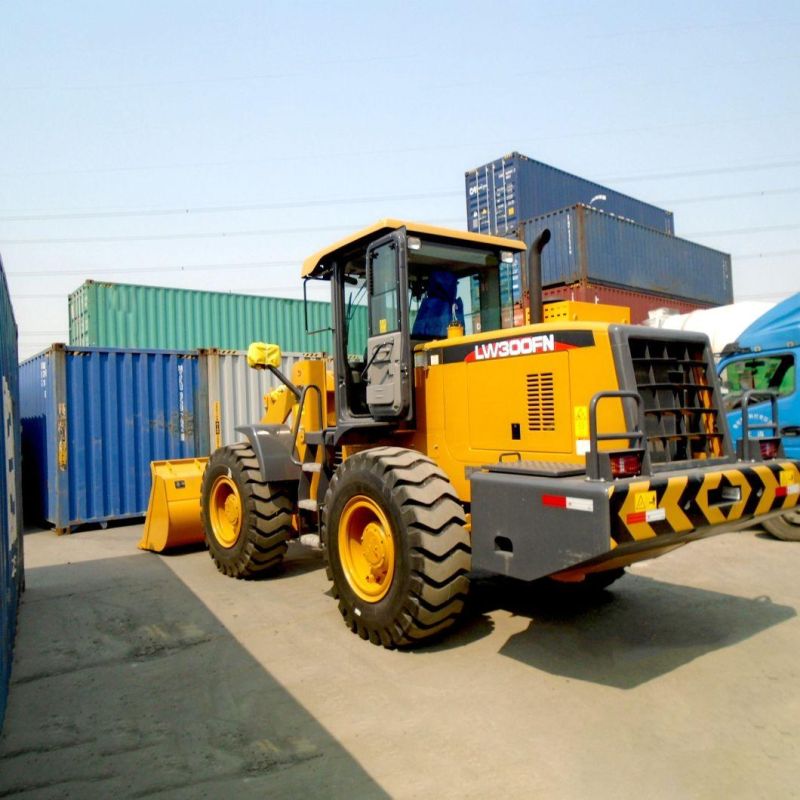

Wheel loader LW300FN 2.5m3 92kw 3 ton Loader for Sale

1. It features high efficiency, energy-saving, and strong power.

2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.

3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

4. The bucket is made of high strength material to realize high wear and impact resistance.

5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.



Description	Unit	Parameter value
Rated operating load	kg	3000
Bucket capacity	m³	1.5~2.5
Machine weight	kg	10600±200
Dump clearance at maximum lift	mm	2770~3260
Reach at maximum lift	mm	1010~1210
Wheel base	mm	2600
Tread	mm	1850
Height of hinge at maximum lift height	mm	3830
Working height(fully lifted)	mm	4870
Max.breakout force	kN	130
Max.horse power	kN	95
Hydraulic cycle time-raise	s	5.5
Total hydraulic cycle time	s	10
Min. turning radius over tyres	mm	5165
