• Model NO.：650*125*80
• Pitch Length：125mm
• Link No：80
• Color：Black
• Material：Rubber and Steel
• Delivery：10 Days After Payment
• Warranty：Guarantee 12 Months Under Normal Use
• Export Market：Global
• Transport Package：Bare Packing or Wooden Pallets
• Specification：650*125*80
• Trademark：According to Customer Requirements
• Origin：Shanghai, China
• HS Code：84314999
• Production Capacity：5000 Per Month

Basic Info.

Model NO. 650*125*80 Pitch Length 125mm Link No 80 Color Black Material Rubber and Steel Delivery 10 Days After Payment Warranty Guarantee 12 Months Under Normal Use Export Market Global Transport Package Bare Packing or Wooden Pallets Specification 650*125*80 Trademark According to Customer Requirements Origin Shanghai, China HS Code 84314999 Production Capacity 5000 Per Month

Product Description

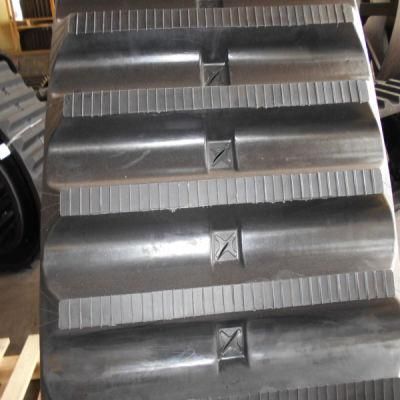

Puyi Rubber Track 650*125*80 for Dumper Hitachi Cg70

Product Information: 600*125*80   for Hitachi CG 70

* Special Features of the PY Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type

*(Other Brand applications Include: Volvo, KOMATSU, KUBOTA, IHI, TAKEUCHI, KOBELKO, HITACHI,

YANMAR, FURKAWA, HANIX, KATO, SUMITOMO, BOBCAT, AIRMANN, Caterpillar, Doosan,

*For Mini/MIDI Excavators & Compact Track Loaders

*Size Classification and Part number: Width(mm) X Pitch(mm)

(=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)

Parameters:

DUMPER TRACK
Size width*pitch	link	A	B	C	D	F	pattern	guiding
320*90	52-56	32	86	50	35	28	AA	A2
U320*90	56-76	37	85	47	32	29	AA	A2
320*100	38-54	29	74	30	25	23	BN	A2
320*100W	37-65	38	80	34	25	22	CD	A2
350*100	49-60	45	112	45	48	27	AA	A2
U380*90	56-76	34	85	48	34	30	AA	A2
420*100	50-58	49	99	50.5	36	25	AA	A2
450*110	74	45	120	64	55	21	AL	A2
500*90	76-82	42	94	51	36	30	AA	A2
500*100	71	45	112	57	54	45	AL	A2
600*100	76-80	44	113	60	49	36	AL	A2
600*125	56-64	43	124	76	61	30	AL	A2
650*110	88	48	114	76	60	34	AL	A2
650*120	78	44	130	91	69	38	AL	A2
700*100	80-98	48	125	75	58	50	AL	A2
700*125	56-64	55	144	68	56	32	AL	A2
750*150	66	62	176	94	68	38	AL	A2
800*125	80	62	175	95	88	32	AL	A2
M800*150	66-68	60	148	73	71	35	AL	A2
K800*150	67-70	80	189	108	78	35	AL	A2
900*150	68-80	80	200	101	66	48	AL	A2
1000*150	86	78	210	101	58	37	AL	A2

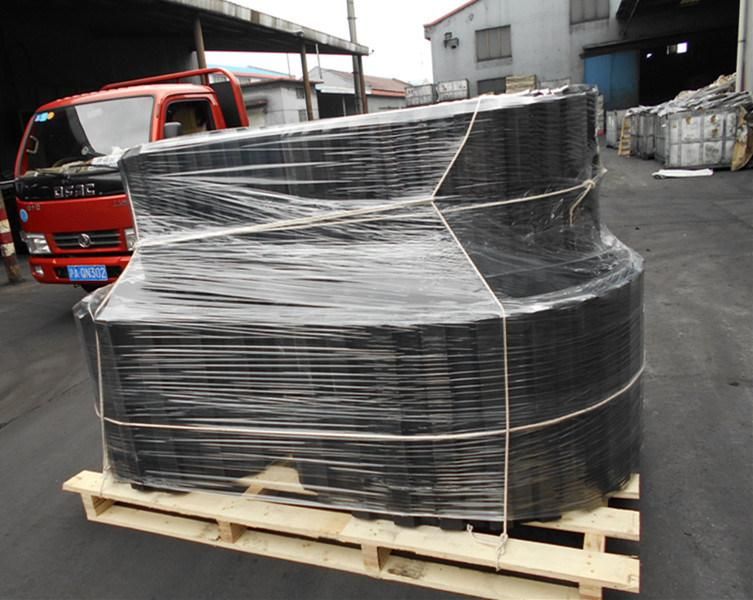

Package:
:
