SD22f Crawler Bulldozer for Forest Industry
Shanghai Super-Above Industry Holdings Co., Ltd.- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
Base Info
- Model NO.：SASD-22
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：ISO9001: 2000, Saso
- Condition：New
- Color：Yellow
- Rated Power：162kw,1800rpm
- Piston Displacement：14L
- Width of Track Shoes：610 mm
- Pitch：216 mm
- Dozing Capacity(M3)：6.4
- Rated Fuel Consumption：205g,Kw.H
- Pump Type：Gear Pump
- Blade Height X Width(mm)：1315 X 3725
- Efficiency(M3/H)：330
- Operating Weight(Kg)：2830
- Transport Package：Naked in Container
- Specification：2830 kg
- Trademark：Super-above, or other famous brand
- Origin：China
- HS Code：8429119000
- Production Capacity：1000PC,Year
Description
Blade blade type Straight-tilt Dozing capacity(m3) 6.4 Blade height x width(mm) 1315 x 3725 Max. Drop below ground(mm) 538 Max. Tilt adjustment(mm) 735 Operating weight(kg) 2830 Efficiency(m3/h) 330 Gear 1st 2nd 3rd Foward(km/h) 0~3.6 0~6.5 0~11.2 Reverse(km/h) 0~4.3 0~7.7 0~13.2
FEATURES & APPLICATION
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal
operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the
rapid and flexible steering controls by joysticks.

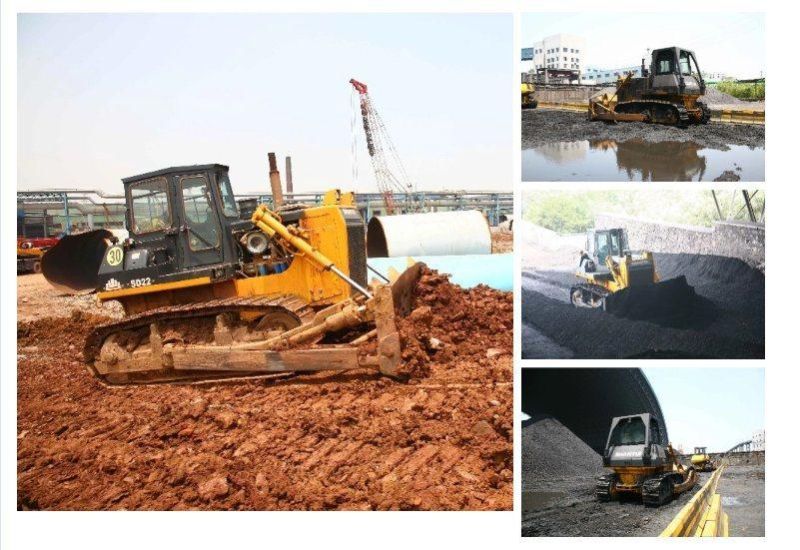

It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions
for roads, farms, water conservancy projects, municipal projects, and energy projects.
