• Model NO.：SL50WN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Transport Package：Nude Package
• Specification：17100kg
• Trademark：Sinomada
• Origin：China
• HS Code：8429521200
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. SL50WN Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Transport Package Nude Package Specification 17100kg Trademark Sinomada Origin China HS Code 8429521200 Production Capacity 50000pieces/Year

Product Description

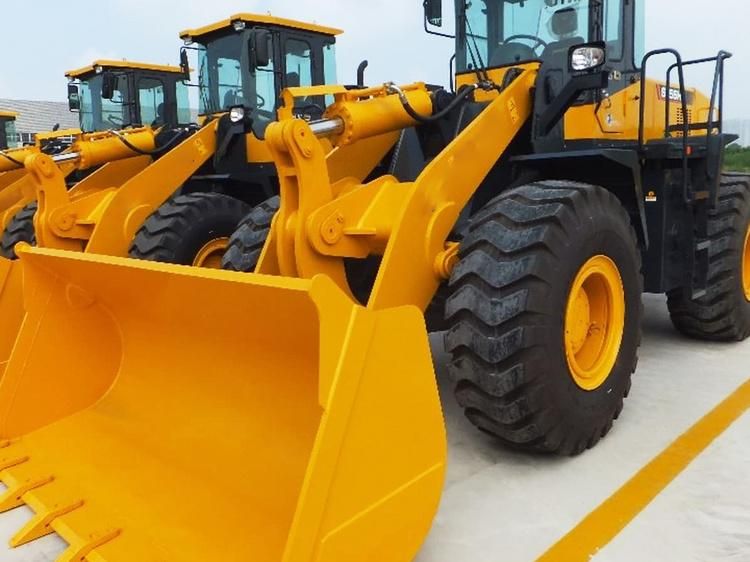

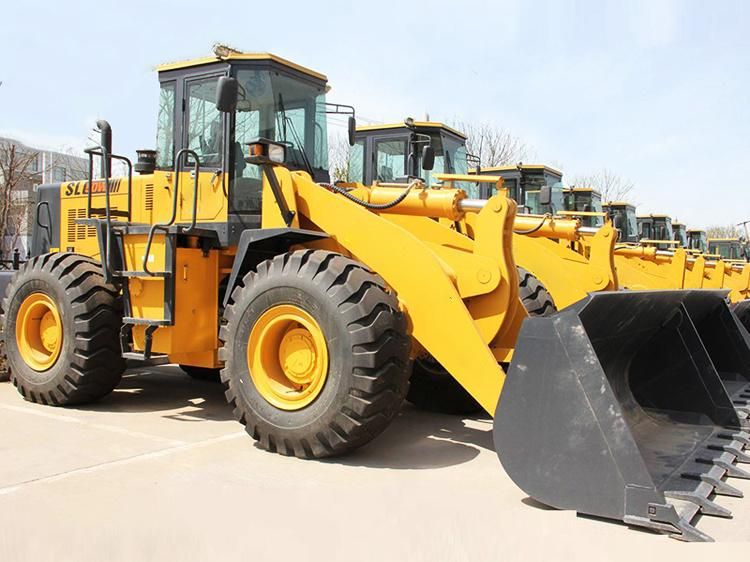

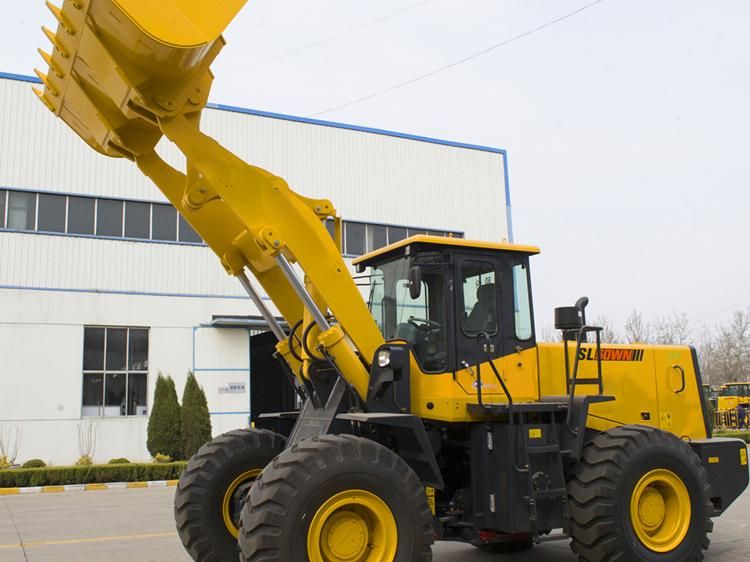

SHANTUI 5 Ton Wheel Loader Front Loader SL50WNConvenient maintenances
The upturning engine hood side door features large opening and convenient services and maintenances.
The externally directed lubrication for both front and rear frames achieves easier maintenances and the grease nozzles are installed with dust caps to realize higher cleanliness.
De-noising
The low-speed engine and new cab are applied and the engine hood is installed with additional sound-insulating material to further reduce the engine noise to 85dB, which is far lower than the current noise standard (89dB) and is superior to the 86dB requirement of the national mandatory standard implemented in 2015.
Moderate Wheelbase
It guarantees outstanding site adaptability and flexibility and strong operating stability and can handle common heavy-load operations with ease.

Parameter name	SL50WN
Performance parameters
Operating weight (Kg)	17100
Maximum dumping height (mm)	3330 (Extended boom)3700 (Long Boom)
Dumping reach (mm)	1230 (Extended boom)1270 (Long Boom)
Maximum breakout force (kN)	≥185
Total cycle time (s)	10.6
Engine
Engine model	WD10
Rated power/rated speed (kW/rpm)	162/2000
Overall dimensions
Overall dimensions of machine (mm)	8025*3026*3410
Driving performance
Forward speed (km/h)	F1:0-13,F2:0-38
Reversing speed (km/h)	R1:0-17
Chassis System
Wheelbase (mm)	3250
Tank capacity
Fuel tank (L)	220
