• Model NO.：RP453L
• Automatic Grade：Semi-Automatic
• Product Capacity：240t,H
• Certification：ISO9001: 2000
• Condition：New
• Transport Package：Nude Package
• Specification：4.5m
• Trademark：Sinomada
• Origin：China
• HS Code：8429521200
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. RP453L Automatic Grade Semi-Automatic Product Capacity 240t/H Certification ISO9001: 2000 Condition New Transport Package Nude Package Specification 4.5m Trademark Sinomada Origin China HS Code 8429521200 Production Capacity 50000pieces/Year

Product Description

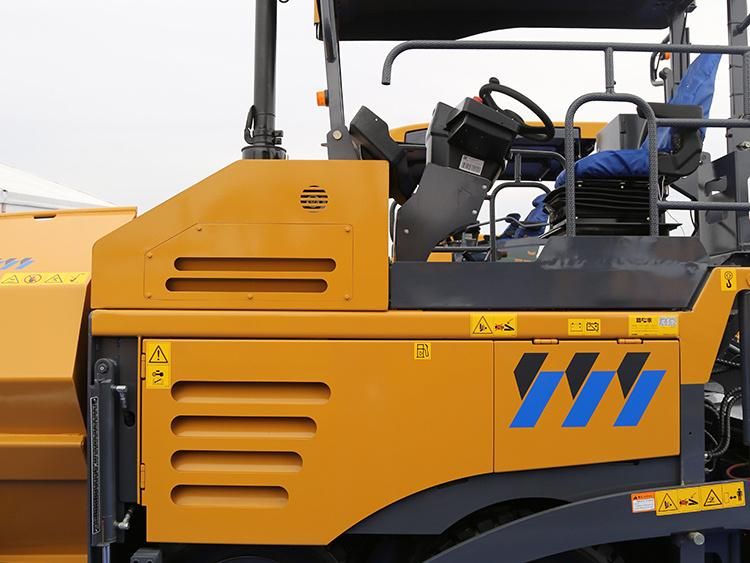

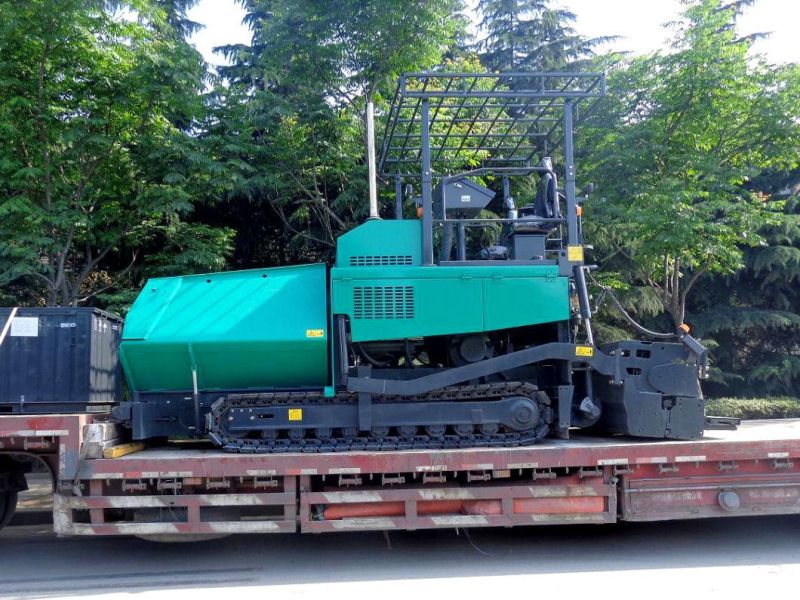

RP453L 4.5m Paving Width Concrete Aaver Machine for Sale



1.It adopts hydraulic drive, stepless speed change, high degree of automation, maneuverability, and simple and convenient operation.



2.Equipped with Shangchai water-cooled turbocharged diesel engine (73.5kW/2000rpm), with sufficient power reserve, good diesel atomization, good economy, low noise, long life, and wide application range.



3.The hydraulic system adopts load-sensitive control technology to make the power output efficient and energy-saving. The driving components are imported from Germany Rexroth to ensure the reliability of the system.

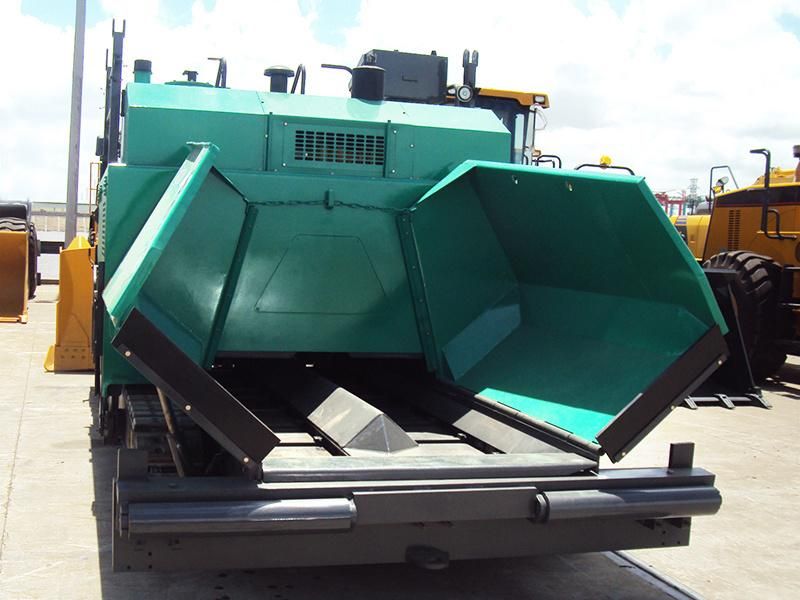

4.The 12t hopper is designed to be wide and can always store enough materials. The material receiving interface can adapt to different tonnage carts.



5.The hoppers on both sides can be folded separately, and the oscillating follow-up push wheel ensures stable discharge during asymmetric paving. Ensure the normal paving along the wall and other obstacles.

Item	Unit	Paratemer
Basic paving width	m	1.8-3.4
Maximum paving width	m	4.5
Maximum paving thickness	mm	260
Working speed	m/min	0~18
Travel speed	km/h	0~20
Theoretical productivity	t/h	240
Hopper capacity	t	12
Gradeability	%	≥20
Flatness (standard deviation)	mm	≤3
Diesel engine power	kW	73.5
Diesel engine speed	r/min	2000
Total Weight	t	11
