• Model NO.：FYL-S600C
• Vibration Control：Automatic Clutch
• Static Linear Load：53n,Cm
• Nominal Amplitude：0.5mm
• Vibration Frequency：70Hz
• Exciting Force：20kn
• Water Tank：20L
• Machine Type：Vibratory Roller
• Steel Drum Diameter：425mm
• Steel Drum Width：600mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：FURD
• Origin：Jining City, Shandong Province
• HS Code：84294019
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. FYL-S600C Vibration Control Automatic Clutch Static Linear Load 53n/Cm Nominal Amplitude 0.5mm Vibration Frequency 70Hz Exciting Force 20kn Water Tank 20L Machine Type Vibratory Roller Steel Drum Diameter 425mm Steel Drum Width 600mm Transport Package Wooden Case Specification CE Trademark FURD Origin Jining City, Shandong Province HS Code 84294019 Production Capacity 50, 000 PCS/Year

Product Description

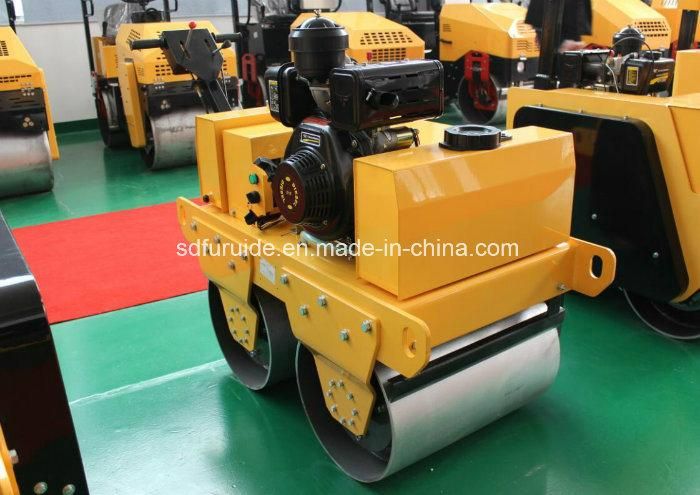

FURD double drum hand roller compactor, hand road roller (FYL-S600C)
FYL-S600C is 550kg diesel engine road roller, both drums drive and vibration. Therefore the machine is suitable for a wide range of soil and asphalt compaction applications. The radius of this roller is small, can work in small area, such as new construction and repairs of sidewalks, yards, residential streets, car parks, highways, airport, drive ways, children playgrounds, sports grounds as well as agricultural and forestry road construction.
SPECIFICATIONS

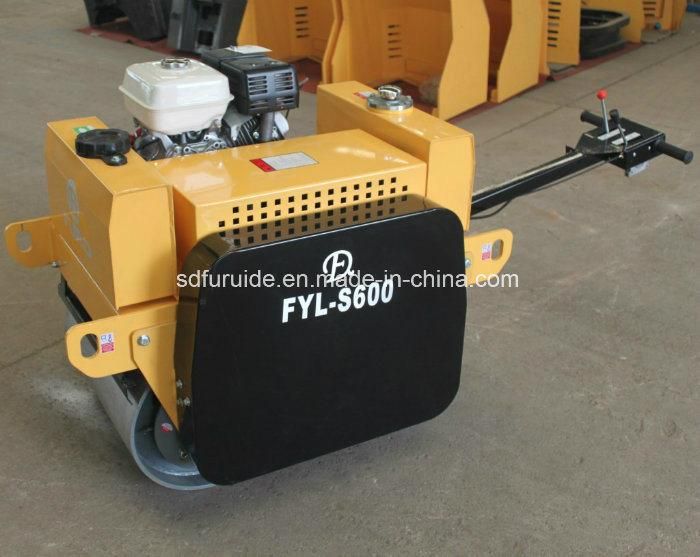

	FYL-S600	FYL-S600C
Walk Speed	0-4km/h	0-4km/h
Climbing Capacity	30%	30%
Drive	Hydraulic Station	Hydraulic Station
Vibration Control	Automatic Clutch	Automatic Clutch/ Electromagnetic Clutch
Static linear load	53N/cm	53N/cm
Nominal amplitude	0.5mm	0.5mm
Vibration frequency	70HZ	70HZ
Exciting force	20KN	20KN
Water tank	20L	20L
hydraulic oil tank	21L	21L
Engine Model	HONDA GX270	CF178F
Power	9.0HP	6.0HP
Steel Wheel Size	φ425X600X2	φ425X600X2
Package Size	1450X1100X1200	1450X1100X1200
Net Weight	550kg	550kg
Starting Mode	Hand	Hand/Electric

Main Features
1) Double drums driving and vibrating, the vibation force can reach 2 ton;

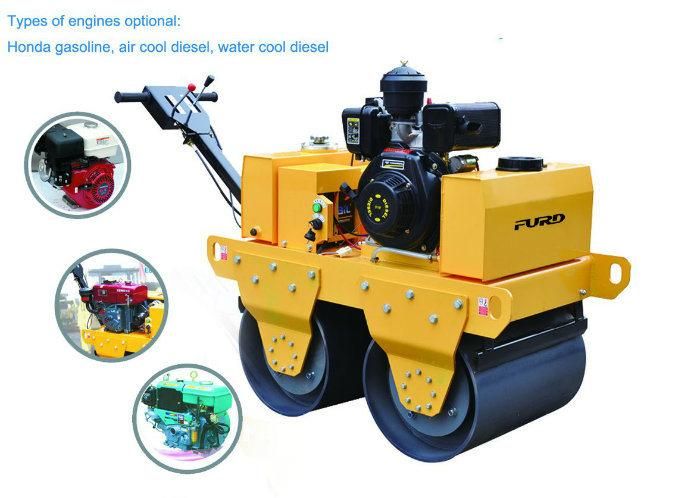

2) Adopts diesel engine with electric start or Honda Honda gasoline engine, easy to operate;
3) Operating radius is small, can work in small area;
4) Can adopts electromagnetic clutch, vibration control by button.
