Top Quality Thermoplastic Road Marking Machine Road Painting Machine
Jining Furuide Machinery Manufacturing Co., Ltd.- Type：Marking Vehicle
- Object：Asphalt Concrete Pavement
- Moving Type：Semi-Fixed
- Certification：ISO9001: 2000
- Condition：New
- Glass Beads Storage Box：10kg, Box
Base Info
- Model NO.：FHX-160
- Line Thickness Range：1-2.5mm
- Line Width：100,150,200,250,300mm
- Size：1260 X 880 X 1000mm
- Net Weight：110kg
- Transport Package：Plywood Case
- Trademark：FURD
- Origin：China
- HS Code：84791090
- Production Capacity：1000 PCS,Year
Description
Basic Info.
Model NO. FHX-160 Line Thickness Range 1-2.5mm Line Width 100/150/200/250/300mm Size 1260 X 880 X 1000mm Net Weight 110kg Transport Package Plywood Case Trademark FURD Origin China HS Code 84791090 Production Capacity 1000 PCS/YearProduct Description
Top Quality Thermoplastic Road Marking Machine Road Painting Machine (FHX-36)

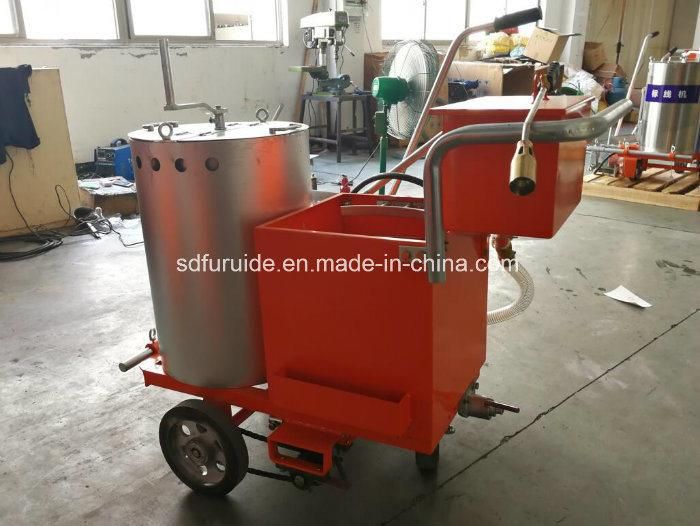

FHX-36 hand push hot melt marking machine adopts ordinary cast iron crossed bucket, synchronous clutch glass micro bead automatic spreader has the characteristics of simple structure, light weight, excellent price and excellent performance.
Thermoplastic Road Marking Machine Technical Parameter
| Model | FHX-36 |
| Marking Width | 100mm, 150mm, 200mm, 300mm, 400mm |
Spraying Volume | 100kg/ time |
| Spraying Thickness | 1.0~3.0mm |
| Spraying Speed | 1.5km/h |
| Heating Temperature | 180ºC~ 210ºC |
| Heating Mode | Liquefied Gas |
| Weight | 135kg |
| Model | FHX-T1200 |
| Outer Dimensions | 1900×1680×1630mm |
| Capacity (melted paint) | 2×600kg |
| Drive Type | Hydraulic |
| Engine | 15HP Diesel Engine |
| Stove Material | Alloy |
| Fuel | Liquefied Gas |

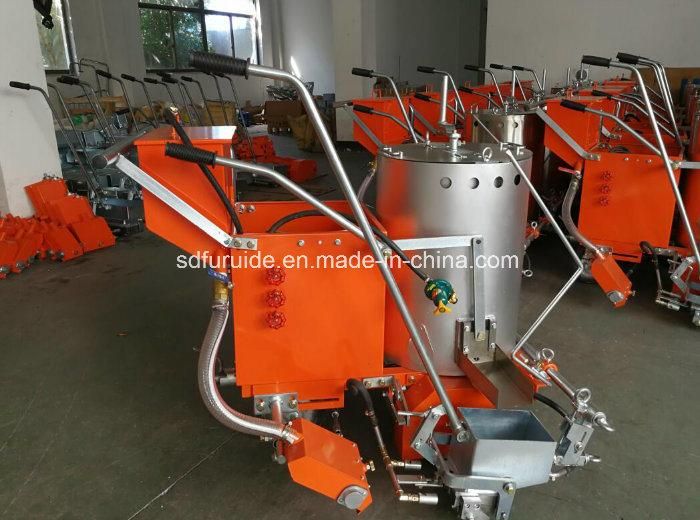

Product Photos

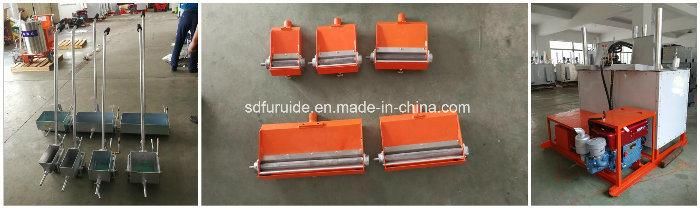

Different sizes of marking hopper:
50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm stripes.

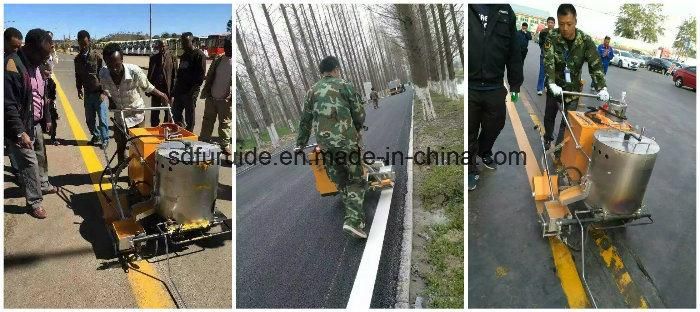

Road marking machine in job site
