• Model NO.：SAWE15
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Tank Capacity：135 L
• Hood Height：2430
• Digging Capacity of Bucket：60 Kn
• Displacement：4.5 L
• Min.Turning Radius：6500 mm
• Min.Ground Clearance：359 mm
• Wheelbase：2800 mm
• Track Gauge：1920 mm
• Transport Package：Sea Worthy Packing
• Specification：CE
• Trademark：Super-above
• Origin：Shanghai
• HS Code：8429521200
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. SAWE15 Transmission Hydraulic Transmission Drive Type Internal Combustion Drive Bucket Capacity 1.0~1.5m³ Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Tank Capacity 135 L Hood Height 2430 Digging Capacity of Bucket 60 Kn Displacement 4.5 L Min.Turning Radius 6500 mm Min.Ground Clearance 359 mm Wheelbase 2800 mm Track Gauge 1920 mm Transport Package Sea Worthy Packing Specification CE Trademark Super-above Origin Shanghai HS Code 8429521200 Production Capacity 1000PCS/Year

Product Description

PRODUCT  DESCRIPTION

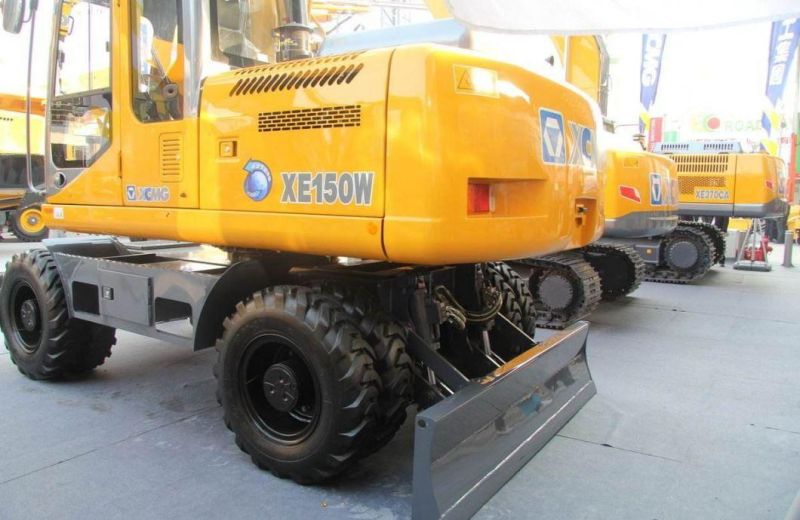

15 ton 0.5cbm XE150WB new hydraulic wheel excavator This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump
and especially considered the matching between the engine and the low-speed load to make full use of the engine power,
improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can
be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.

As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and
Euro-III emission standards, this machine can be provided with optional one-section/two-section boom working mechanisms
and multi-functional implements, able to be widely used in municipal construction, highway bridges, housing construction,
road engineering, construction of water conservancy works, new rural construction, general construction projects and other
small and medium earthwork projects.


hydraulic wheel excavator machine specifications

Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2x160
The pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Slewing speed	r/min	13.7
Digging capacity of bucket	KN	60
Digging capacity of bucket rod	KN	65
Min.turning radius	mm	6500
Travel speed	Km/h
Gradient capability	%	70
A Total length	mm	6482
B Total width	mm	2552
C Total heigth	mm	3158
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	359
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
Hood height	mm	2430
The maximum digging depth of dozer	mm	112

FEATURES
Engine:
The imported Isuzu engine with original packing has more forceful power and low fuel consumption. The optimized match of
system guarantees that the overall performance gives full play to the full unit.

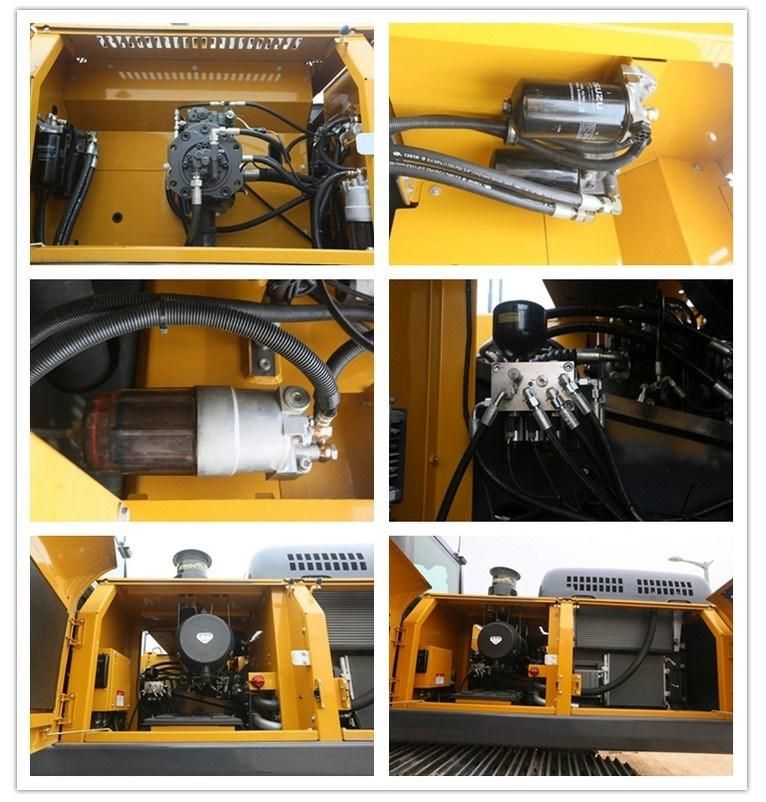

Hydraulic system:
The imported hydraulic parts with high-level configuration are of the rational and high-quality match and excellent performance.

Up-to-date fuel filter:
By the use of an up-to-date fuel filter, the filtration performance has been improved, the oil-taking quality guaranteed and the
operation reliability of engine under severe operation conditions enhanced.

Protection against shocks
By use of an liquid sealed shockproof rubber, the oscillation and noise in cab have been further reduced and the fatigue of
operating personnel relieved. The application of a high-strength enclosed structure increases the strength and rigidity of the
whole cab.

Large cab space
The indoor space of new luxury cab has been enlarged for 360 ° view, which can build up a pleasant working environment for
the operator.
Seat
The seat designed on the basis of ergonomics concept considerably enhances the comfortable sensation. The suspension
bag can adjust the height of seat according to the weight adjustment, making the operation more comfort.
