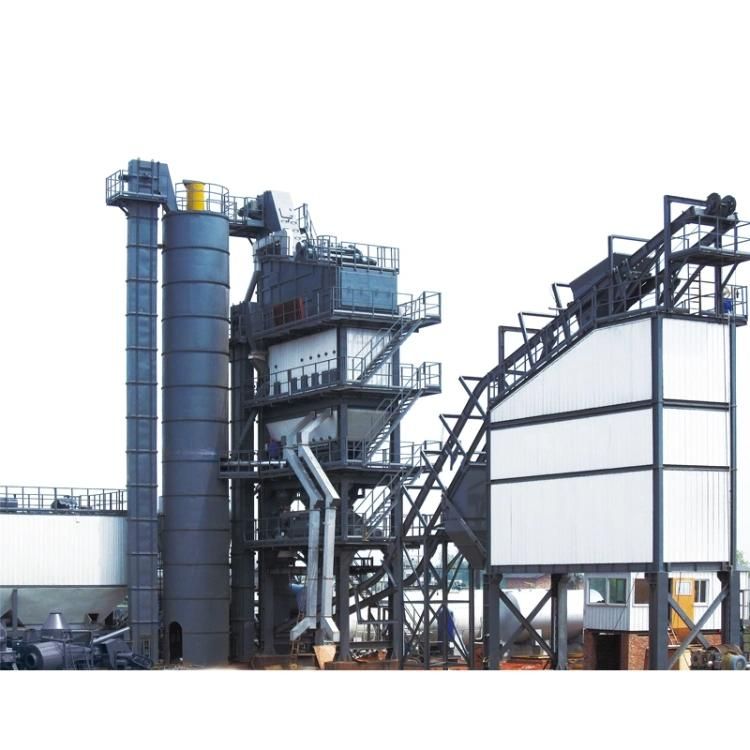

• Model NO.：Asphalt Mixing Plant
• Mixing Method：Continuous Drum
• Automatic Grade：Automatic
• Product Capacity：40～400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• After-Sales Service Provided：Engineers Available
• Heat Conduction Oil Stove：500, 000 Kcol,H
• Emission Standard：50mg,Nm3
• Fuel Oil：5.5-7 Kg,T
• Mixing Cycle：45s
• Transport Package：Sea Worthy Packing
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474310000
• Production Capacity：5000PC,Year

NameTechnical ParametersModelYLB800YLB1000YLB1500YLB2000Rated Production Capacity48-60t/h60-80t/h90-120t/h120-160t/hVolume of Cold Aggregate Bin8m³×48m³×48m³×410m³×5Dust RemovalReverse Air Bag CleaningFuel VarietiesDiesel, Heavy Oil, Natural GasVolume of Hot Aggregate Bin10 m³10 m³15 m³15 m³Volume of Pulverized Mineral Bin30t/130t/230t/230t/2Aggregate Measuring Accuracy< ±1.5%< ±1%Pulverized Mineral Measuring Accuracy< ±1.5%< ±1%Bitumen Measuring Accuracy< ±0.5%Mixing Capacity (kg/batch)800100015002000Volume of Bitumen Storage Tank40m³ /130m³ /230m³ /230m³ /2Number of Mobile Units8111111Trailing Speed< 40km/hInstallation Power (kw)235284382475Control SystemFully Automatic Computer Control (PLC+ LCD display+ mouse)
mobile drum asphalt batching plant charactresticsDrying System1. The system uses four world-renowned shaft-mounted motor reducers to easily and freely drive dry drums.
2. The optimized lifting blades provide more uniform heating and high heat utilization ratio.
3. The external roller of thermal insulation materials and coat of stainless steel effectively avoid heat loss.
4. The drive drums and imported bearings undergoing careful calculation and heat treatment act long service life and reliable operation.
5. The patented new drying drums reduce energy consumption by 20% compared with the original ones.Oil/Gas BurnerNZGOB burners are the new-generation axial flow oil/gas burners that play a leading role in NFLG's burners and are developed jointly by China and Europe. These burners use the special burner simulation analysis conducted by the European organization for thermal energy technology research, integrates the advanced European technologies, and takes advantages of the best burner model patent with the principle of low emissions for environmental protection and calorific value as the core. These burners with excellent and stable quality are highly praised by customers around the world and therefore they can be used as the ideal accessory products for asphalt batching plant.Dust Collection System1. The two-stage dust collection meets European emission standards.
2. Rotary reverse blowing is used for energy conservation and high efficiency.
3. The key fittings are reliable and durable.
4. Safe protection and intelligent detection are provided.Mixing System1. The system uses the simulated and optimized material mixing speed technology.
2. The system ensures that materials in each mixer are homogeneously mixed to increase the mixing efficiency by 25% while reducing energy consumption by 20%.
3. The system uses the original wear-resistant parts imported from Sweden which rank first in the world.Intelligent Control SystemThe remote service platform developed by NFLG based on the automation, industrial control, drive and industrial information technologies as well as service experience in the software provides customers with a full solution, from manufcature, management and future services.
