• Model NO.：Concrete Batching Plant
• Structure：Spiral Type
• Productivity：60m²,h
• Feeding Height：1370mm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Air Compressor：3kw
• Electromagnetism Valve：1
• Drawbar Pin：1
• Batching Control Meter：Made in China
• Circuit Breaker：Delixi
• Connecting Cable and Accessories：Made in China
• Cement Silo：50t
• Cement Screw：φ219*8
• Hoisting Mixer System：Discharge Height 1.7m
• Aggregate Hoisting and Measuring System：Made in China
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474310000
• Production Capacity：5000PC,Year

 HZS180Theory Productivity(m3/h)180Standard Discharging Height(m)4.2Mix Cycle Time(s)60Measurement(m)53*25*21Total Power(KW)275Mixer ModelJS3000Batching Machine ModelPLD4800 Pneumatic Independent WeighingBelt Width mm1000Belt Machine Power kW45Feeding MethodBelt ConveyorWeighing AccuracyAggregate≤2Cement and Ash Coal≤1Water≤1Additive≤1Screw Conveyor ModelLSY325 Italy TechnologySilo60T /100T / 200T Detachable SiloControl SystemCentralized Control

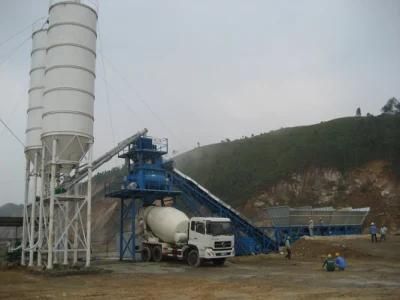

Configurations Of The HZS180 Concrete Batching Plant
HZS180 Concrete Batching Plant includes: Mixer,Batcher,Weighing System,Centralized Control System,Screw Conveyor and Cement Silos,etc.
Main Features
1. High efficient double shaft concrete mixer.
2. Independent accurate weighing system.
3. environmentally friendly performing.
4. High efficient, reliable working performance.

Plant-gear speed reducer,transmission more steadier
Special steel material,streamlined design,improve the mixing effciency.High-quality pneumatic components,to achieve a better sealing effect.
Advanced hydraulic drive,manual dual mode,safe and reliable.Universal joint between two gear reducer of to ensure the two set of mixer
synchronous operation.

Batching system.
PL Series Concrete Batching Plant The automatic dosing equipment for the concrete mixing equipment of the concrete mixing plant can
automatically complete the batching procedures of materials such as sand, stone and cement according to the requirements of the concrete
proportioning. The series is suitable for different workplaces.

Aggregate conveyors.
Efficient motor, energy saving and environmental protection. High wear-resistant diamond-shaped plastic, carrying capacity, smooth transmission,
long service life. Dedicated hanging gear box (carrying capacity is high, stable operation). The overall design, high precision, easy installation
and maintenance

Screw conveyors.
Efficient conveying:Special structure makes it even and fast to convey cement and other partials.Arbitrary placing:the conveyor can be
horizontally placed and dip angled,and it can directly connect mixer and silos,making it easy to disassemble and remove.unique lubricating
and sealing.Multi-connection:universal jointed,anti-water bag jointed,flange jointed or butterfly valve jointed.
