Zl20 Mini EPA Front Dumper Wheel Loader with Backhoe Loader
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：WL200
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Rated Bucket Capacity：0.9-1.2 Cubic Meter
- Rated Power：70 Kw
- Tyre：16,70-20
- Max.Dump Height：3000 mm
- Operation Weight：5500kg
- Load：2500 Kg
- Bucket Indicator：Yes
- Dump Distance：1084 mm
- Total Time：11.3s
- Engine Model：Changchai 4G33
- Rated Speed：2400 R,Min
- Normal Fuel Consumption：242g,Kw.H
- Total Displacement：4.4L
- Max.Torque：261.7n.M
- Transmission Type：Full-Powershift, Countershaft Type
- Transport Package：1 Set,20gp Container, 3 Sets,40hq Conatiner.
- Specification：LxWxH(mm) 6130x1920x2820
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
- Package size per unit product：611.00cm * 205.00cm * 263.00cm
- Gross weight per unit product：5500.000kg
Description
SpecificationOverall weight(kg) 5500 L×W×H(mm) 5960x1920x2820 Rated bucket capacity(m3) 0.9-1.2 Rated load(kg) 2500 Max. dump height (mm) 3000 Bucket indicator Yes Dump distance(mm) 1084 Total time 11.3s Engine Model Changchai 4G33 Type Vertical, In-line , Water cooling, four-stroke diesel engine Rated power(kw) 70KW Rated speed(r/min) 2400 Normal fuel consumption 242g/kw.h Total displacement 4.4L Max.torque 261.7N.m Transmission system Model of torque converter YJ280 pattern 3-element single stage Transmission type Full-powershift, countershaft type Gear shift 2 gears ahead,2 gear astern Max. travel speed 24km/h Hydraulic system Working pressure 16Mpa Implement pump CBF25 System working pressure 16MPA Distribution device model DF20.2C Steering system Type Articulated and hydraulic steering Min turning radius(mm) 4500 Max. turning angle 35°±1 Tires Standard tires 16/70-20 Standard bucket Width (mm) 2200

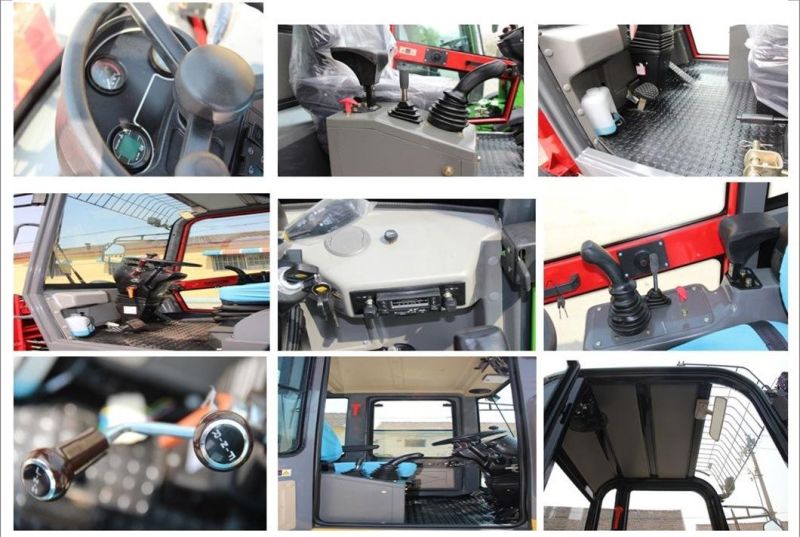

Detailed pictures about WL200 wheel loader

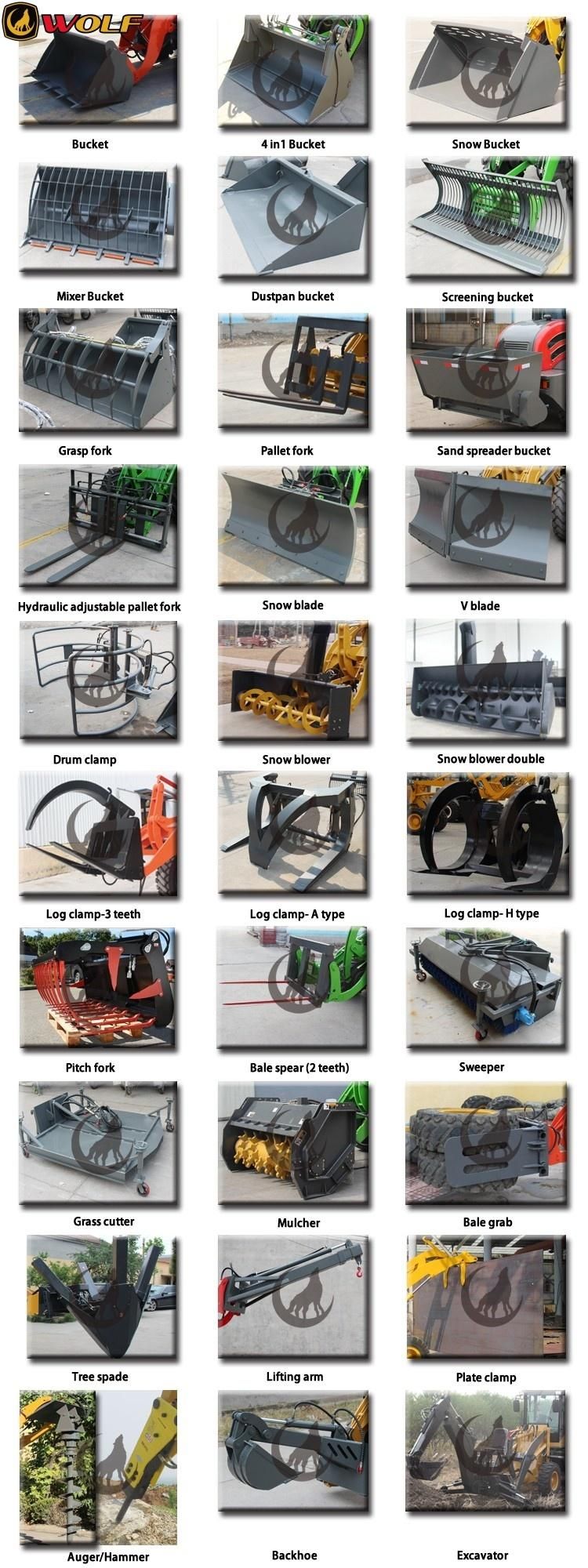

Optional Attachments about WL200, she can do different jobs for you.
2.Products Categories
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
8.What is our competitive?
WOLF is the sponsor of small and medium construction machinery application program. We can do engineering or agricultural solutions based on customer needs. We have more than 15 years' experience in mechanical design, more than 10 years of sales experience, we provide solutions for 30 industries worldwide.
WOLF customized the attachments for dairy farms as to help them solve the era of human handling of feed;
WOLF's mulcher equipment for the Republic of Namibia has increased the efficiency of their country's agricultural productivity by 5%
WOLF's compactors for Australia are completely independent intellectual property. Our compactors have excellent closer compaction and higher efficiency that providing solutions to infrastructure in Australia and New Zealand.
WOLF has designed a bridge oscillatory roller for Indonesia, which is more suitable for compacting and repairing of bridge surface asphalt pavement which is unfit to compact by vibratory roller. It can compact the asphalt and the bridge will not be damaged.
WOLF's skid steer loaders for Argentina solve the problem of fast moving loading.
Wolf customized the auger according to user's geology and the diameter of the hole to be drilled as to be used in any type of land, and its efficiency is also very high.
The attachments provided by WOLF are completely versatile for the tractor and the wheel loader which solved the problem that only can be used in one attachment, which is a great innovation in this industry.
9,Our slogan
QUALITY WITHOUT COMPROMISE
