CE Approved Construction Machinery Zl50 Front Wheel Loader
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：wl 500
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Rated Bucket Capacity：3cubic Meter
- Rated Power：162 Kw
- Tyre：23.5-25
- Max.Dump Height：3150 mm
- Operation Weight：17100kg
- Maximum Tractive Force：152 Kn
- Maximum Breakout Force：≥170kn
- Maximum Grade Ability：30°
- Maximum Dump Reach：1250mm
- Minimum Turning Radius：6640 mm
- Engine Maximum Torque：860n.M
- Min Fuel-Consume Ratio：≤215g,Kw.H
- Gearbox Mode：Planetary
- Gear Shift：2 Forward Shift 1reverse Shift
- Maximum Speed：38km,H
- Transport Package：1 Set,20gp Container, 3 Sets,40hq Conatiner.
- Specification：LxWxH(mm) 7920x3050x3400
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
- Package size per unit product：808.00cm * 285.00cm * 345.00cm
- Gross weight per unit product：17100.000kg
Description
PerformanceRated load 5000kg Overall weight 17100kg Rated bucket capacity 3m3 Maximum tractive force 152KN Maximum breakout force ≥170KN Maximum grade ability 30° Maximum dump height 3150mm Maximum dump reach 1250mm Overall dimension (L×W×H) 7920×3050×3400mm Minimum turning radius 6640mm Engine Model Weichai WD10G220E22
Shangchai SC11CB220G2B1
Cummins 6CTA8.3-C215 Type lnline water cooling dry cylinder injection No. of cylinder-bore/stroke 6-126×130mm Rated power 162kw--2200r/min Maximum torque 860N.m Min fuel-consume ratio ≤215g/kw.h Transmission system Torque converter YJ375 Gearbox mode Planetary Gear shift 2 forward shift 1reverse shift Maximum speed 38km/h Drive axles Main reducing spiral bevel gear grade 1reduction Decelerating mode planetary reduction,grade 1 Wheel base (mm) 3200mm Wheel tread 2250mm Minimum ground clearance 450mm Hydraulic system System working pressure 18MPa Boom lifting time 5.95±0.2s Total time 10.95±0.5s Fuel tank capacity 300L Function of leveling automatically yes
Brake systemService brake air over hydraulic disc brake on 4 wheels Parking brake manual parking brake Tyre Type specification 23.5-25 Front tyre pressure 0.4Mpa Rear tyre pressure 0.35Mpa

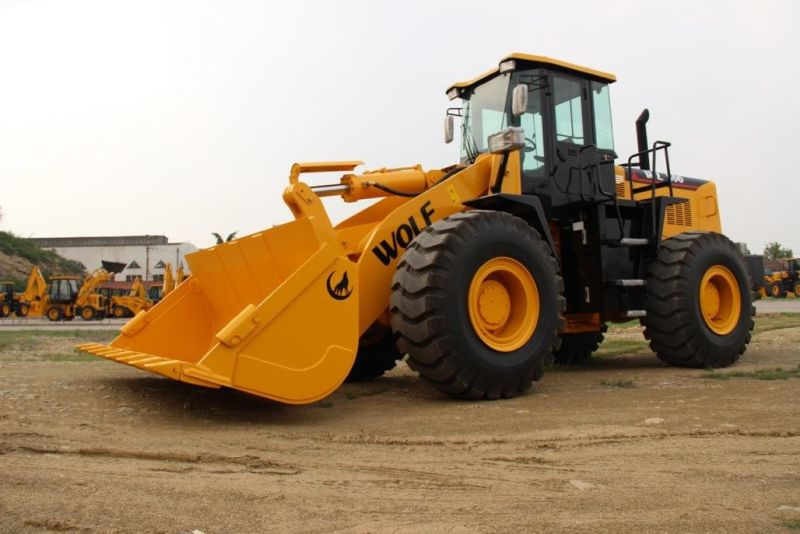

Detailed pictures about WL500 wheel loader
2.Products Categories
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
8.Our slogan
QUALITY WITHOUT COMPROMISE
