• Model NO.：HQ920T
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Loading Weight：2000kg
• Engine：Euro 5 or Cummins or Perkins
• Power：65kw
• Lift Height：5.68m
• Length：6000mm
• Width：2050mm
• Height：2760mm
• Transport Package：2 Units in a Hq40 Container
• Specification：CE, ISO, SGS, ROPS & FORPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：8000 Units , Year

Basic Info.

Model NO. HQ920T Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Loading Weight 2000kg Engine Euro 5 or Cummins or Perkins Power 65kw Lift Height 5.68m Length 6000mm Width 2050mm Height 2760mm Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS & FORPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

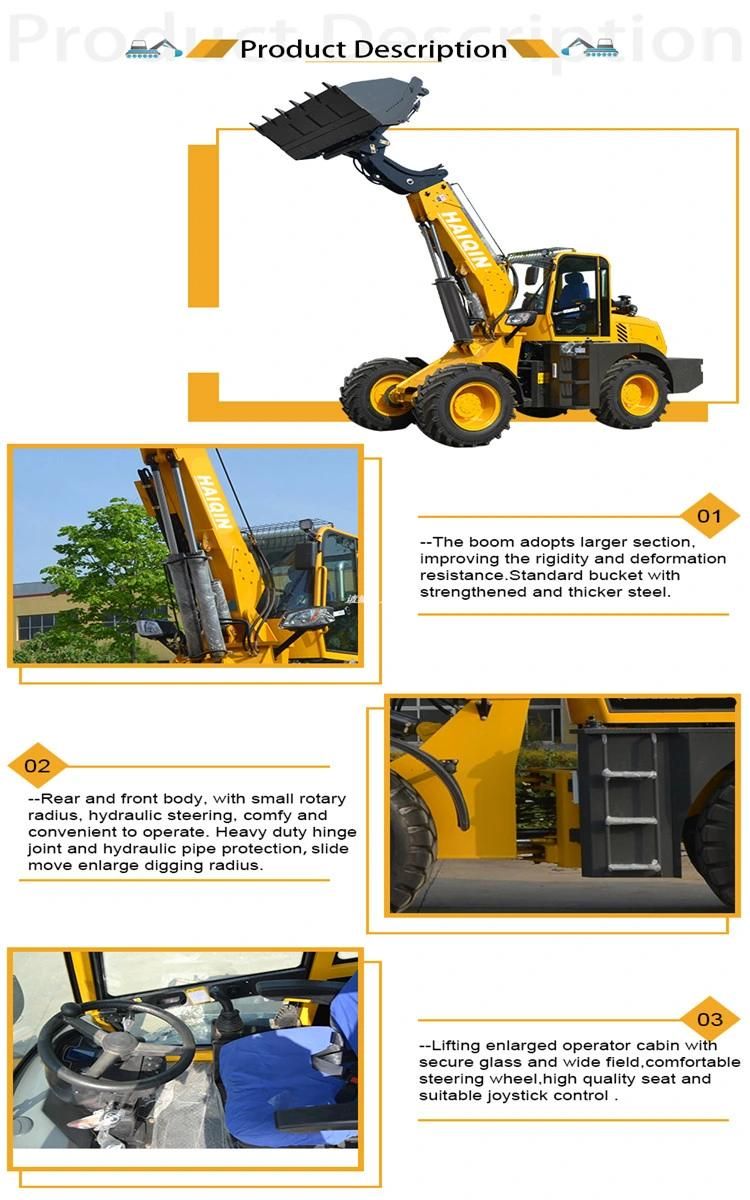

Product Description

Strong Telescopic Wheel Loader (HQ920T) with 2.0 Ton Lift Capacity





1, Details Specifications of HQ920T Telescopic wheel Loader

1.0 Engine Details
(1) Model:  Standard China YUNNEI engine ; Euro 5 or  Cummins or EPA 4 engine for option
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 65KW
(4) Rated Speed: 2400 r/p. Min (rpm)

2.0 Transmission System:Hydraulic converter + drive shaft + Big reduction axles

3.0 Bucket
(1) Bucket Capacity: 1.1 m3
(2) Bucket width: 2000mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 6000mm
(2) Overall Height: 2750mm
(3) Overall Width: 2050mm
(4) Max. Lifting Height: 5680mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering

6.0 Brake System

(1) Service Brake: Disc brake

(2) Parking Brake: Hand operated

7.0 Tyre Model: 16/70-20 .
8.0 Wheelbase: 2500mm
9.0 Track: 1600mm
10. System pressure: 20Mpa; Hydraulic output: 96L/min
11. Operation weight :5700kg

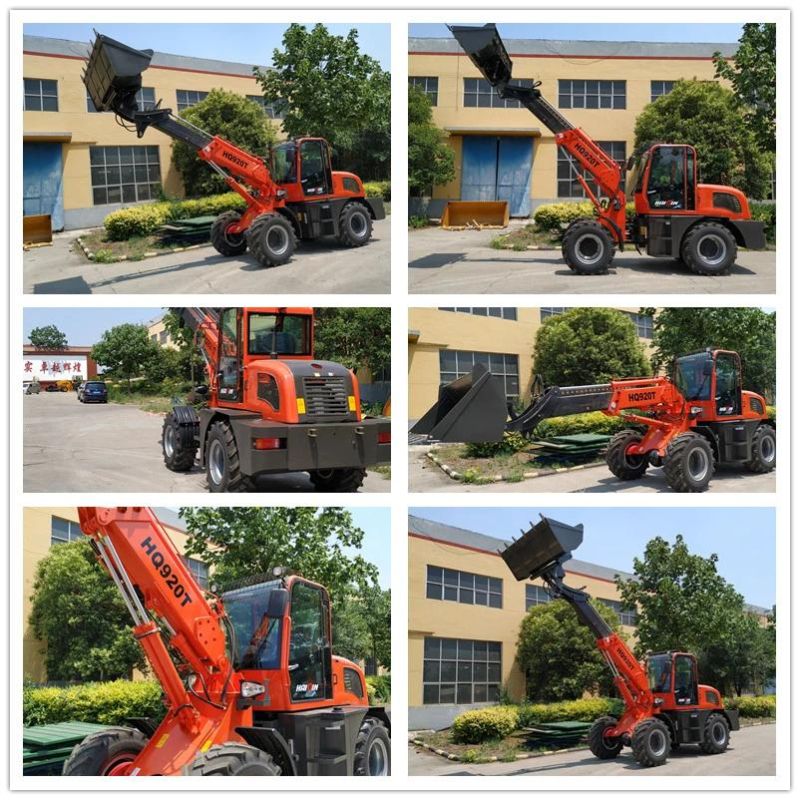

2, Details Photos of HQ920T Telescopic Wheel Loader

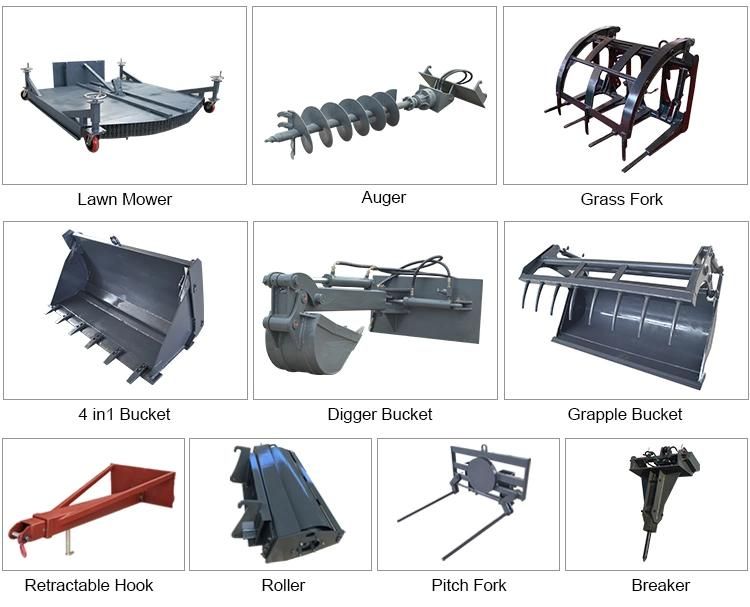

3, Optional Attachments for HQ920T Telescopic Wheel Loader

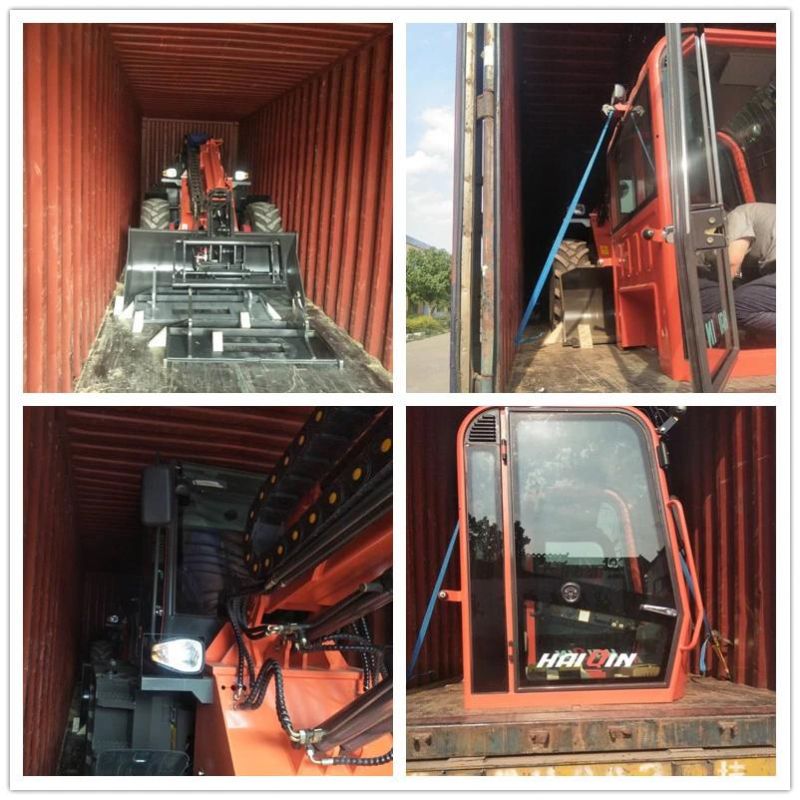

4, Professional Loading and Packing of HQ920T Telescopic Wheel Loader

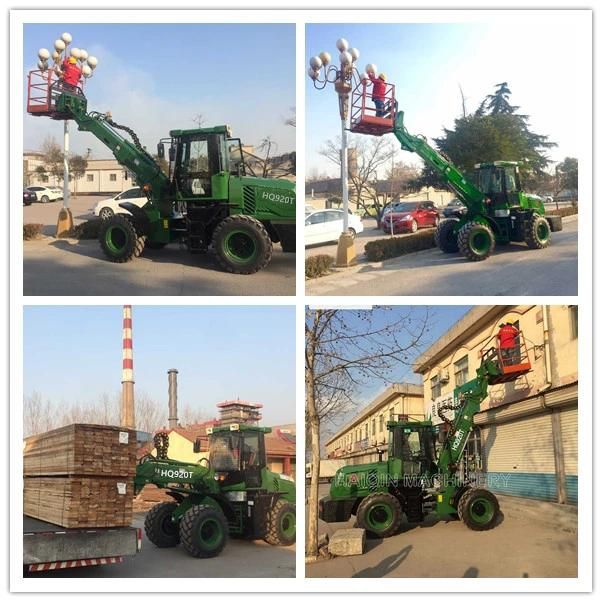

5, Working Case of Haiqin's Telescopic Loaders.



6, Factory introduction of Haiqin Machinery

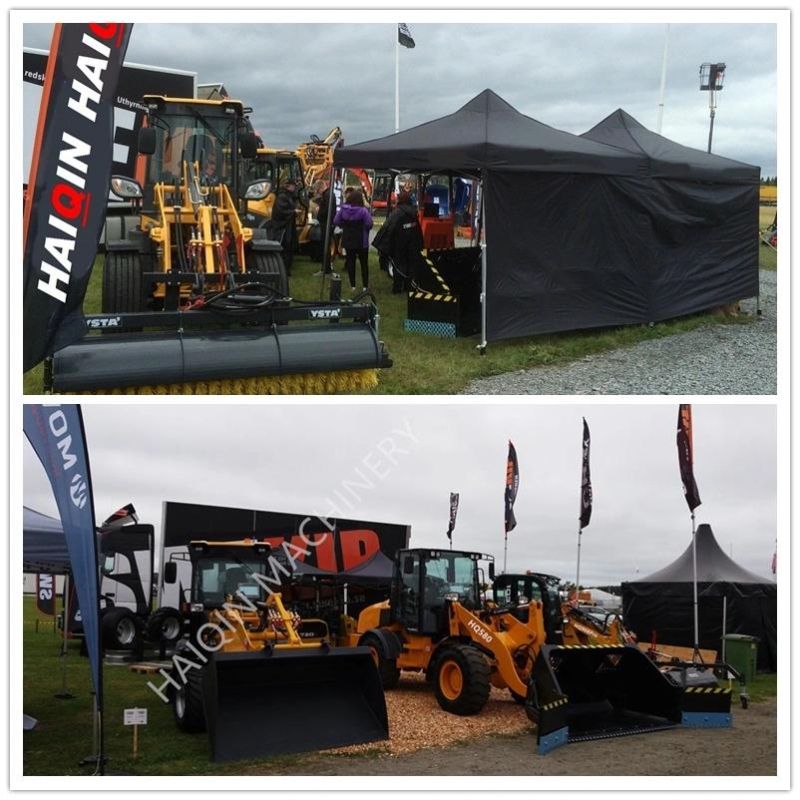

7,HaiQin Machinery Participating in foreign Machinery Exhibitions

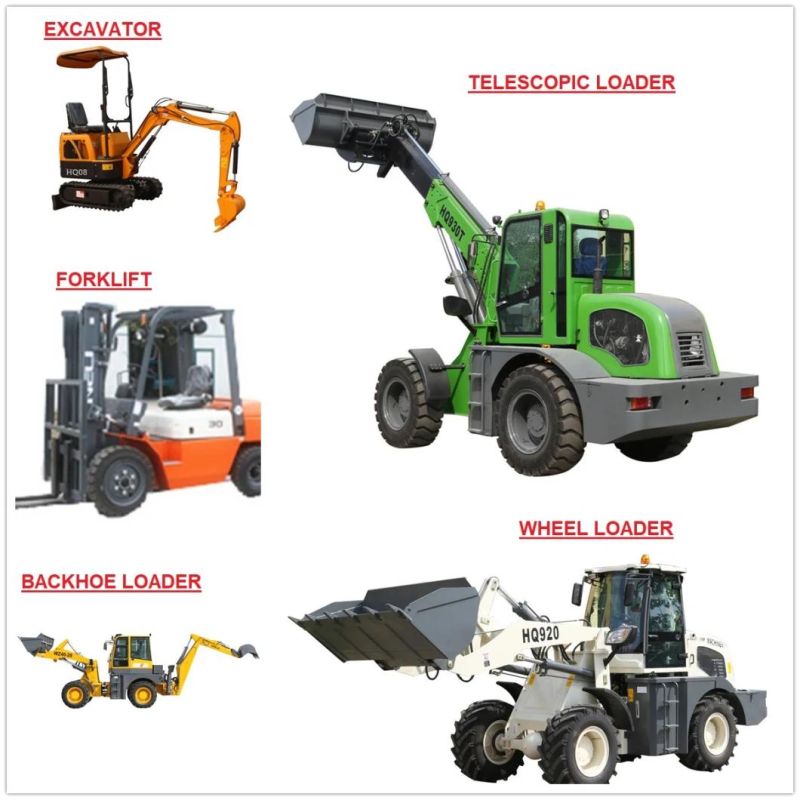

8, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY



9,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
