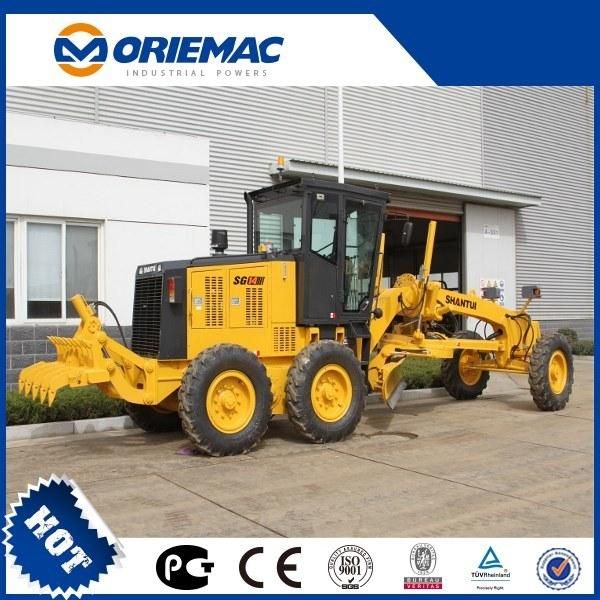

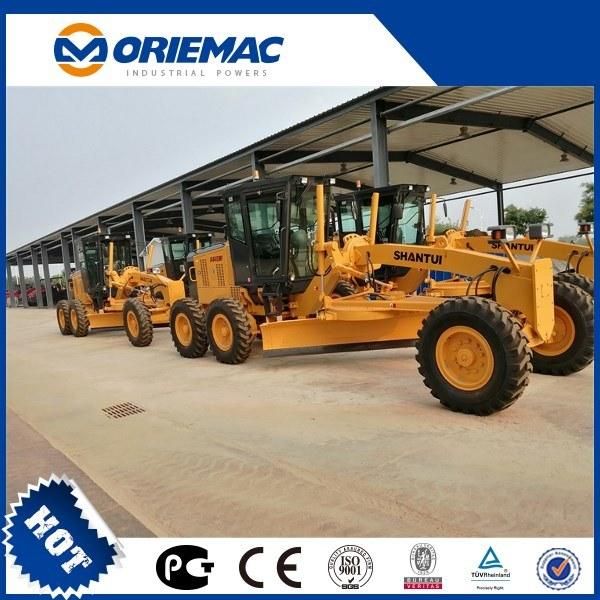

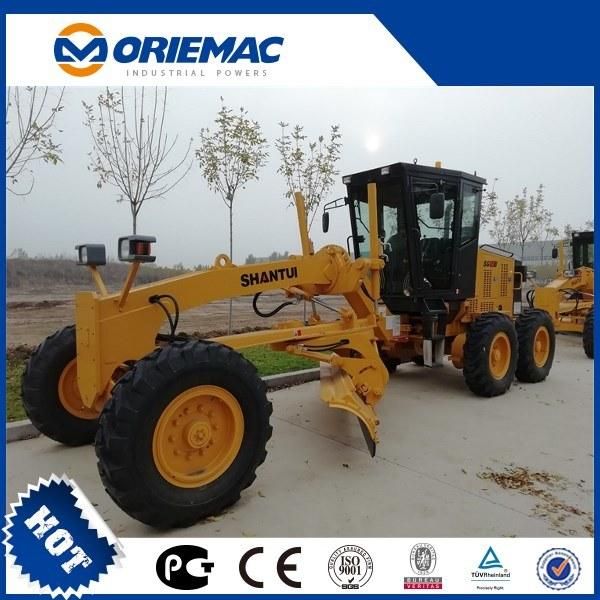

Shantui Mini 140HP 11ton Motor Grader Sg14-3 with Ripper
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：SG14-3
- Walking Mode：Wheeled
- Type：Small Grader
- Product Name：Shantui Mini Motor Grader
- Engine Model：Dcec Cumins 6btaa5.9-C160
- Minimum Turning Radius(mm)：6600mm
- Operating Weight(Kg)：11600kg
- Blade Width(mm)：3600
- Transport Package：Nude Packing
- Specification：8036*2380*3240mm
- Trademark：shantui
- Origin：China
- HS Code：84292090
- Production Capacity：100 Units,Month
Description
Engine modelDCEC CUMINS 6BTAA5.9-C160 Rated power(kw/rpm) 112/2200 Travel speed(km/h) Forward1 0-5.4 Forward2 0-8.3 Forward3 0-13.2 Forward4 0-20.6 Forward5 0-29.6 Forward6 0-44 Reverse1 0-5 Reverse2 0-13.2 Reverse3 0-29.6 Dimensions(L*W*H)(mm) 8036*2380*3240 Minimum turning radius(mm) 6600 Wheel base(mm) 5802 Grade ability (°) 20 Max.traction(kN) 86 Max.cutting depth(mm) 500 Operating weight(kg) 11600 Blade width(mm) 3660 Blade height(mm) 610 Blade rotational angle(°) 360 Max.lifting height(mm) 460 Blade cutting angle adjustmant Range(°) 30-68 Min.ground clearance(mm) 430 Working hydraulic system pressure(MPa) 16 Brake system pressure(MPa) 10
