Made in China Directly Factory 2.5t Wz30-25 Cheap Hydraulic Backhoe
Qingdao Zongjin Engineering Machinery Co., Ltd.- Certification：TUV, ISO, CE, Rops & Fops
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：WZ30-25
- Type：Small Loader
- Loading Lifting Capacity：2500kg
- Bucket Capacity：1.0 Cubic Meter
- Bucket Dumping Height：2795
- Max Digging Depth：4080mm
- Backhoe Capacity：0.3 Cubic Meter
- Engine Model：Cummins 4BTA3.9-C100 Ytr4108g60-1
- Min. Fuel Consumption：245g,Kw.H 216 G,Kw.H
- Tyre Model：16,70-20
- Overall Operating Weight：7600 Kg
- Wheel Base：2250 mm
- Gear Box Type：Fixed Shaft Power Transmission
- Max.Speed：22km,H
- Digging Power of Excavator Grab：46.5kn
- Engine Displacement：4.5L 4.4L
- Steering System Type：Articulated Hydraulic Steering
- Transport Package：1 Set,40hq, 2 Sets,40hq+20gp, 3 Sets,2X40hq
- Specification：LxWxH(mm)5910x2268x3760
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
Description
Overall DimensionLength X Width X Height 5910X 2268 X 3760(mm) Wheel base 2250(mm) Track 1640(mm) Min. ground clearance 300(mm) Main Technical Specification System pressure
load hydraulic system 18Mpa Dig hydraulic system 20Mpa Steering hydraulic system 12Mpa System flow 120L/min Four-wheel drive whole hydraulic system Total operating weight 7600kg Maximum speed 22Km/h Maximum gradient capacity 30° Loading bucket capacity 1m3 Rated loading 2500KG Maximum articulated height of bucket 3400(mm) Bucket discharge height 2795(mm) Bucket discharge distance 1048(mm) Loading lift capacity 25KN Bucket hydraulic translation function yes Bucket lift time 6.8s Bucket lower time 2.5s Bucket discharge time 1.2s Maximum tractive force 39KN Maximum breakout force 38KN Backacter bucket capacity 0.3m3 Backacter discharge height 3878(mm) Maximum digging depth 4080(mm) Maximum digging radius 5688(mm) Bucket slewing angle 190° Bucket digging capacity 46KN Bucket stick digging capacity 31KN Diesel engine Model CUMMINS 4BTA3.9-C100
YTR4108G60-1 Type turbocharging four-stroke Rated power 74KW/100HP
55KW/74HP Rated speed 2200 r/min
2400 r/min Cylinder -internal diameter 4-110 4-108 Maximum torque 310NM 261.7N.M/1800R/MIN Minimum fuel consumption 245g/kw.h
216 g/kw.h Displacement 4.5L
4.4L Transmission system Model of hydraulic pump fixed shaft power shift transmission Gear shift 2forward shift 2 reverse shift Torque YJ-280 Drive pump CDXaf3016-IL Flow 16ml/r Work pump CBGj2063 Flow 63ml/r Steering system Type articulated hydraulic steering Model of steering control valve BZZ5-250 Model of turning control valve YSF25S-00 Steering angle 36±1°left or right 36±1° Minimum turning radius 5018(mm) Axles Main transmission type single reduction Wheel reduction type wheel reduction Wheel Tire size 16/70-20 Front wheel pressure 0.22Mpa Rear wheel pressure 0.20Mpa Service braking air over hydraulic disc on 4 wheels Parking brake manual parking brake Refill Capacity Fuel tank 70L Transmission 25L Front axle 9KG Rear axle 9KG Hydraulic tank 140L

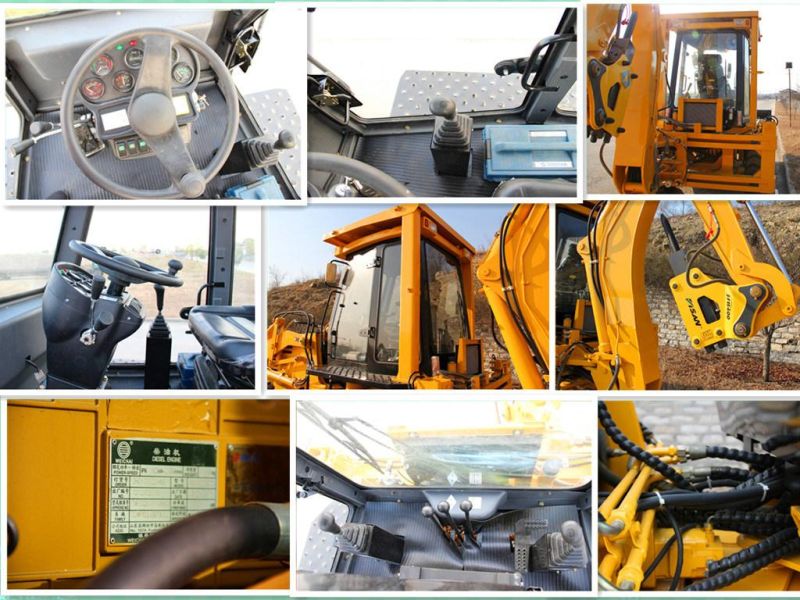

Detailed pictures about WZ30-25 Backhoe Loader
2.Products Categories
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
