• Model NO.：Xrs1050
• Power Source：Diesel
• Motor Power：298kw
• Noise：Without Noise
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Max Drilling Diameter：2500mm
• Max Drilling Depth：105m
• Application：Construction Work
• Advantage：Long Life Time
• After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
• Engine：Cummins 641kw
• Work Pressure：35MPa
• Max Torque：390kn.M
• Rotational Speed：7-18 R,Min
• Slewing Angle：360
• Dimension：10265X4800X27520mm
• Certificate：Ce ISO TUV
• Transport Package：Nude Packing
• Specification：108T
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8430509000
• Production Capacity：10000PC,Year

DescriptionUnitParameter valueMax. drilling diametermm2500Max. drilling depthm105Allowable luffing scope (from center of   drill rod to slewing center)mm4350~4650Drilling rig dimension in working condition (L × W × H)mm10265×4800×27520Drilling rig dimension in transport condition (L × W × H)mm10265×4800×27520Weight of overall unit (standard configuration, excluding drilling tool)t108EngineModel CUMMINS  QSX11-C400Rated power/speedkW298/(2100r/min)Max. working pressure of hydraulic systemMpa35Rotary driveMax. torquekN •m390Rotational speedr/min7~18Crowd  cylinderMax. Pushing forcekN240Max. Pulling forcekN320Max.strokemm6000Main winchMax.pulling forcekN400Max. single-rope speedm/min60Diameter of the steel wire ropemm40Drilling mastLeft/right inclination of mast°4/4Front/back inclination of mast°5/15Rotary table slewing angle°360CrawlerWidth of crawler platemm800External width of crawler (min.-max.)mm3500~4800Center distance between two longitudinal wheels of crawlermm5600Average ground pressurekPa120.7

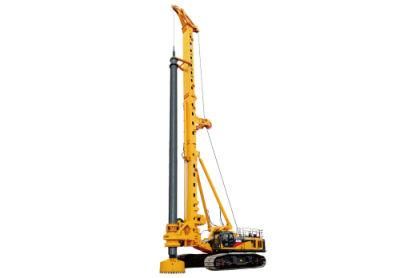

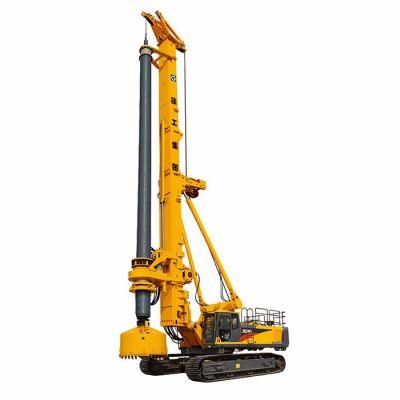

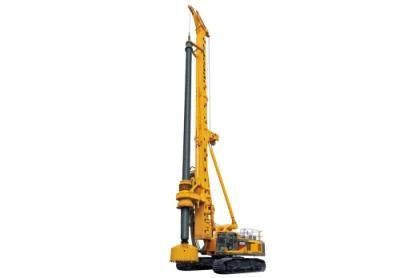

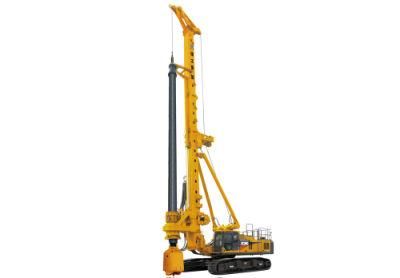

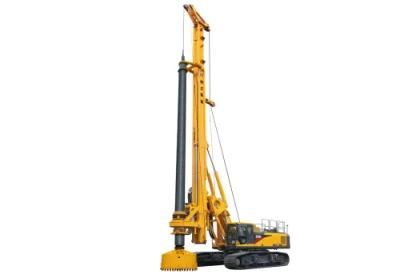

Details Photo:



Transportation:
