Top Brand Core Drilling Rig Xr800e
Shanghai Super-Above Industry Holdings Co., Ltd.- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
Base Info
- Model NO.：XR800E
- Power Source：Diesel
- Motor Power：641kw
- Noise：Without Noise
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Max Drilling Diameter：4600mm
- Max Drilling Depth：150m
- Application：Construction Work
- Advantage：Long Life Time
- After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
- Engine：Cummins 641kw
- Work Pressure：35MPa
- Max Torque：793kn.M
- Rotational Speed：5-40 R,Min
- Slewing Angle：360
- Dimension：13780×6600×39473mm
- Certificate：Ce ISO TUV
- Transport Package：Nude Packing
- Specification：310T
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8430509000
- Production Capacity：10000PC,Year
Description
Main Technical SpecificationXR800E Engine Model CumminsQSK23 Rated Power KW 641 Rotary
Drive Max. Output Torque KN.M 793 Rotary Speed Standard Mode R/Min 5~40 High Speed
Mode Working Speed Spin Off Speed Max. Drilling Diameter mm 4600 Max. Drilling Depth M 150 Pull-Down
Cylinder Max. Pull-down Piston Push KN / Max. Pull-down Piston Pull KN / Max. Pull-down Piston Stroke M / Crowd
Winch Max. Pull-down Piston Push KN 600 Max. Pull-down Piston Pull KN 800 Max. Pull-down Piston Stroke M 10/16 Main
Winch Max. Pulling Force KN 800 Max. Line Speed M/Min 60 Auxiliary
Winch Max. Pulling Force KN 180 Max. Line Speed M/Min 50 Mast Rake Side/Forwards/Backwards ±4°/5°/10° Undercarrige Max. Traveling Speed KM/H 1 Max. Grade Ability % 30 Min. Clearance mm 750 Track Shoe Width mm 1200 Distance between Tracks mm 6600 Hydraulic System Working Pressure MPA 35 Overall Drilling Weight T 310 Dimesion Working Condition mm 13780×6600×39473 Transportation Condition mm ***

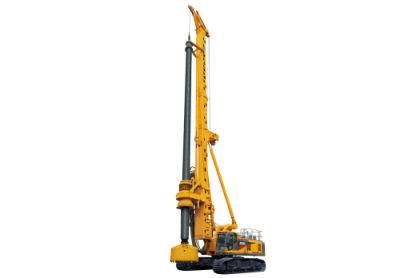

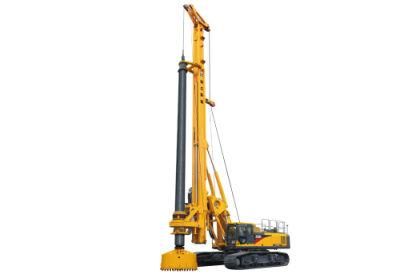

Details Photo:
Transportation:
Drive
Mode
Cylinder
Winch
Winch
Winch
Details Photo:
Transportation:
