• Model NO.：xr800E
• Power Source：Diesel
• Motor Power：641kw
• Noise：Without Noise
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Max Drilling Diameter：4600mm
• Max Drilling Depth：150m
• Application：Construction Work
• Advantage：Long Life Time
• After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
• Engine：Cummins 641kw
• Work Pressure：35MPa
• Max Torque：793kn.M
• Rotational Speed：5-40 R,Min
• Slewing Angle：360
• Dimension：13780×6600×39473mm
• Certificate：Ce ISO TUV
• Transport Package：Nude Packing
• Specification：310T
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8430509000
• Production Capacity：10000PC,Year

Main Technical SpecificationXR800EEngineModel CumminsQSK23Rated PowerKW641Rotary
DriveMax. Output Torque  KN.M793Rotary SpeedStandard ModeR/Min5~40High Speed
ModeWorking SpeedSpin Off SpeedMax. Drilling Diametermm4600Max. Drilling DepthM150Pull-Down
CylinderMax. Pull-down Piston PushKN/Max. Pull-down Piston PullKN/Max. Pull-down Piston StrokeM/Crowd
WinchMax. Pull-down Piston PushKN600Max. Pull-down Piston PullKN800Max. Pull-down Piston StrokeM 10/16Main
WinchMax. Pulling ForceKN800Max. Line SpeedM/Min60Auxiliary
WinchMax. Pulling ForceKN 180Max. Line SpeedM/Min50Mast RakeSide/Forwards/Backwards±4°/5°/10°UndercarrigeMax. Traveling SpeedKM/H1Max. Grade Ability%30Min. Clearancemm750Track Shoe Widthmm1200Distance between Tracksmm6600Hydraulic System        Working PressureMPA35Overall Drilling WeightT310DimesionWorking Conditionmm13780×6600×39473Transportation Conditionmm***

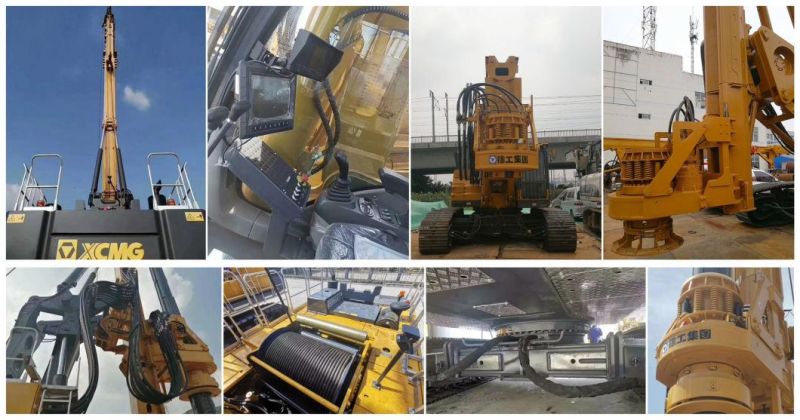

Details Photo:

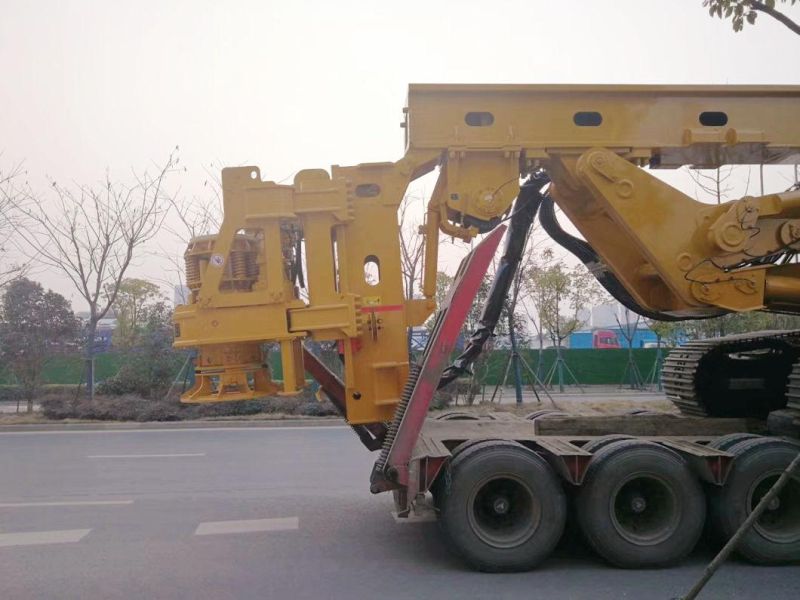

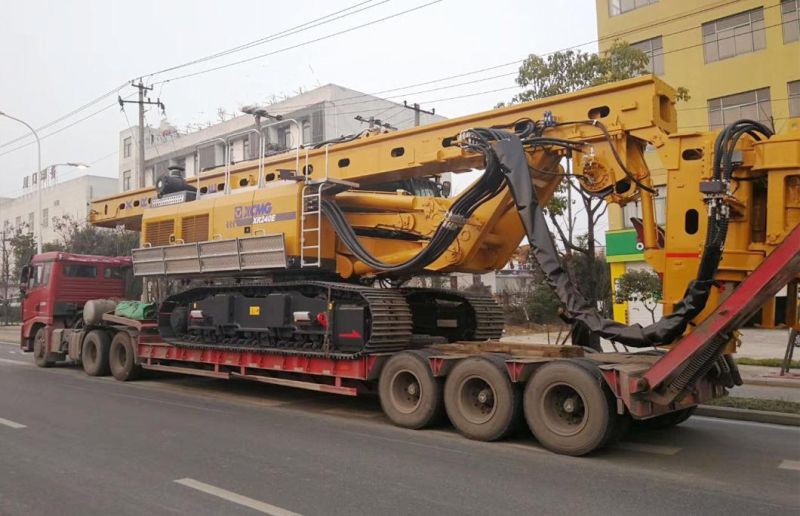

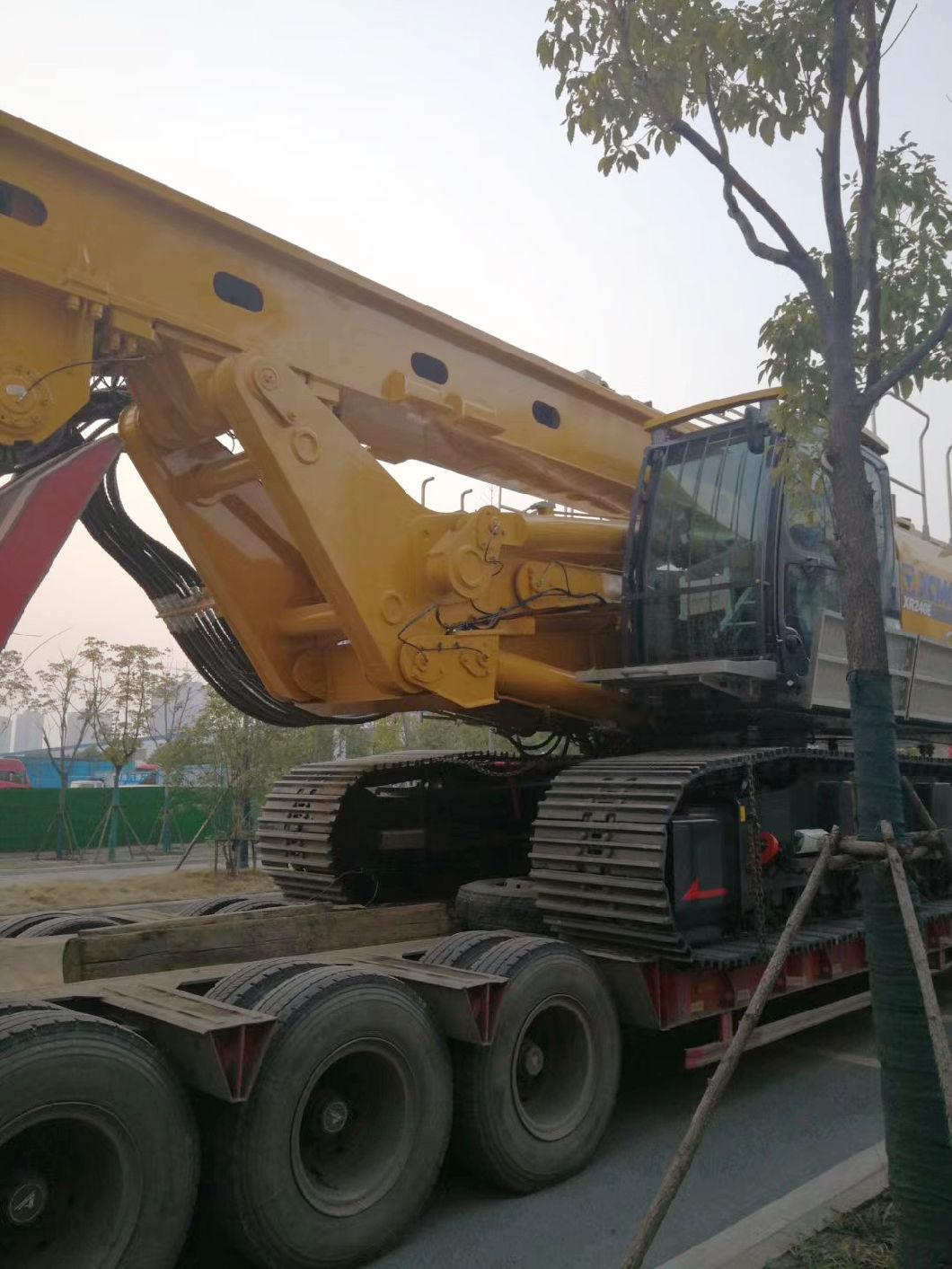

Transportation:
