Yd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping Tool

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Rammer Compactor
  • Working Method：Vibration
  • Axle：Hydraulic Ballast Tamper for Railway
  • Grinding Wheel Type：Hydraulic Ballast Tamper for Railway
  • Compaction Depth：1
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：Railway Tamper
  • Travel Speed：30cm,s
  • Centrifugal Force：40KN
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Delivery Time：5-10 Days After Your Payment
  • Supply Ability：1000 Sets Per Month
  • Minimum Order Quantity：1 Set
  • Model：Yd-22 Diesel Tamping Machine
  • Sf190 Diesel Engine Power：7kw;Rpm:2300rpm
  • Gx270 Gasoline Engine Power：6.6kw, Rpm: 3600rpm
  • Keywords：Ballast Rail Tamping Machine
  • Mainland：China
  • Brand：China Coal
  • Transport Package：Exported Package
  • Specification：1300x750x1600mm
  • Trademark：China Coal
  • Origin：China
  • Production Capacity：1000 Sets Per Month

Description

Basic Info.

Model NO. Railway Tamper Travel Speed 30cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2008 Condition New Delivery Time 5-10 Days After Your Payment Supply Ability 1000 Sets Per Month Minimum Order Quantity 1 Set Model Yd-22 Diesel Tamping Machine Sf190 Diesel Engine Power 7kw;Rpm:2300rpm Gx270 Gasoline Engine Power 6.6kw, Rpm: 3600rpm Keywords Ballast Rail Tamping Machine Mainland China Brand China Coal Transport Package Exported Package Specification 1300x750x1600mm Trademark China Coal Origin China Production Capacity 1000 Sets Per Month

Product Description

Product Introduction of YD-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping Tool

YD-22 hydraulic tamping machine adopts double guide pillars and single cylinder lifting mode. By tamping the line, the ballast has certain compactness and elasticity, and improves the overall stability and smoothness of the line. It can not only prolong the service life of rail, but also prolong the service life of wheel set, make the train run more smoothly and reduce the railway transportation cost.zmwm02

Parameter of YD-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping Tool


Rated power9.5Kw
Rated speed3600rpm
Weight25kg
Fuel consumption310G / kWh
Vibration frequency67hz
hydraulic system working pressure5.0 ~ 6.0MPa
Maximum insertion force≥ 18kn
Maximum clamp strength7.1kn * 2
Lifting time2s
Descent time1s
Clamping time0.5s
Track gauge of running frame1435mm
Insertion depth90mm ~ 120mm (below the pillow bottom surface)
Exciting force22kn
Production efficiency≥ 340 sleepers / each group per hour
Net weight≤ 360kg
Dimension1420 *680 *1550 mm

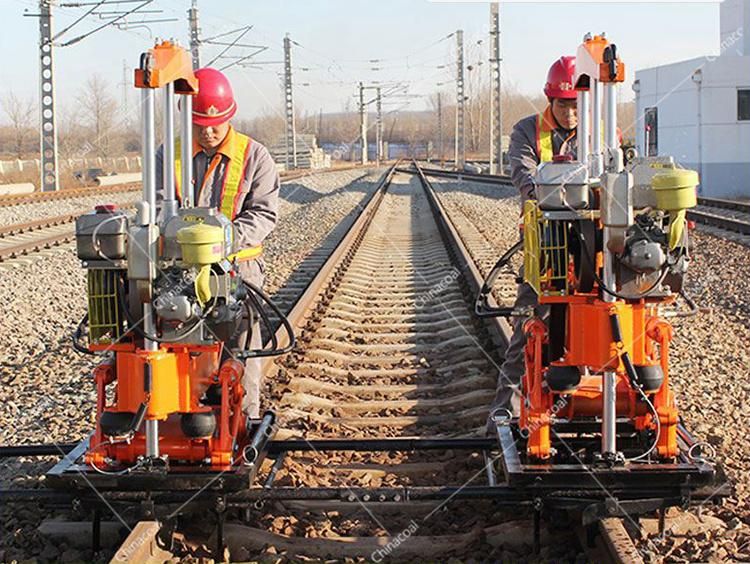

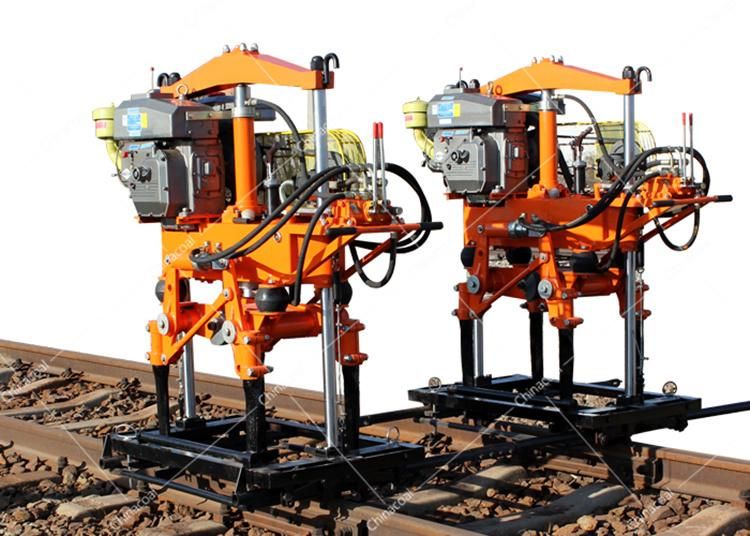

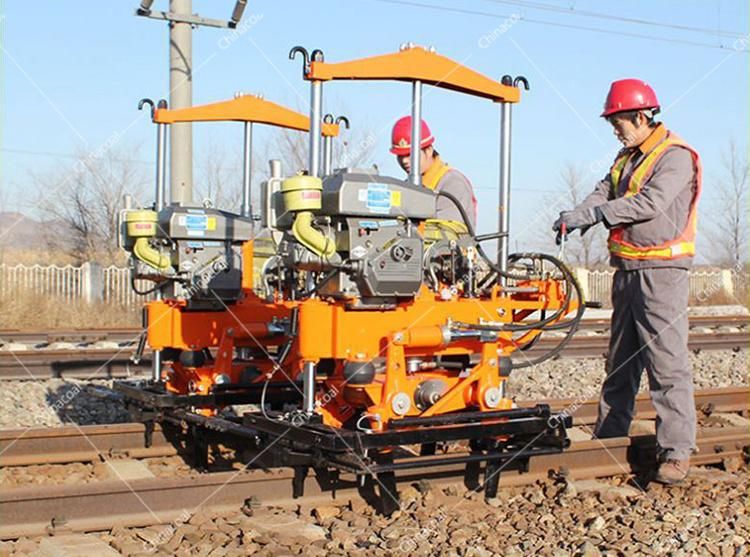

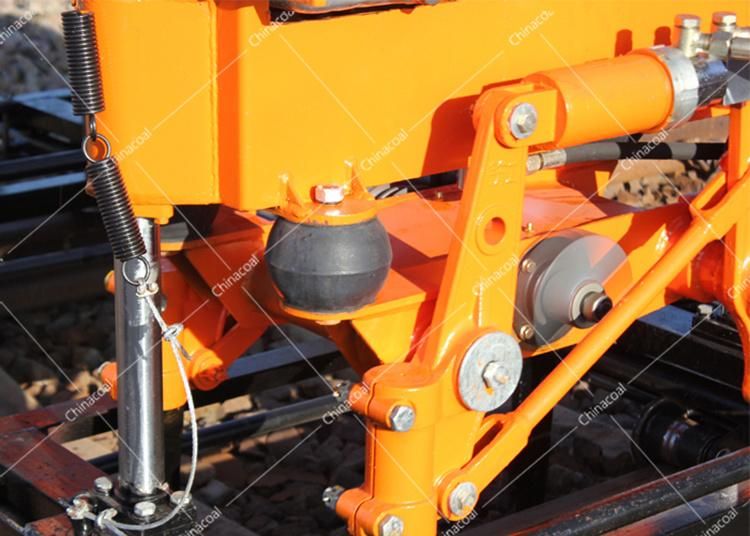

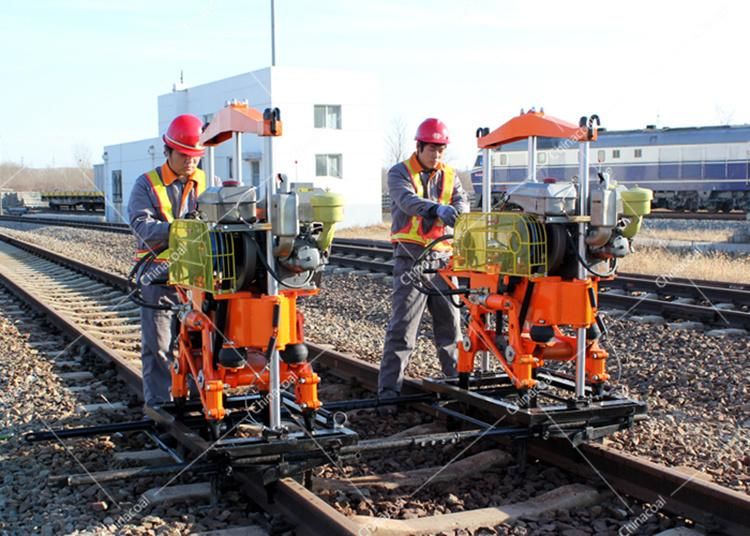

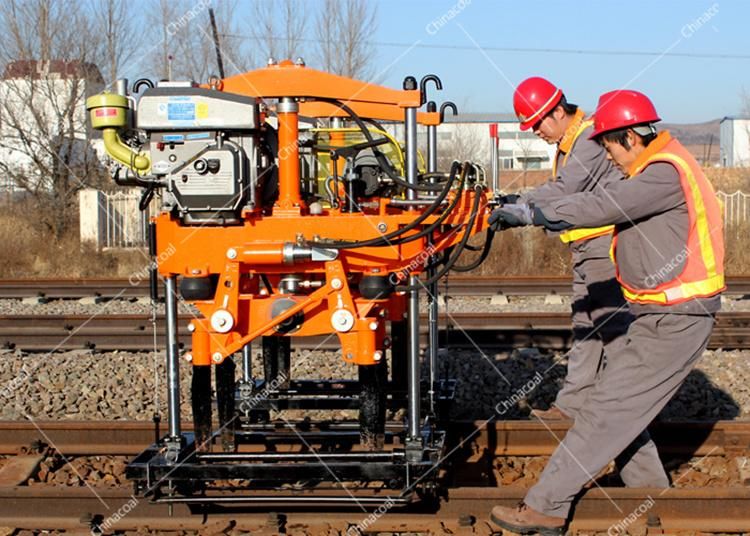

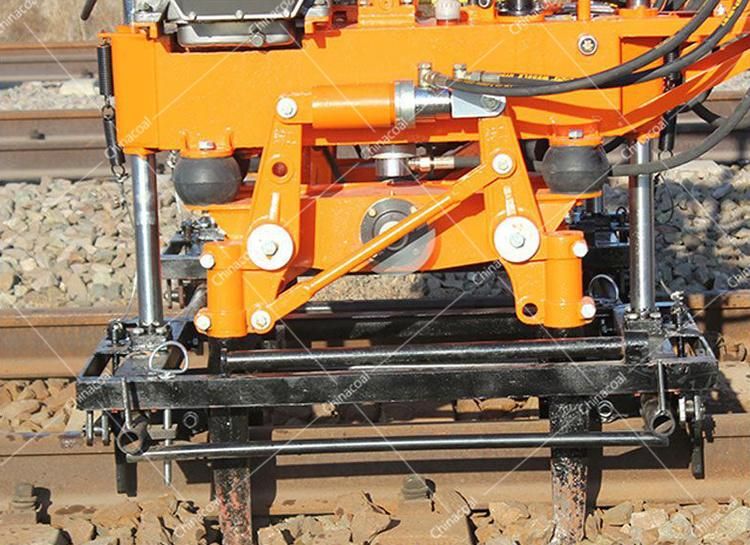

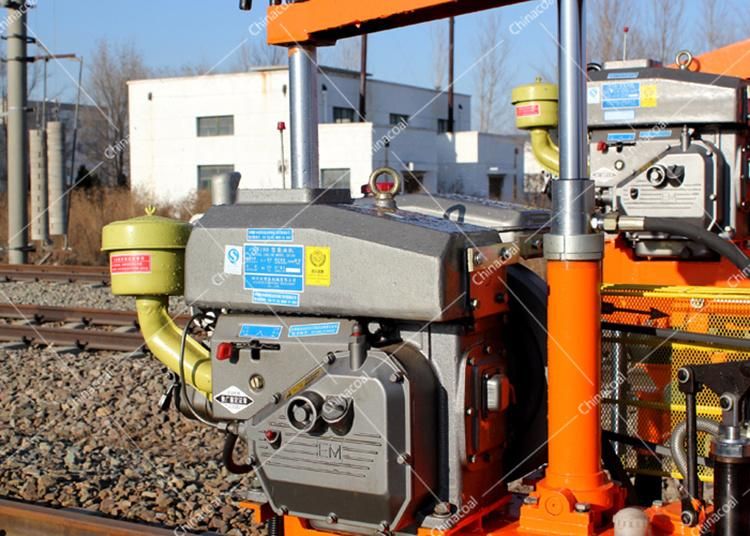

Pictures of YD-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping Tool





Yd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping ToolYd-22 Hydraulic Railway Tamper Machine Ballast Rail Tamping Tool
