Yd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper Tool

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Rammer Compactor
  • Working Method：Vibration
  • Axle：Hydraulic Ballast Tamper for Railway
  • Grinding Wheel Type：Hydraulic Ballast Tamper for Railway
  • Compaction Depth：1
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：Rail Tamper
  • Travel Speed：30cm,s
  • Centrifugal Force：40KN
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Delivery Time：5-10 Days After Your Payment
  • Supply Ability：1000 Sets Per Month
  • Minimum Order Quantity：1 Set
  • Model：Yd-22 Diesel Tamping Machine
  • Sf190 Diesel Engine Power：7kw;Rpm:2300rpm
  • Gx270 Gasoline Engine Power：6.6kw, Rpm: 3600rpm
  • Keywords：Ballast Rail Tamping Machine
  • Mainland：China
  • Brand：China Coal
  • Transport Package：Exported Package
  • Specification：1300x750x1600mm
  • Trademark：China Coal
  • Origin：China
  • Production Capacity：1000 Sets Per Month

Description

Basic Info.

Model NO. Rail Tamper Travel Speed 30cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2008 Condition New Delivery Time 5-10 Days After Your Payment Supply Ability 1000 Sets Per Month Minimum Order Quantity 1 Set Model Yd-22 Diesel Tamping Machine Sf190 Diesel Engine Power 7kw;Rpm:2300rpm Gx270 Gasoline Engine Power 6.6kw, Rpm: 3600rpm Keywords Ballast Rail Tamping Machine Mainland China Brand China Coal Transport Package Exported Package Specification 1300x750x1600mm Trademark China Coal Origin China Production Capacity 1000 Sets Per Month

Product Description

Introduction of YD-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper Tool

YD-22 rail tamping machine it's suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed. This machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.zmwm02

Parameter of YD-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper Tool

ModelYD-22 Rail Tamping Machine
Dimension1390*750*1600mm
MaterialMetal and Stainless Steel
ColorYellow or Orange
ApplicationRail Track Ballast Tamping Operation
Motive powerSF190 Model Diesel Engine  Power :7kW
Hydraulic pressure5~6MPa
Vibration frequency66.7Hz
Exciting force22kN
Max.under thrust force110mm±10mm(Beneath The Sleeper)
Production efficiency≥ 270pieces/(Group/Per Hour)
Main frame net weihgt450KG

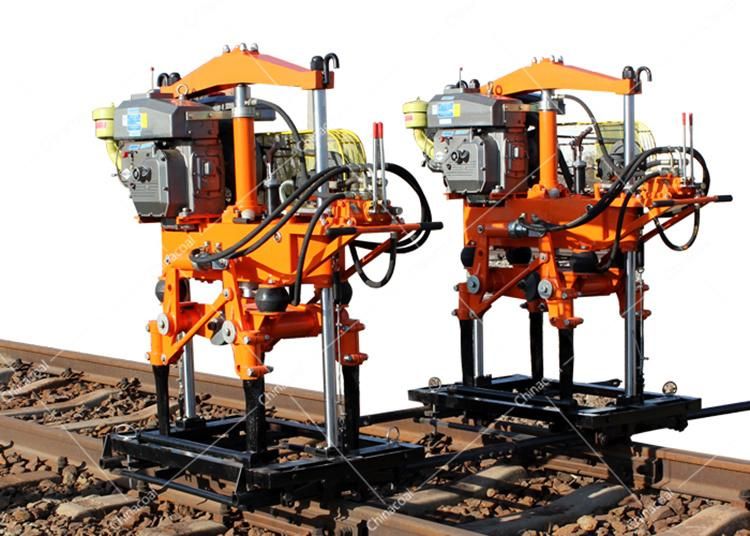

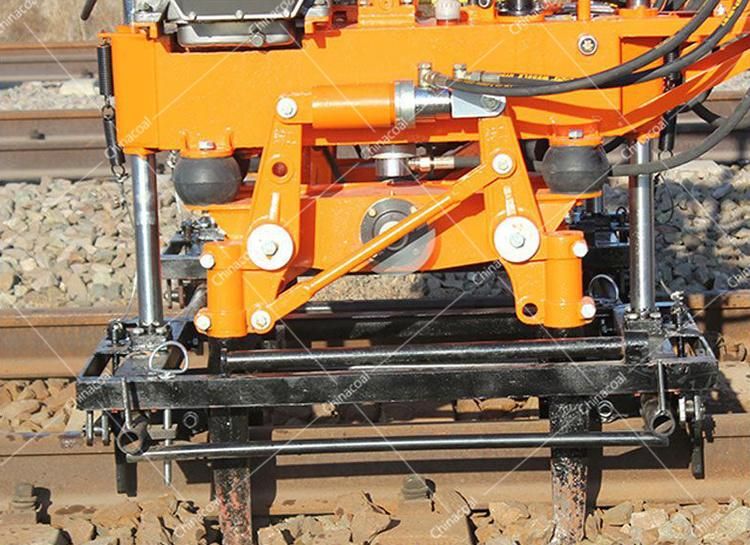

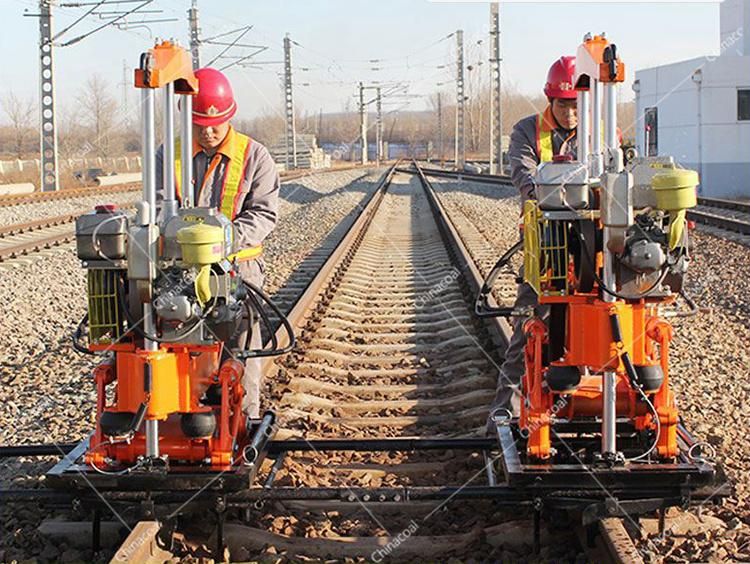

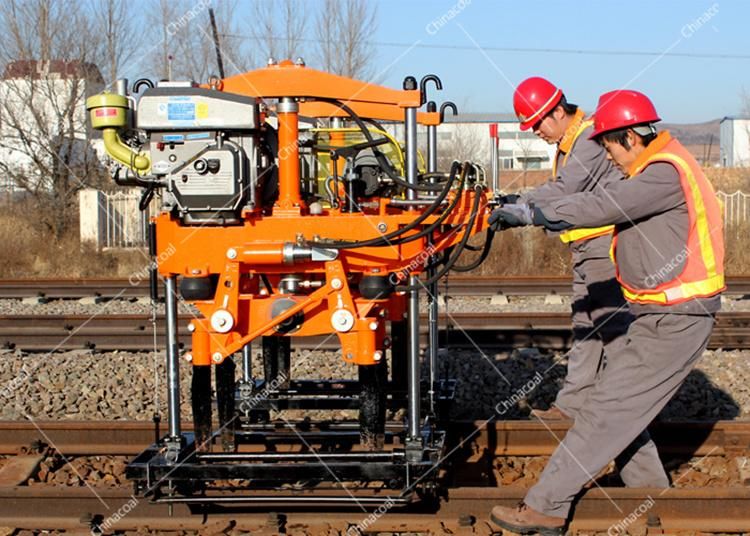

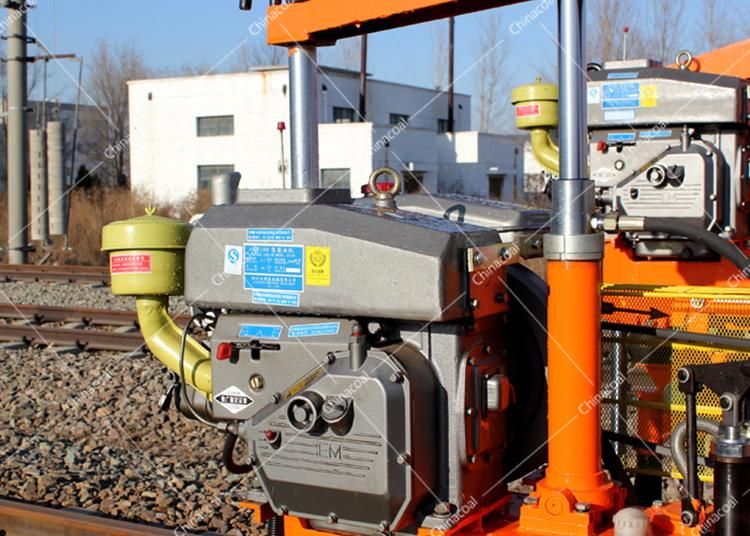

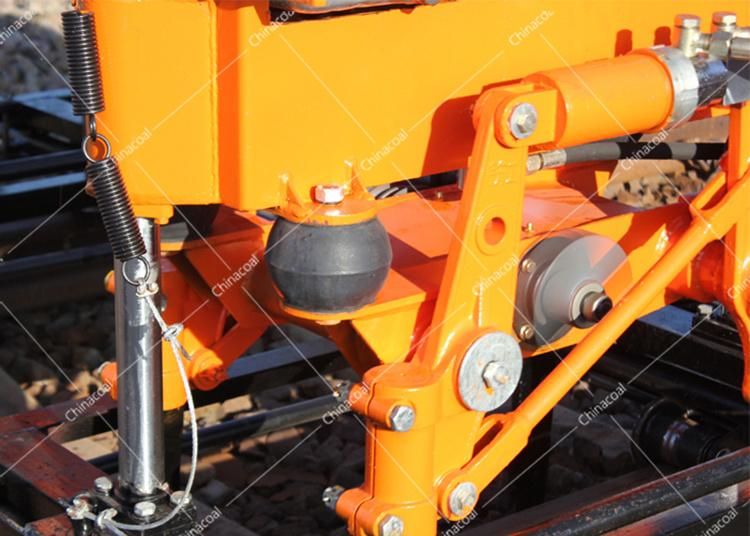

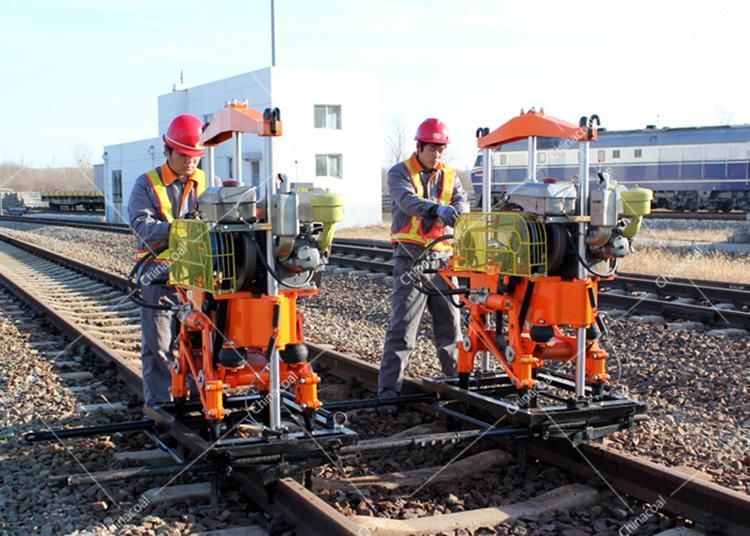

Photos of YD-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper Tool



Yd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper ToolYd-22 Rail Track Hydraulic Tamping Machine Ballast Rail Tamper Tool
