Ycd-22 Hydraulic Rail Switch Tamping Machine Railway Tamper
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Rammer Compactor
- Working Method：Vibration
- Axle：Hydraulic Ballast Tamper for Railway
- Grinding Wheel Type：Hydraulic Ballast Tamper for Railway
- Compaction Depth：1
- Engine Type：Diesel Engine
Base Info
- Model NO.：Railway Tamper
- Travel Speed：30cm,s
- Centrifugal Force：40KN
- Certification：CE, ISO 9001:2008
- Condition：New
- Delivery Time：5-10 Days After Your Payment
- Supply Ability：1000 Sets Per Month
- Minimum Order Quantity：1 Set
- Power：Gasoline Engine 6.6kw
- Vibration Frequency：60Hz-70Hz
- Exciting Force：22kn
- System Working Pressure：5MPa
- Keywords：Ballast Rail Tamping Machine
- Mainland：China
- Brand：China Coal
- Transport Package：Exported Package
- Specification：1300x750x1600mm
- Trademark：China Coal
- Origin：China
- Production Capacity：1000 Sets Per Month
Description
Basic Info.
Model NO. Railway Tamper Travel Speed 30cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2008 Condition New Delivery Time 5-10 Days After Your Payment Supply Ability 1000 Sets Per Month Minimum Order Quantity 1 Set Power Gasoline Engine 6.6kw Vibration Frequency 60Hz-70Hz Exciting Force 22kn System Working Pressure 5MPa Keywords Ballast Rail Tamping Machine Mainland China Brand China Coal Transport Package Exported Package Specification 1300x750x1600mm Trademark China Coal Origin China Production Capacity 1000 Sets Per MonthProduct Description
Introduction of YCD-22 Hydraulic Rail Switch Tamping Machine Railway Tamper
YCD-22 hydraulic switch tamping machine is suitable for tamping operation of the most complicated and difficult turnout section in line maintenance.Turnout switch zmwm02Tamping operation can be carried out for some parts, turnout connection part, turnout and guard rail part.The machine is easy to operate, light in weight, high in efficiency
The failure rate is low, which can meet the needs of ballast tamping operation.
Parameters of YCD-22 Hydraulic Rail Switch Tamping Machine Railway Tamper
| Model | YCD-22 Switch Tamping Machine |
| Dimension | 1200*520*1650mm |
| Material | Metal and Stainless Steel |
| Color | Yellow |
| Application | Rail Track Ballast Tamping Operation |
| Motive power | Honda GX270 Engine Power : 6.6 kw |
| Hydraulic pressure | 4~5MPa |
| Vibration frequency | 60~67Hz |
| Exciting force | 22kN |
| Max.under thrust force | 110mm±10mm |
| Production efficiency | 240 Pieces /Hour (under normal operation) |
| Main frame net weight | 300Kg |

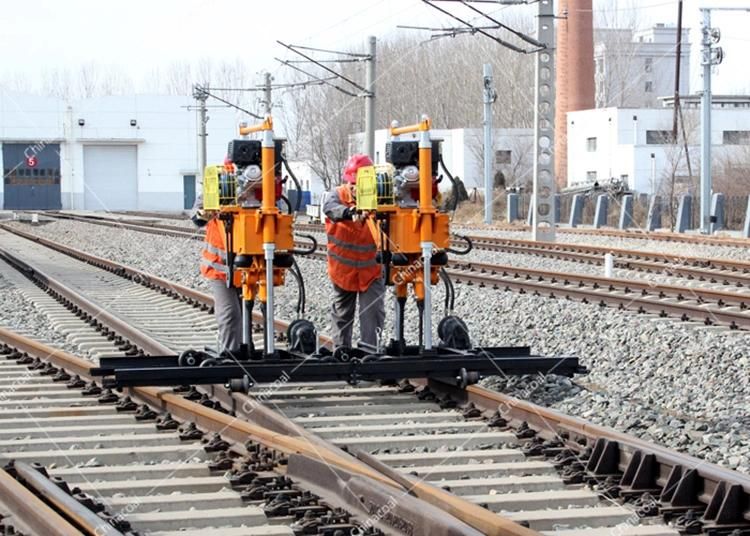

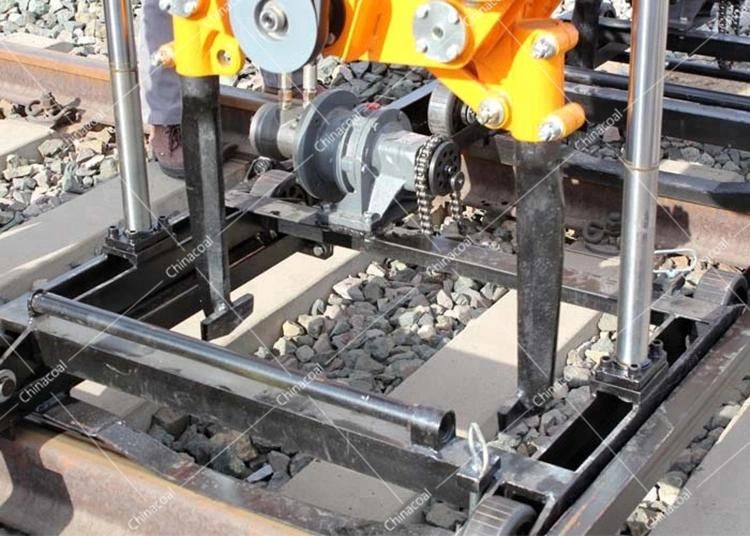

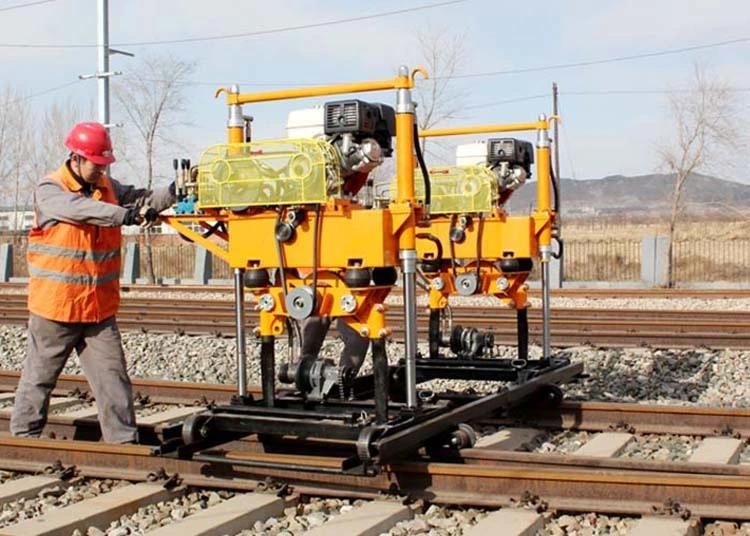

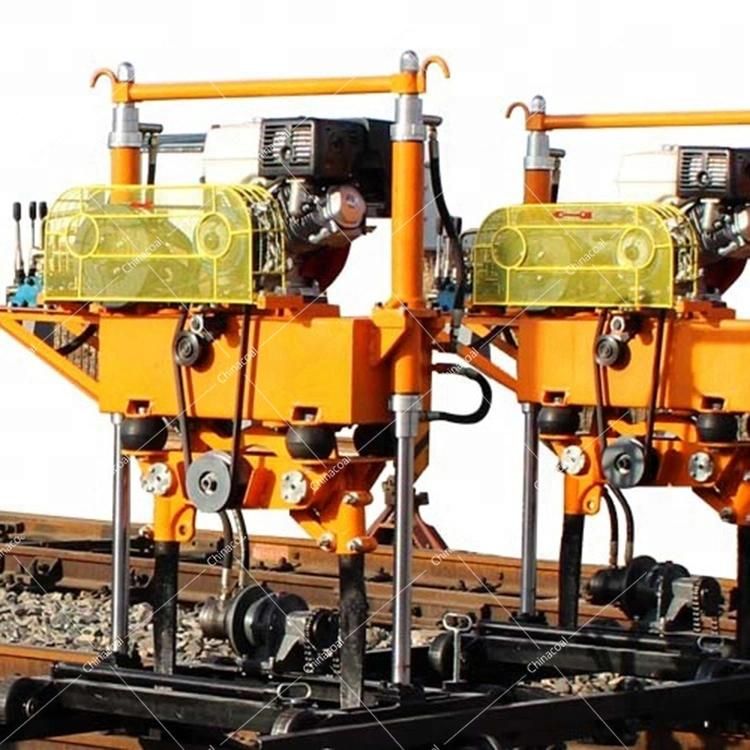

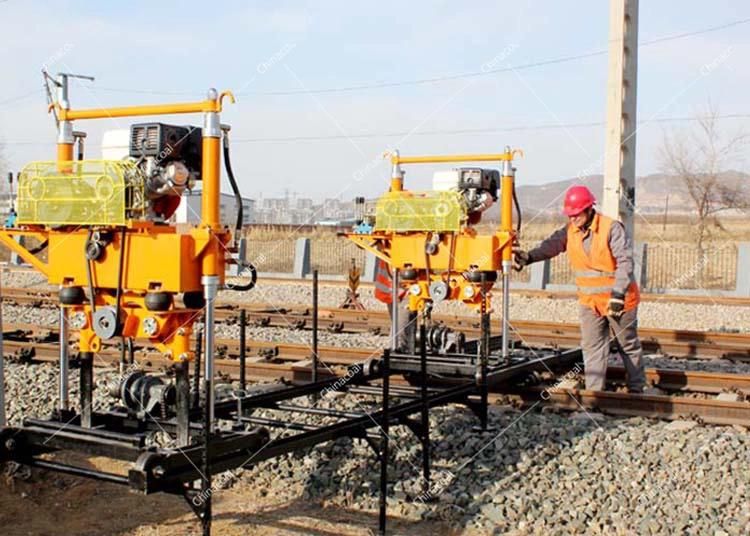

Photos of YCD-22 Hydraulic Rail Switch Tamping Machine Railway Tamper
