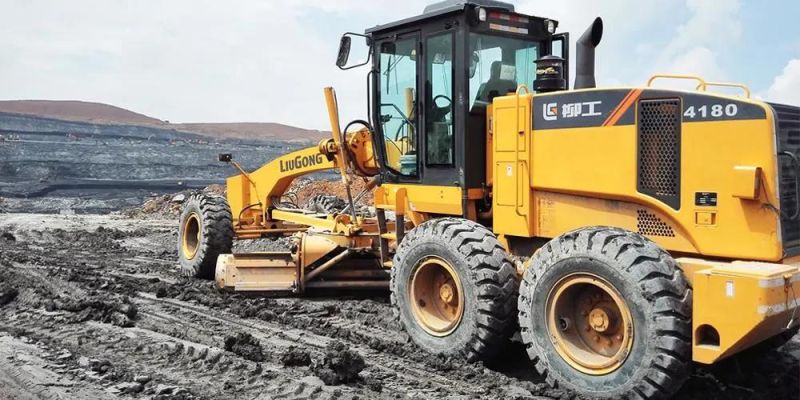

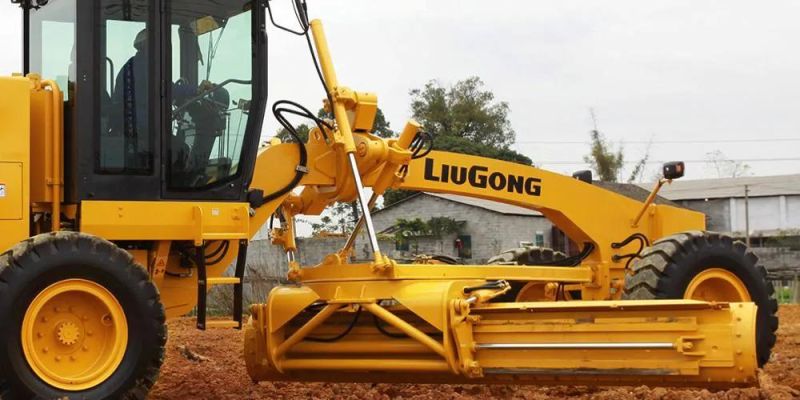

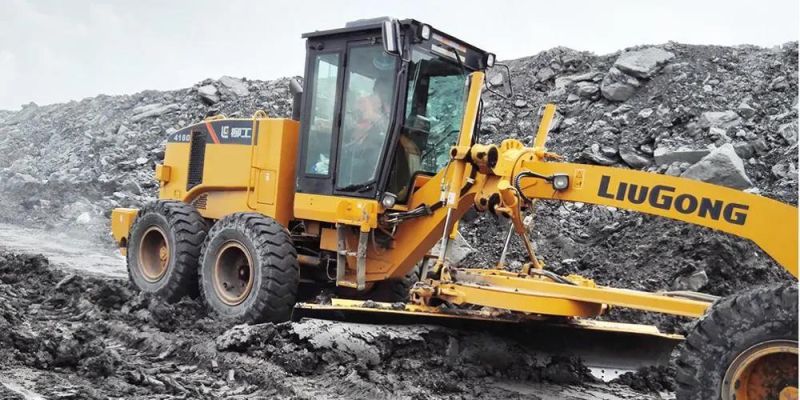

Liugong 240HP Motor Grader with 20ton Operating Weight
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland
- Transmission：Hydraulic
Base Info
- Model NO.：425
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Operating Weight：19500kg
- Transport Package：Nude
- Specification：9265*4272*3500mm
- Trademark：LIUGONG
- Origin：China
- HS Code：8429201000
- Production Capacity：500,Month
Description
Product Description
Operating weight
15500 kg
Weight on front wheels
4650 kg
Weight on rear tandem
10850 kg
Drawbar pull
86 kN
Model
6BTAA5.9 -C190
Emission regulation
Tier 2 / Stage II
Rated power
142 kW (193 hp) @ 2200 rpm
Net power
128 kW (174 hp) @ 2200 rpm
Type
Power shift
Speeds
6f / 3r
Maximum travel speed, forward
42 km/h
Maximum travel speed, reverse
26.2 km/h
Turning radius
7300 mm
Articulation angle
±20°
Maximum overall height
3500 mm
Width over tires
2600 mm
Blade width
3960 mm
Overall length
9265 mm
