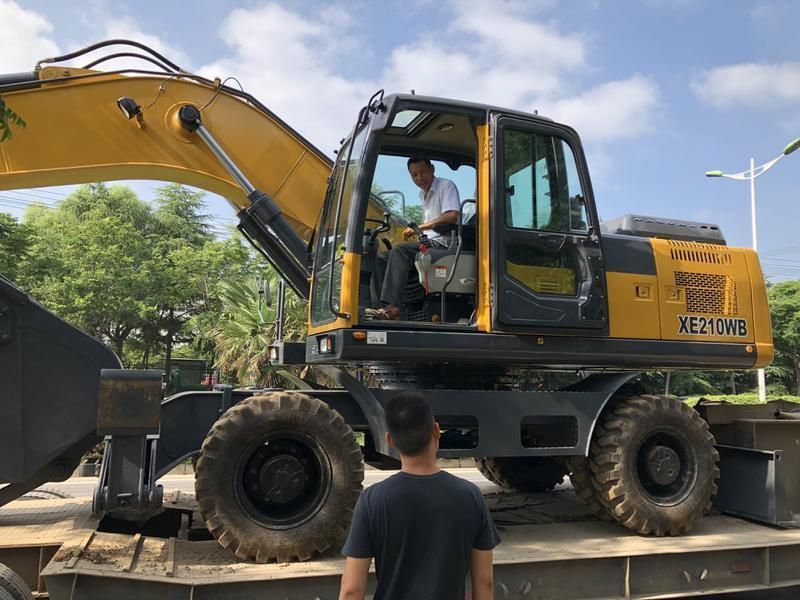

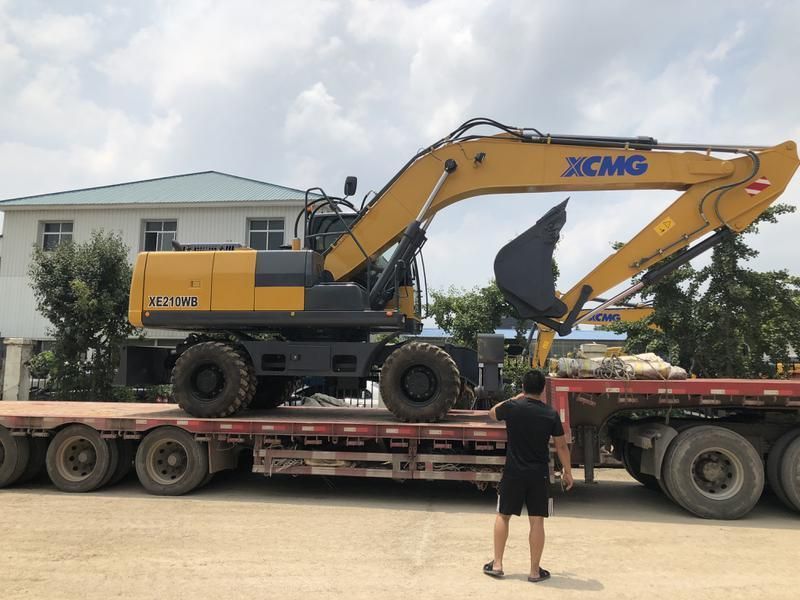

• Model NO.：XE210WB
• Drive Type：Electric Drive
• Bucket Capacity：0.86m3
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：20500kg
• Transport Package：Roro,Bulk,Nude,Container
• Specification：7778*2495*3305mm
• Trademark：TOP BRAND
• Origin：China
• HS Code：84295212
• Production Capacity：100units,Month

Item
Unit
XE150W
Operation Weight
kg
15318
Bucket Capacity
m3
0.58
Engine
Model
--
QSB4.5
Rated Power
kW/ r/min
104/2000
Max Torque
N.m
586
Displacement
L
4.5
Fuel Tank
L
250
Hydraulic system
Main Pump/Pilot Pump
--
2
Performance
Rated Flow
L/min
2×160
Working Pressure
MPa
31.4/34.3
Hydraulic oil Tank
L
220
Slewing Speed
r/min
13.7
Bucket Digging Force
kN
90
Rod Digging Force
kN
65
Max Traction
kN
136
Travel Speed
km/h
30/11
Grade Ability
%
70
Dimension
Length
mm
6482
Width
mm
2552
Cabin Height
mm
3158
Chassis Width
mm
2495
Blade(w/h)
mm
2495×564
Max Scope
Max Digging Radius
mm
8296
Max Ground Reach
mm
8085
Max Digging Height
mm
9150
Max Dumping Height
mm
6684
Max Digging Depth
mm
5040
8 Inch plane digging depth
mm
4825
Blade Max Lifting Height
mm
515
