• Model NO.：Xs163j
• Automatic Grade：Automatic
• Product Capacity：>400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Static Linear Pressure：362n,Cm
• Grade Ability：20%
• Max. Power：103kw
• Transport Package：Container,Roro,Bulk
• Specification：18000kg
• Trademark：Top Brand
• Origin：China
• HS Code：8429401100
• Production Capacity：500unit,Month

Basic Info.

Model NO. Xs163j Automatic Grade Automatic Product Capacity >400t/h Certification ISO9001: 2000, CE Condition New Static Linear Pressure 362n/Cm Grade Ability 20% Max. Power 103kw Transport Package Container/Roro/Bulk Specification 18000kg Trademark Top Brand Origin China HS Code 8429401100 Production Capacity 500unit/Month

Product Description

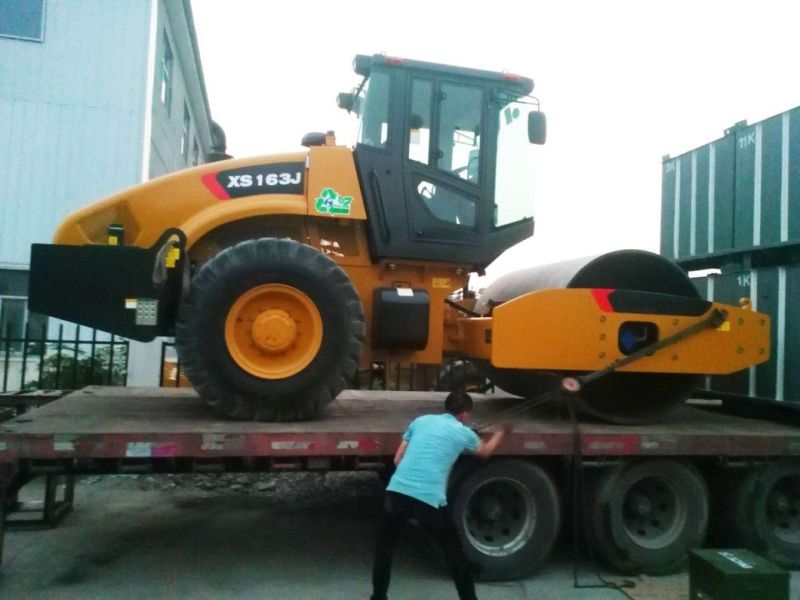

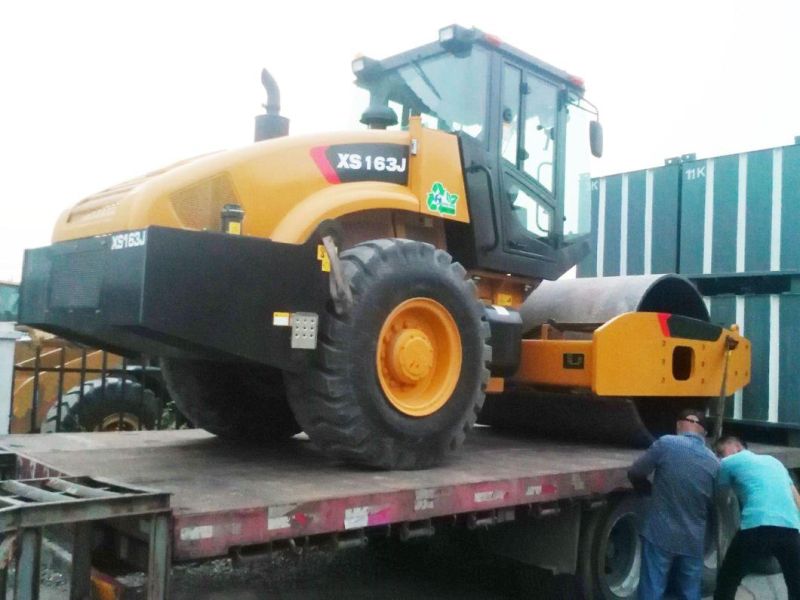

Top Brand Xs163j 16 Ton Single Drum Road Roller

XS163J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction
operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

Performance Characteristics:
* Use the H-series, water cooling, four-cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed
diesel engine manufactured by Shanghai. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction. Engine fulfills the requirements of China stage II emission standards.

* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.

* Use the mechanical gear box with synchro mesh unit to realize convenient operation.

* Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable
performance and good maintainability. Clutch is directly installed on the engine flywheel, and the operation mechanism of main clutch is the air assisted mechanism which greatly reduces the operating force.

* Double frequency and double amplitude can meet the requirements of different working conditions; hydraulic vibration system consists of gear pump and motor to form an open system; its control mode is electronic control. Guarantee the demand of vibration parameter and reliability of vibration system.

Type	Unit	XS163J	XS183J	XS183
Operating weight	kg	1600	18000	18000
Load applied on front drum	kg	7700	9000	11500
Compacting width	mm	2340	2300	2130
Static linear load	N/cm	362	422	529
Vibration frequency(Low/High)	Hz	28	28	28/33
Nominal amplitude(High/Low)	mm	1.9/0.95	1.9/0.95	1.86/0.93
Exiting force(High/Low)	KN	290/145	320/160	340/240
Travel speed	km/h	2.85-11.17	2.54~10.51	2.54~10.51
Steering angle	°	±33	±33	±33
Swing angle	°	±11	±11	±10
Theoretical gradeability	%	30	30	50
Min. Outer turning radius	mm	6500	6500	6500
Engine model		Shangchai	Shangchai	DEUTZ BF6M2012C
Engine power	kw	103	115	136
Hydraulic oil tank capacity	L	170	170	240
Fuel tank capacity	L	310	310	240
