Foam Concrete Machine Production Equipment|Foam Cement Machine|Foam Generator Machine
Shandong Match Machinery Co., Ltd.- Type：Cement Production Machinery
- Shotcrete Type：Wet
- Machining Process：Vacuum
- Structure：Rotor Type
- Productivity：35m²,h
- Feeding Height：1100mm
Base Info
- Model NO.：MF20
- Vibrating Amplitude：2.6mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Yellow
- Max. Theoretical Concrete Put：20
- Diesel Engine Power(Kw)：53
- Theoretical Vertical Conveying Height(M)：80
- Theoretical Level Transmission Distance(：500
- Mixer Tank Capacity(L)：580
- Weight of Main Part(Kg)：3000
- Transport Package：Wooden Case
- Specification：4000*1500*1900mm
- Trademark：Match
- Origin：Shandong, China
- Production Capacity：20sets,Week
Description
1.Machine introduction of Concrete Foam Machine

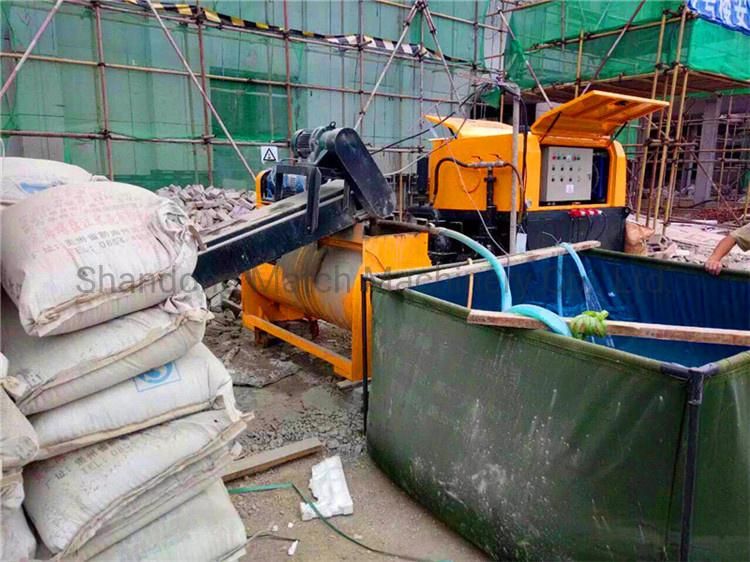

This line use the technology of pump transportation.The whole process line include four parts: feeding conveyor, concrete mixing
machine, foam machine used in block , foam agent and pump, the transportation capacity is 10~15m³/h, the max level transportation
distance is 50m, the max horizon distance is 400m.
Applications:
Floor/roof casting
Block
Wall panel
Framed wall and house structure casting
Subway and coal mining backfill
Machine features:
1).the machines is with wheels, then the process line is easy to move, so it can be used for many places, such as construction
plant, block plant, and so on.
2).Light weight, the main machine is only 600kg, you also can equip with the forklift, it will save more time, labour and costLow
consumption, the whole line is about 15kw.
3).Use the pump to transport the cement foam
It can use plant type foam agent, animal type foam agent and synthetic foam agent.
You can adjust the volume of the raw material.
Technical parameters:
This line use the technology of pump transportation.The whole process line include four parts: feeding conveyor, concrete mixing
machine, foam machine used in block , foam agent and pump, the transportation capacity is 10~15m³/h, the max level transportation
distance is 50m, the max horizon distance is 400m.
Applications:
Floor/roof casting
Block
Wall panel
Framed wall and house structure casting
Subway and coal mining backfill
Machine features:
1).the machines is with wheels, then the process line is easy to move, so it can be used for many places, such as construction
plant, block plant, and so on.
2).Light weight, the main machine is only 600kg, you also can equip with the forklift, it will save more time, labour and costLow
consumption, the whole line is about 15kw.
3).Use the pump to transport the cement foam
It can use plant type foam agent, animal type foam agent and synthetic foam agent.
You can adjust the volume of the raw material.
Technical parameters:
| Model No./Cement foam machine | MF20 |
| Max. theoretical concrete put(m³/h) | 20 |
| Diesel engine power(kw) | 53 |
| Theoretical vertical conveying height(m) | 80 |
| Theoretical level transmission distance(m) | 500 |
| Mixer tank capacity(L) | 580 |
| Filling height(mm) | 1100 |
| Mixer size(mm) | 1940*780*1470 |
| Feeder size(mm) | 3990*760*830 |
| Main part overall dimension(mm) | 4000*1500*1900 |
| Weight of main part(kg) | 3000 |
