Drilling Machine Piling Machine Crawler Rotary Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Type:Vibration Piling Machine
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer
  • Power Source:Diesel
  • Motor Power:85kw
  • Certification:CE, ISO 9001:2008

Base Info

  • Model NO.:HW-DR150
  • Condition:New
  • Name:Crawler Rotary Drilling Machine
  • Drill Diameter:1800mm
  • Drill Depth:48m
  • Geology:Soft Rock, Soil
  • Engine Model:Commins Gbt5.9-C260
  • Engine Rated Power:195 Kw
  • Max. Output Torque:120 Kn .M
  • Max.Pulling Force:100 Kn
  • Max. Traveling Speed:2.6 Km,H
  • Total Weight:4.3t
  • Transport Package:Container
  • Specification:13500*2860*3500mm
  • Trademark:Hengwang
  • Origin:Shandong, China
  • HS Code:8430691900
  • Production Capacity:500 Sets Per Month

Description

Engine brandYuchai/Weichai/CumminsWeichai/Cummins(Optional)(Optional)Engine rated power.(KW/rpm)151KW-176KW158KW-176KWMaximum torque of power head.(KN.m)120150Power head speed.(rpm)10-5010-50Maximum working pressure of hydraulic system main pump.(MPa)3030Maximum working pressure of hydraulic system auxiliary pump.(MPa)1212Maximum bow rate of the main pump hydraulic systen.(L/min)112*2(Optional)112*2(Optional)Maximum bow rate of the auxiliary pump hydraulic systen.(L/min)1616Maximum pressure of the pressurization system.(KN)100100Maximum lifting force of the pressurization system.(KN)8080Maximum travel pressure system.(mm)30003000Maximum lifting force of the main winch.(KN)150150Maximum pull-up speed of the main winch. (m/min)5050Maximum lifting force of the auxiliary winch.(KN)1515Maximum pull-up speed of the auxiliary winch.(m/min)5050Left and right inclination angle of drilling mast(°)±5±5Forward and backward inclination angle of the drilling mast. (°)5/905/90Maximum driving speed(KM/h)1.51.5Maximum climbing angle.(°)2525Maximum Driving torque.(KN.m)4500045000Overall width of working state.(mm)42004200Overall length of transport status.(mm)1300013000Overall width of transport status.(mm)28002800Overall height of transport status.(mm)35003550Drill rod typeMachine LockMachine LockDrill rod whether to provide customYesYesdrill tools500-2000mm drilling bit,Drlling Barrel,Coring drill,Reaming drilling bit500-3000mm drilling bit,Drlling Barrel,Coring drill,Reaming drilling bit



Details Images

Foundation Pile Rotary Drilling Rig
1 It is economical and efficient, mainly used in media and small-diameter pile civil construction;
2 Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4 The special lubricating system makes sure that it can work under high-temperature environment;
5 The removable and symmetrical structure design doubles the service life of rotary drive key;a
6 Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7 Optional chassis incline alarm enhances construction safety;
8 Mast verticality auto-adjusting technology promises the pile accuracy.

Drilling Machine Piling Machine Crawler Rotary Drilling Rig
Drilling Machine Piling Machine Crawler Rotary Drilling Rig
Drilling Machine Piling Machine Crawler Rotary Drilling Rig
Drilling Machine Piling Machine Crawler Rotary Drilling Rig
Drilling Machine Piling Machine Crawler Rotary Drilling Rig


Product Usage

Foundation Pile Rotary Drilling Rig
mainly used in construction , bridge foundation ,building airport ,etc different place.
Drilling Machine Piling Machine Crawler Rotary Drilling Rig
Company Introduction

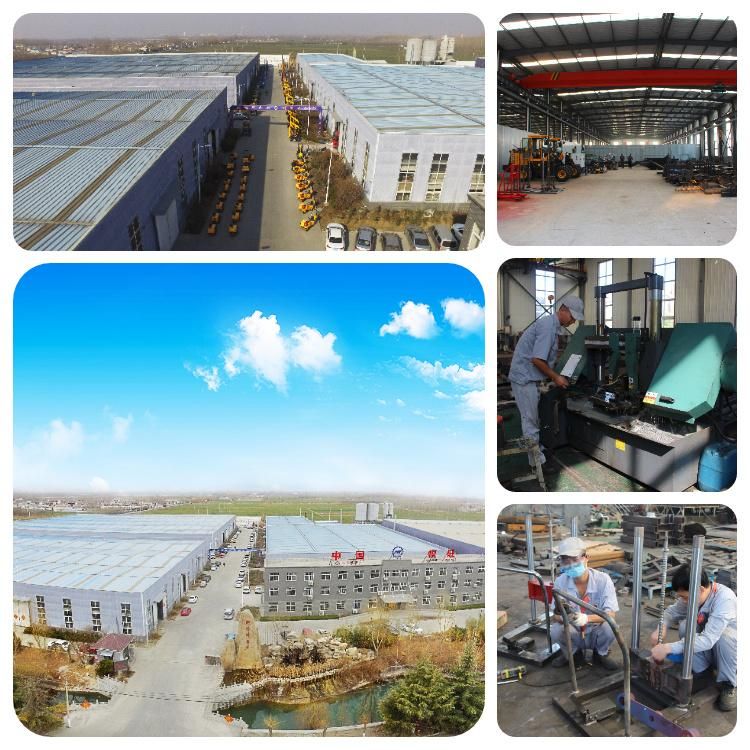

  Our Company Introduction: Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
  Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multifunction rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
