• Model NO.：XP263
• Travel Speed：30cm,s
• Centrifugal Force：30.5KN
• Certification：ISO 9001:2008
• Condition：New
• Operating Weight：13900-26000kg
• Theoretical Gradeability：20%
• Min. External Turning Radius：9000mm
• Compacting Width：2365mm
• Ground Pressure：250-460kpa
• Rated Power：115kw
• Transport Package：Comply with Export Packaging Requirements
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：10000 Unit,Units , Year

Basic Info.

Model NO. XP263 Travel Speed 30cm/s Centrifugal Force 30.5KN Certification ISO 9001:2008 Condition New Operating Weight 13900-26000kg Theoretical Gradeability 20% Min. External Turning Radius 9000mm Compacting Width 2365mm Ground Pressure 250-460kpa Rated Power 115kw Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu, China HS Code 84294019 Production Capacity 10000 Unit/Units / Year

Product Description

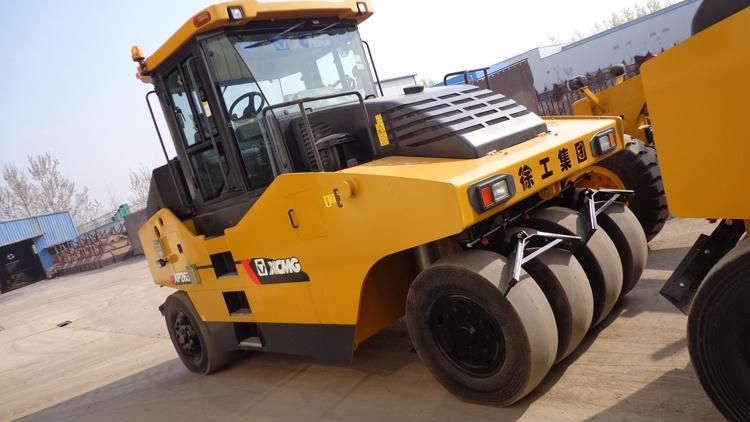

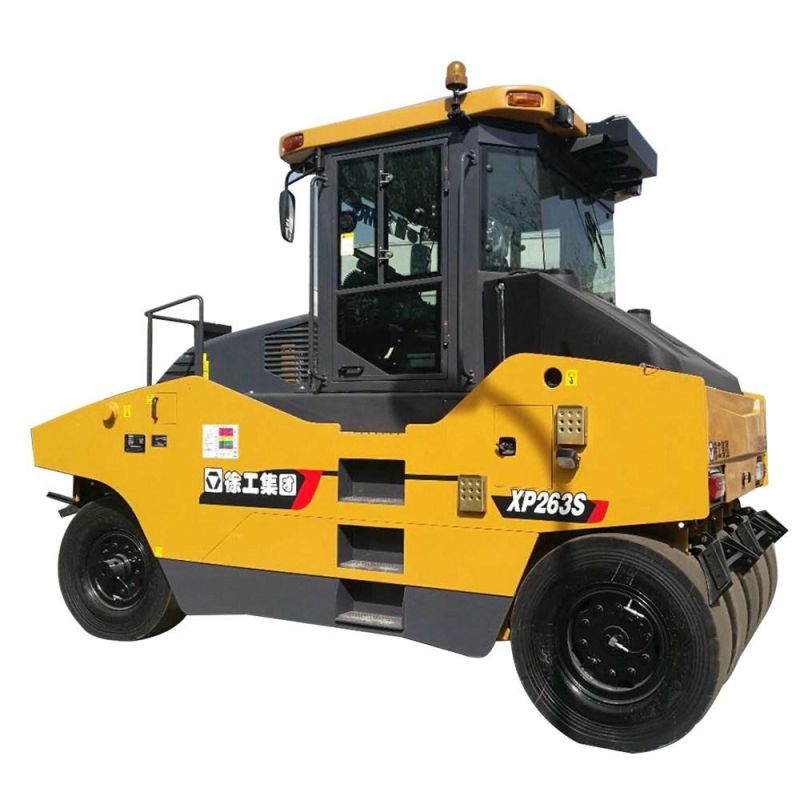

XCMG official manufacturer XP263 26ton Pneummatic Road Roller.

There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.

Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres.

Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.


Description	Unit	Parameter value
Minimum operating mass	kg	15000
Maximum operating mass	kg	26300
Mass of added heavy water	kg	650
Added mass	kg	10550
Compacting width	mm	2360
Overlap amount of tires	mm	65
Ground pressure	kPa	200-470
Minimum turning radius	mm	7620
Swing amount of front wheel	mm	±50
Minimum ground clearance	mm	300
Theoretical gradeability	%	20
Wheelbase	mm	3840
Driving speed	km/h	0-17
Model of diesel engine		SC7H160.2G3
Rated power	kw	118
Rated speed	r/min	1800
Rated fuel oil consumption	g/kW·h	≤235
Tire specification		13/80-20
Tread pattern		Smooth tread tire
Number of tires		4 front tires and 5 rear tires
Length (standard for sprinkling water)	mm	4925
Length (optional for spraying oil)	mm	5015
Width	mm	2530
Height	mm	3370
Capacity of fuel tank L	L	170
Capacity of water tank L	L	650

Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2019, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.
