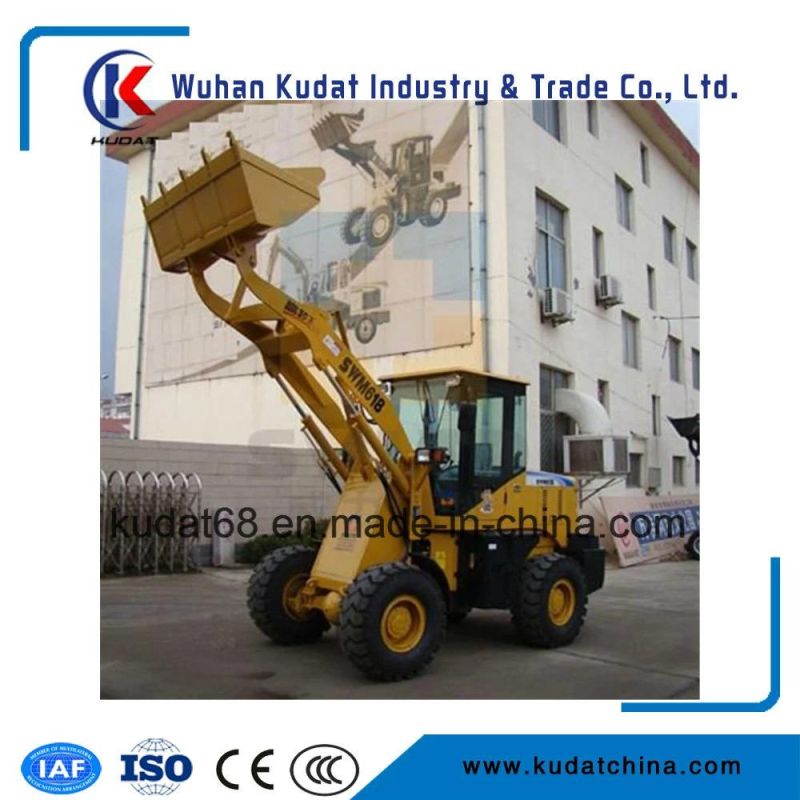

1200kgs Small Wheel Loader with CE (SWM618)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：SWM618
  • Type：Small Loader
  • Rated Bucket Capacity：0.7m3
  • Min Turning Radius (mm)：4532
  • Dumping Height (mm)：3250
  • Rated Power：44kw
  • Wheel Base (mm)：2070
  • Overall Dimension (L*W*H)：5280*1870*2730mm
  • Drive Means：4WD
  • Rated Speed of Engine (Rpm)：2200
  • Transport Package：Nude Packing
  • Specification：CE
  • Trademark：Kudat
  • Origin：China
  • HS Code：8429
  • Production Capacity：500PCS,Year

Description

Main Technical Parameter of SWM618ItemParameterRated load (kg)1200Bucket capacity (m 3 )0.7Wheel tread (mm)1480Wheel base (mm)2070Min turning radius (mm)left4532
right4332Min ground clearance (mm)270Dumping height (mm)Tooth3180
Toothless3250Corresponding dumping reach (mm)Tooth910
Toothless810Lifting time (s)4.75Hydraulic cycle time (s)7.57Maximum excavating force (KN)Bucket40.9 Swimming arm22.5Drive modeFour are DriveMachine weight (kg)3916Overall dimensions (mm) (Length*width*height)5280*1870*2730Engine modelZH4100Y4Rated power of engine (kw)44Rated speed of engine (rpm)22001200kgs Small Wheel Loader with CE (SWM618)
