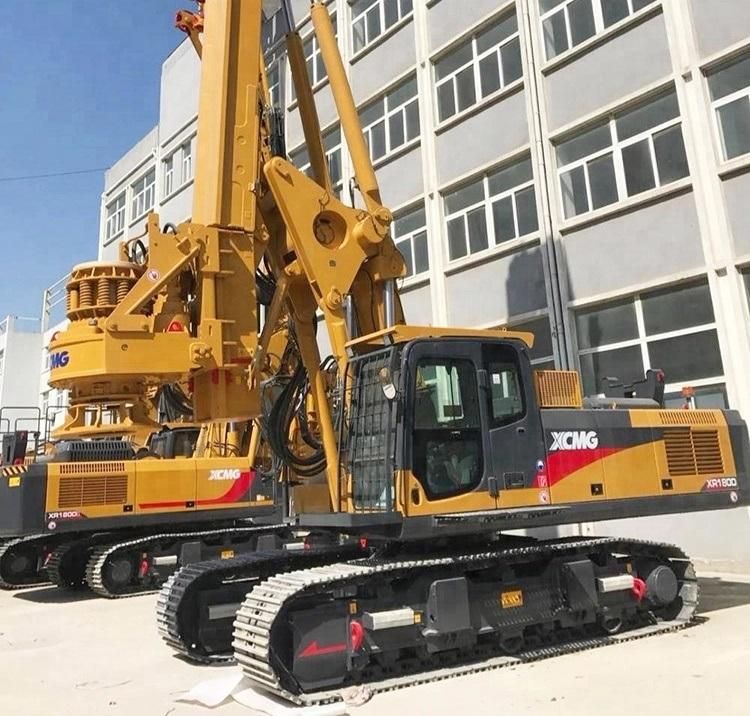

New Xr180d 60meters Rotary Drilling Rigs with 180knm Torque
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Rotary Drilling Ring
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：90kw
- Noise：With Noise
Base Info
- Model NO.：XR180D
- Certification：EPA, CS
- Condition：New
- Chassis：Oriemac
- Depth：60meters
- Torque：150kn.M

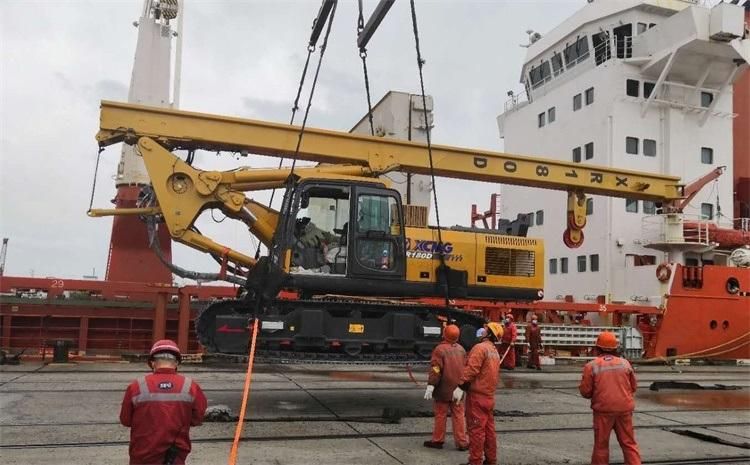

- Transport Package：Nude Packing
- Specification：7250*2580*3290mm
- Trademark：ORIEMAC
- Origin：China
- HS Code：87051092
- Production Capacity：3000 Sets,Month
Description
DescriptionUnit Parameter value Max. drilling diameter mm 1800 Max. drilling depth m standard configuration (5-section friction Kelly bar)46 optional configuration (4-section-locking Kelly bar) Allowable luffing scope (from center of drill rod to slewing center) mm 3560~3900 Drilling rig dimension in working condition (L*W*H) mm 8350*4200*20480 Drilling rig dimension in transport condition (L*W*H) mm 14255*3000*3455 Weight of overall unit (standard configuration, excluding drilling tool) t 58 Engine Model CUM-MINS QSB6.7 Rated power/speed kW 194/(2200r/min) Max. working pressure of hydraulic system MPa 35 Rotary drive Max. torque kN.m 180 Rotational speed r/min 7~27 Crowd cylinder Max. Pushing force kN 160 Max. Pulling force kN 180 Max. stroke mm 5000 Main winch Max. pulling force kN 180 Max. single-rope speed m/min 65 Diameter of the steel wire rope mm 180
