Piling Rigs Jove 2800mm Diameters 90meters Rotary Drilling Rigs 360kn. M
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Rotary Drilling Ring
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：90kw
- Noise：With Noise
Base Info
- Model NO.：jvr360z
- Certification：EPA, CS
- Chassis：Cat
- Depth：102meters
- Torque：390kn.M
- Transport Package：Nude Packing
- Specification：7250*2580*3290mm
- Trademark：Jove
- Origin：China
- HS Code：87051092
- Production Capacity：3000 Sets,Month
Description
Basic Info.
Model NO. jvr360z Certification EPA, CS Chassis Cat Depth 102meters Torque 390kn.M Transport Package Nude Packing Specification 7250*2580*3290mm Trademark Jove Origin China HS Code 87051092 Production Capacity 3000 Sets/MonthProduct Description

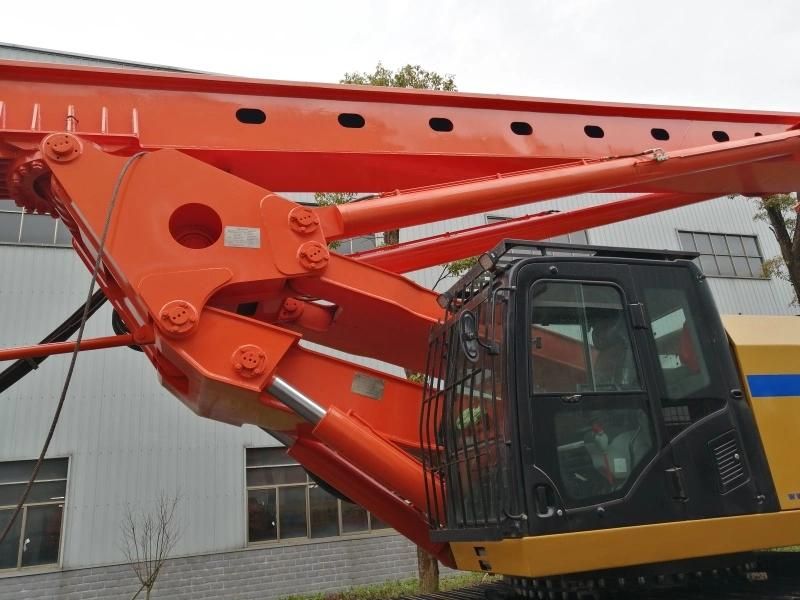

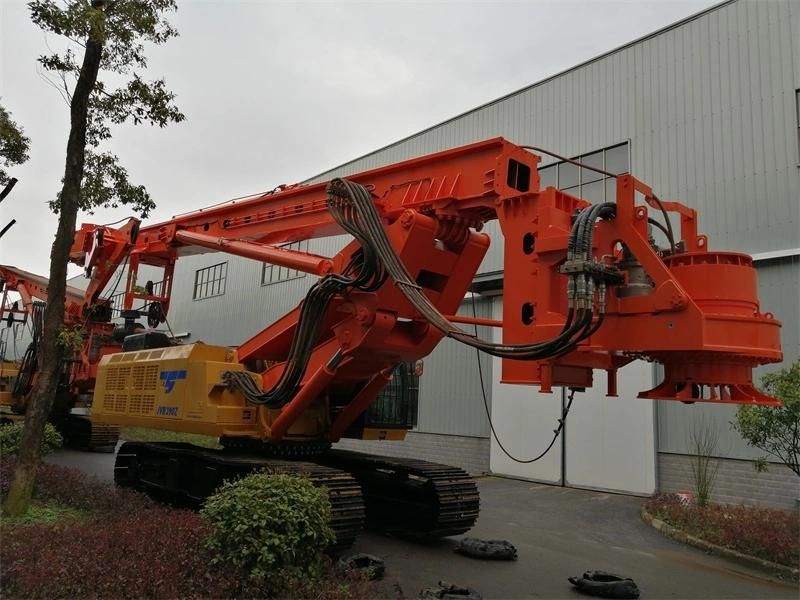

JVR390Z 102meters depth Rotary Drilling Rig with 390Kn.m
15 Liter Caterpillar turbo charger engine, combining ACERTTM technology with new economy model to provide endsville andremarkable power and fuel efficiency.
Adopting Parallelogrammast-moving mechanism, large triangle supporting type for mast cylinder supporting and mast falling backward which do not only take full advantage of stability structure of large triangle supporting, but also very convenient for transportation.
A variety of drill pipe and tool for options, and can satisfy deep bore, hard soil condition construction.
Based on industry internet, adopting intelligent service platform control technology to install intelligent cloud service platform terminal which anytime can know online the situation of operation and location of drilling rig to provide automatic control, information query and monitoring services.
| Model | JVR390Z |
| Max. output torque (KN.m) | 390 |
| Max. drilling depth (m) | 102 |
| Max. drilling diameter (mm) | 2800 |
| Engine brand | CAT |
| Engine model | C15 ACERT |
| Engine power (KW) | 403 |
| Main pump flow rate | 2×392 L/min@2100rpm |
| Undercarriage model | Self-made undercarriage |
| Traction force (KN) | 707 |
| Drilling speed (rpm) | 6 - 26 |
| / Max. crowd push force (KN) | 380 / 380 |
| Stroke of sledge (mm) | 6200 |
| ()Main winch pull (1st layer) | 377 |
| Main winch wire rope dia. (mm) | Φ36 |
| Max. main winch line speed (m/min) | 60 |
| ()Aux. winch line pull (1st layer) (KN) | 103 |
| Aux. winch wire rope dia. (mm) | Φ20 |
| Aux. winch line speed (m/min) | 69 |
| / Overall width in drilling position (mm) | 4700 / 26336 |
| // Overall L/H/W transport position (mm) | 19154 / 3200 / 4130 |
| ()Total weight (t) | 115 |
