New Xs123 12ton Road Roller Full Hydraulic Single Cylinder Roller

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Type：Road Roller
Working Method：Vibration
Axle：Single Drum Roller
Grinding Wheel Type：Sheep Foot Roller
Compaction Depth：35cm
Engine Type：Diesel Engine

Base Info

Model NO.：XS123
Travel Speed：40cm,s
Centrifugal Force：40KN
Certification：EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
Condition：New
Engine：Shangchai
Tire Specification：9.0-12-20pr
Max Operating Weight：14ton
Transport Package：Nude, Suitable for Shiping
Specification：ISO
Trademark：Oriemac
Origin：Jiangsu, China
HS Code：84294019
Production Capacity：3000 Sets,Month

Description

Type

Unit

Specifications

Operating weight

kg

12000

Weight on front drum

kg

6700

Static linear load

N/cm

308

Speed range

km/h

0~10.4

Theoretical gradeability

%

45

Min. external turning radius

mm

6800

Steering angle

°

±30

Oscillating angle

°

±10

Vibration frequency(L/H)

Hz

30/35

Nominal amplitude(H/L)

mm

1.80/0.9

Excitation force(H/L)

kN

290/180

Drum diameter

mm

1523

Drum width

mm

2130

Engine model

Cummins 4B3.9

Type

Water cooled, turbo-charged,air-air intercooling

Rated power @2200r/min

kW

93

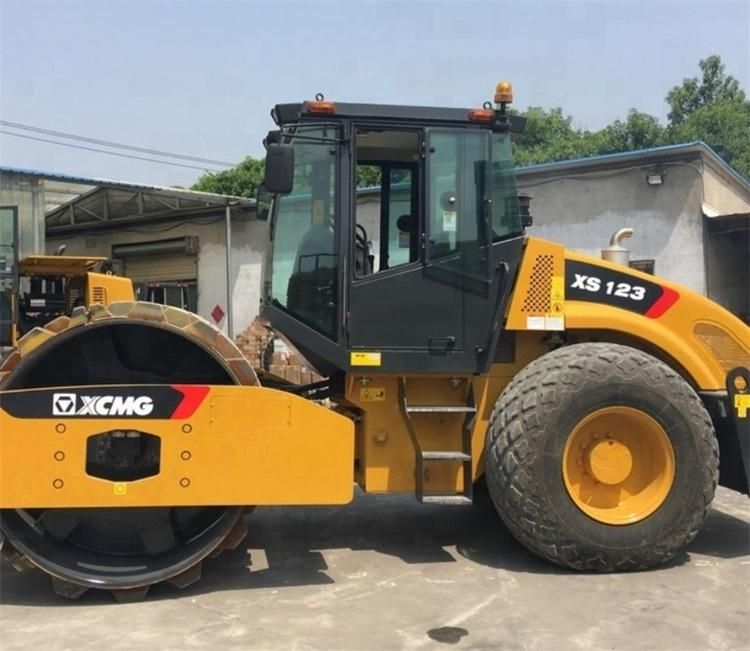

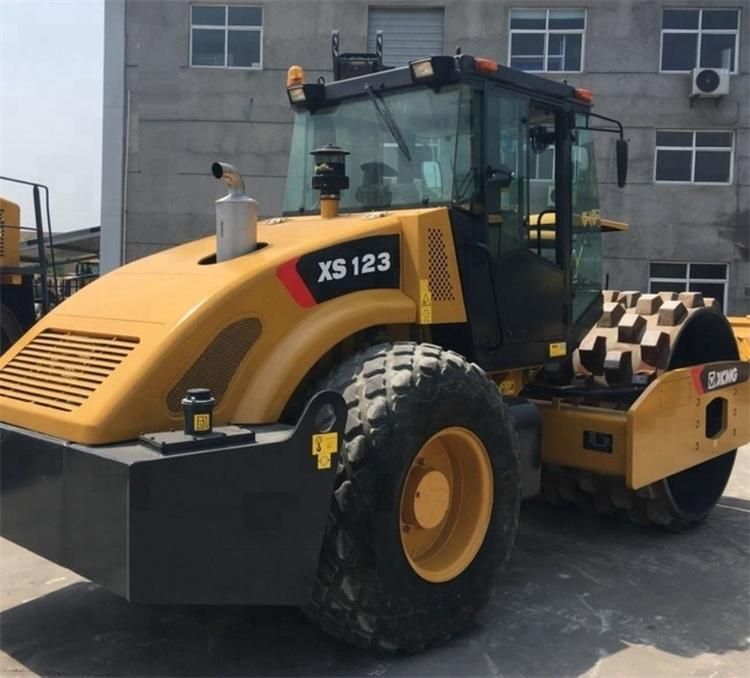

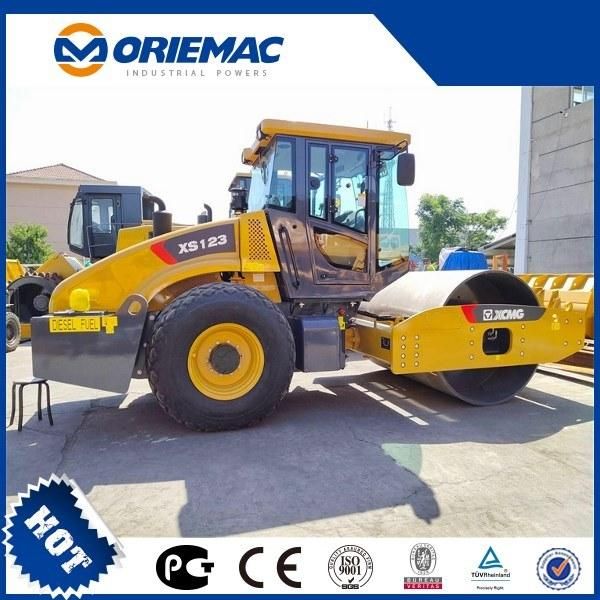

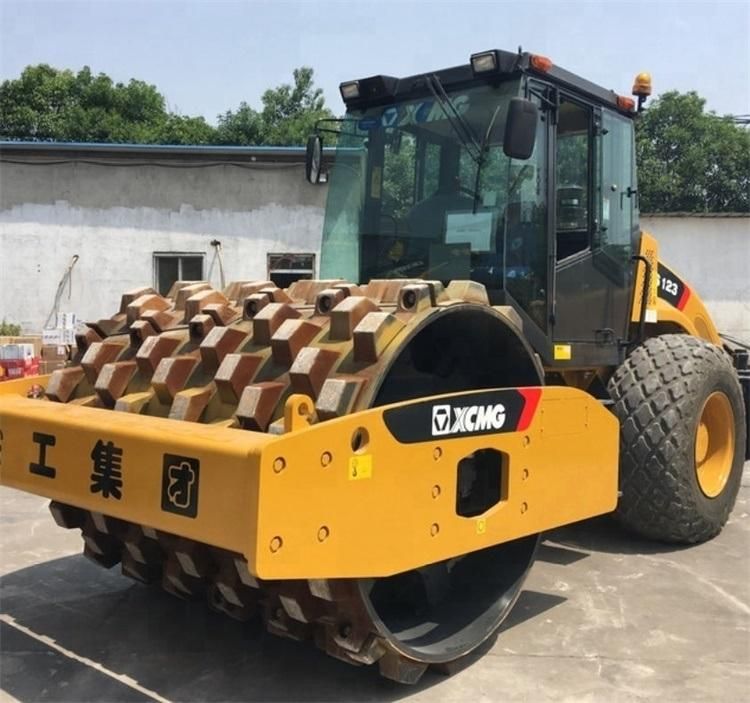

Photos
New Xs123 12ton Road Roller Full Hydraulic Single Cylinder Roller
