• Model NO.：HQ40-28
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Large-Scale
• Certification：CE, SGS, Rops&Fops
• Condition：New
• Overall Dimension：7500X2300X3769
• Power：85kw
• Operating Weight：7200kg
• Transport Package：1 Units in One Hq40 Container
• Specification：CE, ISO, SGS, ROPS&FOPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：5000 Units,Year

 1.Main technical specificationBucket Capacity(m³)1.6Operating Weight(kg)7200Bucket Width(mm)2200Bucket typeHeavy-duty bolt on teethRated Load(kg)2800kgWheel base(mm)2430Track(mm)1700Driving ModeHydraulic converter, four wheel driveOverall Dimensions(mm)LxWxH: 7500x2300x37692.Engine DetailsModelCHINA YUNNEI Or YUCHAI OR CUMMINS EngineEngine TypeIn-line arrangement, water-cooled, four-cycle diesel EngineRated Power(kw)85Rated Speed (rpm)r/p.minOptional EngineCUMMINS(4BTA3.9-C100)/YUNNEI (YN48GBZ)3.Transmission SystemHydraulic converter + gearbox+drive shaft4.Operating SpecificationsSteering SystemArticulated Frame with hydraulic power steeringMin Turning Radius(mm)3890Driving SystemHydraulic converter, four wheel driveEuropean,USA, CAT quick coupling systemJoystick control5.Brake SystemService BrakeFour Wheel Hydraulic spread-shoed brakeParking BrakeHand operated(Disc brakes)6.TireModel:16/70-24Optional Model17.5-25

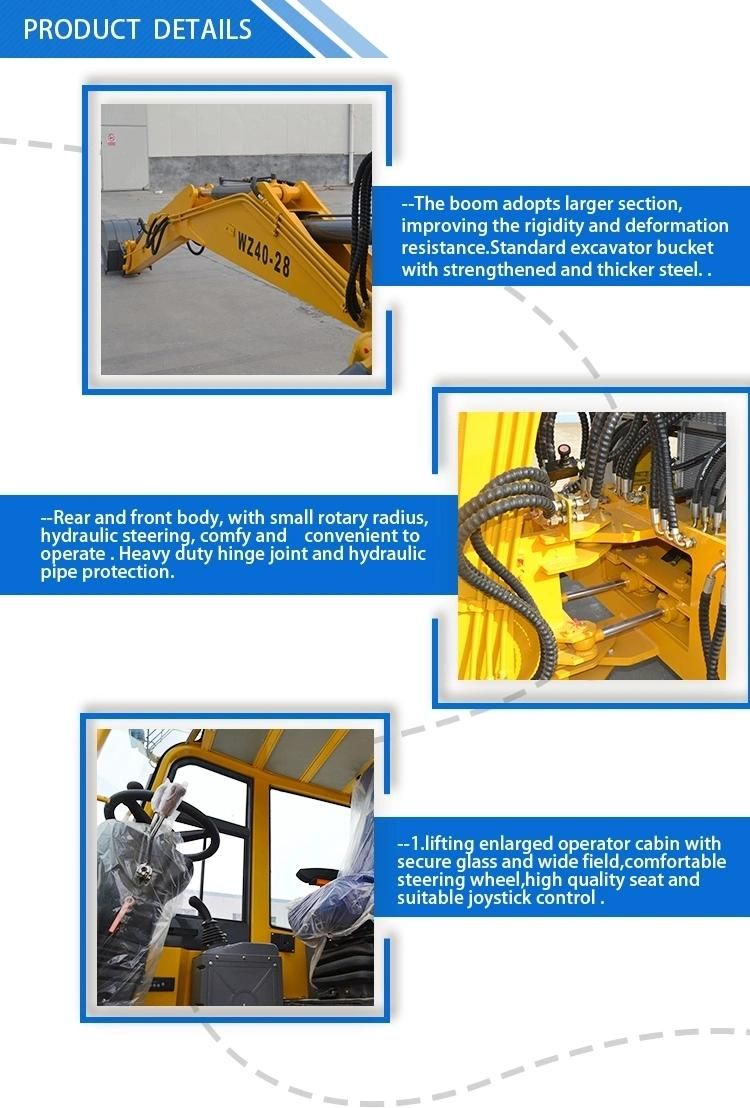

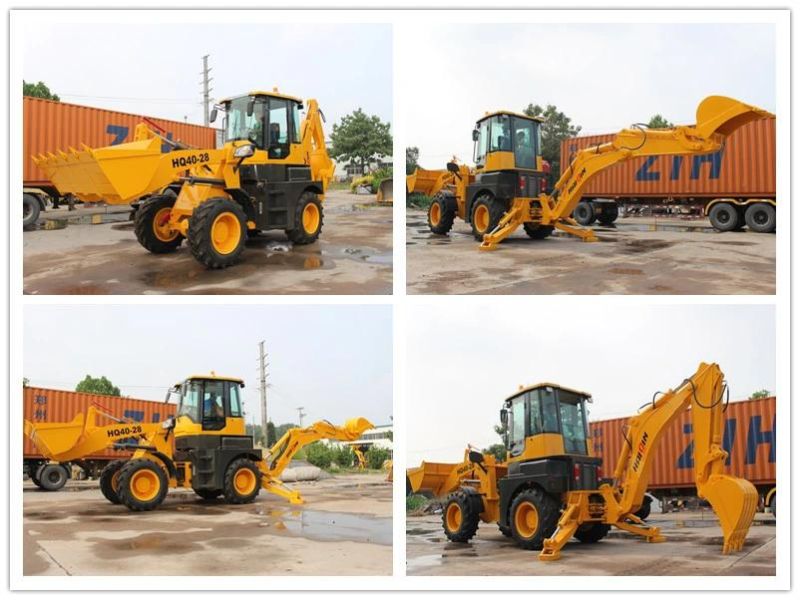

3, More photos of HQ40-28 Backhoe Loader :

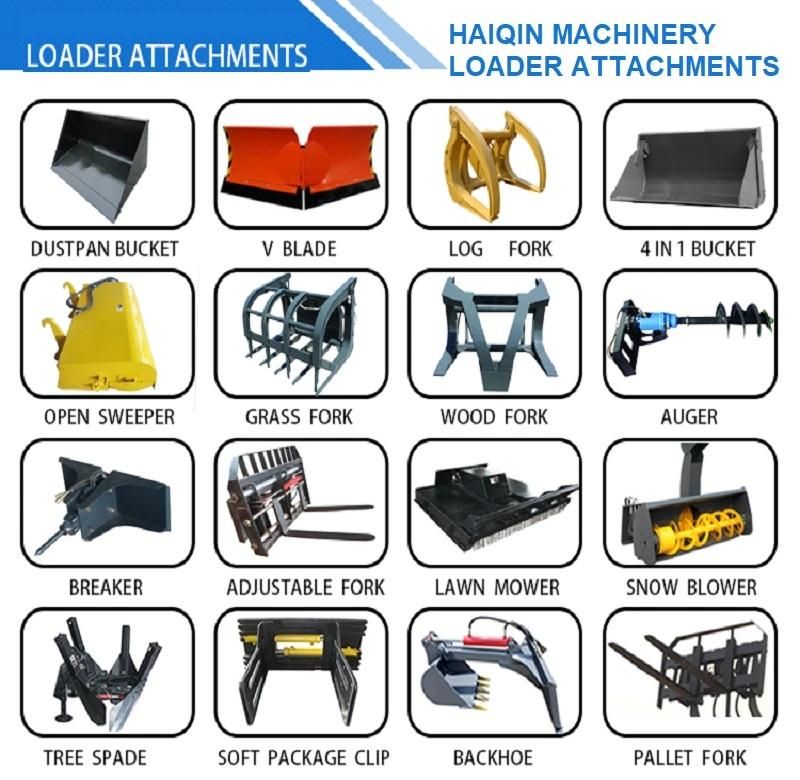

4, Optional Attachments for HQ40-28 Backhoe Loader

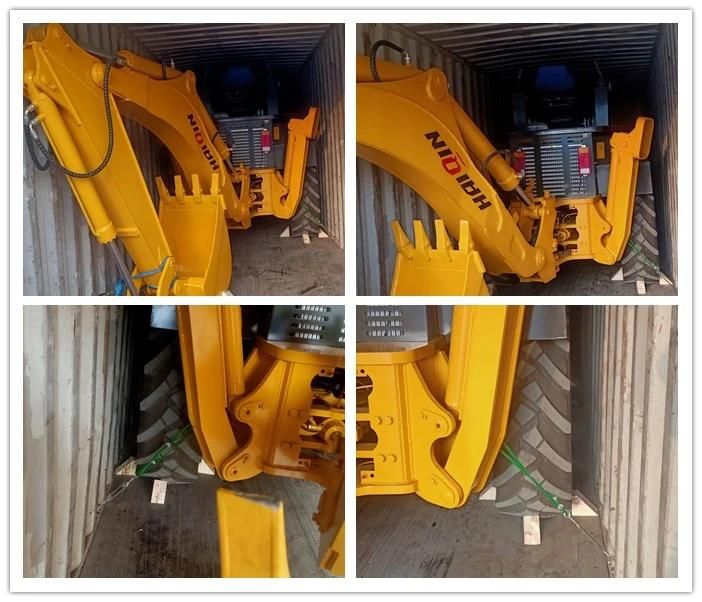

4, Professional Loading and Packing of HQ40-28 Backhoe Loader





5, Factory introduction of Haiqin Machinery

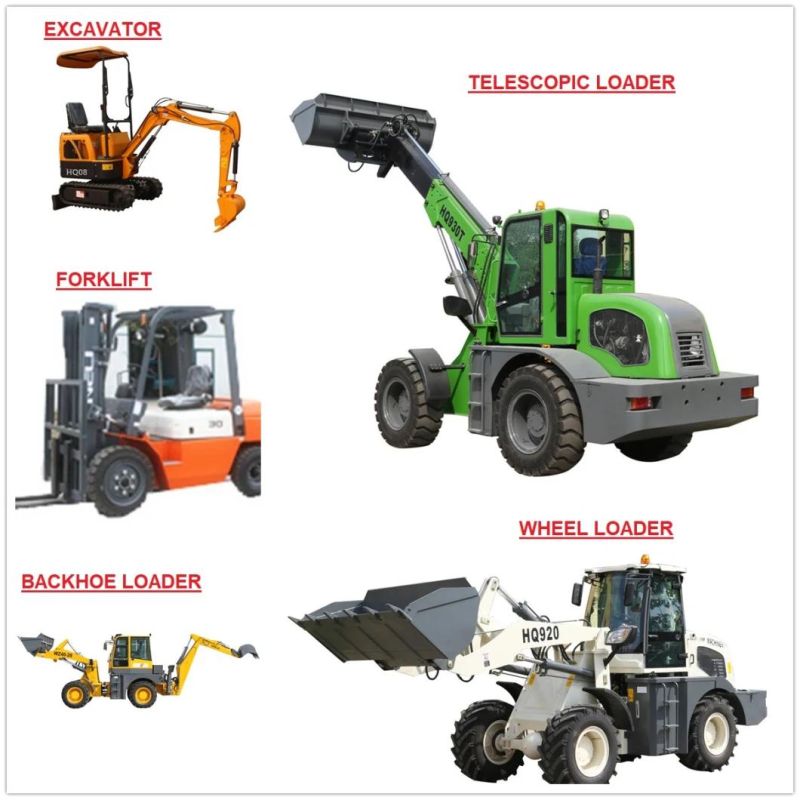

6, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY




7, Certificate of Haiqin Machinery








8,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
