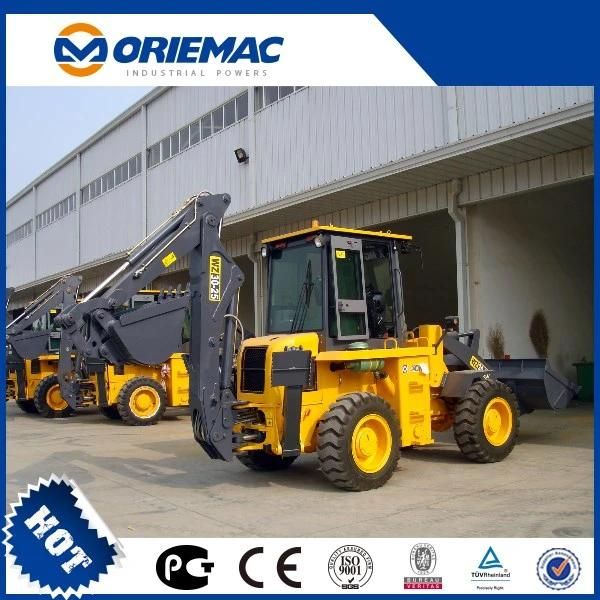

China Manufacturer 4X4 Wz30-25 Small Mini Excavator Backhoe Loader with Bucket
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service:Yes
- Warranty:1 Year or 2000 Working Hours
- Certification:TUV, UL, ISO, RoHS, CE
- Condition:New
- Rated Load:750 Kg
- Transmission:Power
Base Info
- Model NO.:WZ30-25
- Load and Unload Mode:Rear Dump
- Walking Mode:Wheeled
- Type:Medium-sized Loader
- Size:Wz30-25
- Engine:Yuchai Engine
- Rated Power:65 Kw
- Operating Weitght:9500 Kg
- Bucket Capacity:1 Cbm
- Digger Capacity:0.3 Cbm
- Dumping Clearance:2700 mm
- Dumping Reach:950 mm
- Transport Package:Nude
- Specification:ISO9001-2008, GOST
- Trademark:ORIEMAC
- Origin:Jiangsu, China
- HS Code:84295100
- Production Capacity:4000PCS,Month
Description
Basic Info.
Model NO. WZ30-25 Load and Unload Mode Rear Dump Walking Mode Wheeled Type Medium-sized Loader Size Wz30-25 Engine Yuchai Engine Rated Power 65 Kw Operating Weitght 9500 Kg Bucket Capacity 1 Cbm Digger Capacity 0.3 Cbm Dumping Clearance 2700 mm Dumping Reach 950 mm Transport Package Nude Specification ISO9001-2008, GOST Trademark ORIEMAC Origin Jiangsu, China HS Code 84295100 Production Capacity 4000PCS/MonthProduct Description
China Manufacturer 4X4 Wz30-25 Small Mini Excavator Backhoe Loader with BucketThe WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technical in domestic and international. Having adopted four wheel, hydraulic torque converter, hydraulic steering system, hydraulic. It is extensively used in the road maintenance, farm and developments getting clay for making brickiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up, etc. This machine has below characteristics:
Description | Specifications | Unit |
Bucket capacity(heaped) | 1.0 | m3 |
Digger capacity | 0.3 | m3 |
Dumping clearance | 2700 | mm |
Dumping reach | 950 | mm |
Max. steering angle | ±35 | ° |
Max. steering angle of dig working device | ±85 | ° |
Tracing speed i(F/R) | 0-6.2 | km/h |
Tracing speed ii(F/R) | 0-12 | km/h |
Tracing speed iii(F/R) | 0-20 | km/h |
Tracing speed iv(F/R) | 0-33 | km/h |
Back ispeed | 0-8 | km/h |
Back iispeed | 0-28.5 | km/h |
Diesel | Yuchai | |
Model | YC4108 | |
Modality | ||
Rated power | 65 | kw |
Rated speed | 2500 | r/min |
Wheel base | 2600 | mm |
Tread | 1700 | mm |
Tires | 16/70-24 | |
Max. digging depth | 4400 | mm |
Max. digging radius | 5471 | mm |
Overall dimension(L x W x H) | 8000 x 2200 x 3350 | mm |
Operating weitght | 9500 | kg |
