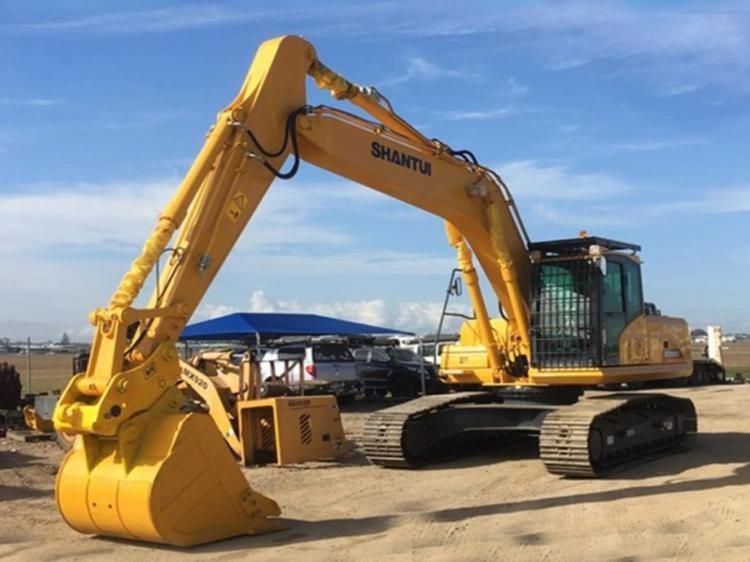

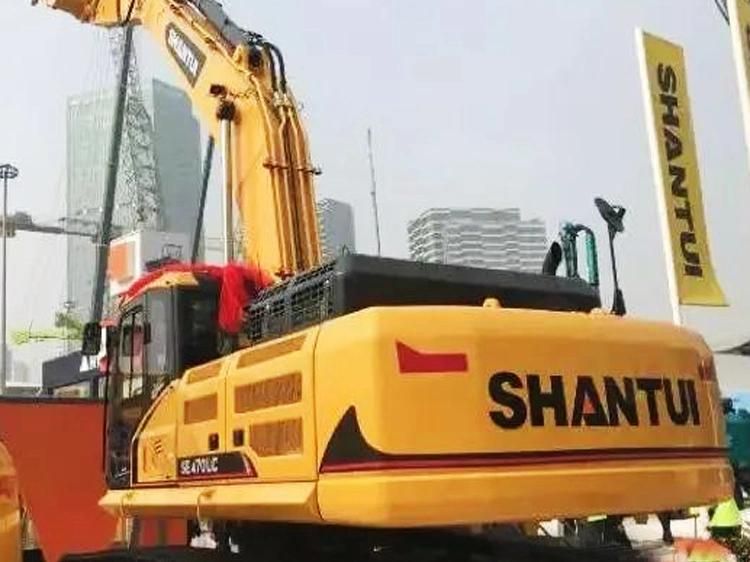

Heavy Se470LC 46800kg 0.55~2.5 (2.2) M3 Bucket Shantui Excavator
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.55~2.5cbm
Base Info
- Model NO.：SE470LC
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight：46800kg
- Maximum Digging Height：10785mm
- Transport Package：Nude Package
- Specification：9160x1040x2377mm
- Trademark：Liugong
- Origin：China
- HS Code：8429590000
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. SE470LC Size Large-Scale Certification CE, ISO9001: 2000 Condition New Operating Weight 46800kg Maximum Digging Height 10785mm Transport Package Nude Package Specification 9160x1040x2377mm Trademark Liugong Origin China HS Code 8429590000 Production Capacity 50000PCS/YearProduct Description
Heavy Se470LC 46800kg 0.55~2.5 (2.2) M3 Bucket Shantui ExcavatorFeature:Enhanced working device
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions
Optional attachments
Breaking hammer, ripper, timber grab, stone grab, hydraulic tamper, quick change coupling, and breaking hammer pipeline.
| Comparative item | SE470LC (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 12110 |
| Ground length (During transport) (mm) | 6660 |
| Overall height (To the top of boom) (mm) | 3745 |
| Overall width (mm) | 3360 |
| Overall height (To top of cab) (mm) | 3330 |
| Ground clearance of counterweight (mm) | 1395 |
| Minimum ground clearance (mm) | 590 |
| Tail turning radius (mm) | 3720 |
| Track length (mm) | 5315 |
| Track gauge (mm) | 2760 |
| Track width (mm) | 3360 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 3190 |
| Distance from slewing center to tail (mm) | 3675 |
| Working range | |
| Maximum digging height (mm) | 10785 |
| Maximum dumping height (mm) | 7600 |
| Maximum digging depth (mm) | 7815 |
| Maximum vertical digging depth (mm) | 6295 |
| Maximum digging distance (mm) | 12040 |
| Maximum digging distance at ground level (mm) | 11830 |
| Working device minimum turning radius (mm) | 4840 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | QSM11(China III) |
| Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 10.8 |
| Rated power (kW/rpm) | 250/2000 |
| Hydraulic system | |
| Type of hydraulic pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 360×2+27 |
| Bucket | |
| Bucket capacity (m³) | 0.55~2.5(2.2) |
| Swing system | |
| Maximum swing speed (r/min) | 10 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 242 |
| Bucket digging force (KN) | 288.5 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 46800 |
| Ground pressure (kPa) | 81.9 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.3/5.6 |
| Traction force (KN) | 364 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 620 |
| Cooling system (L) | 34 |
| Engine oil capacity (L) | 35 |
| Hydraulic oil tank/system capacity (L) | 366/460 |
