• Model NO.：TFC-1000
• Color：White

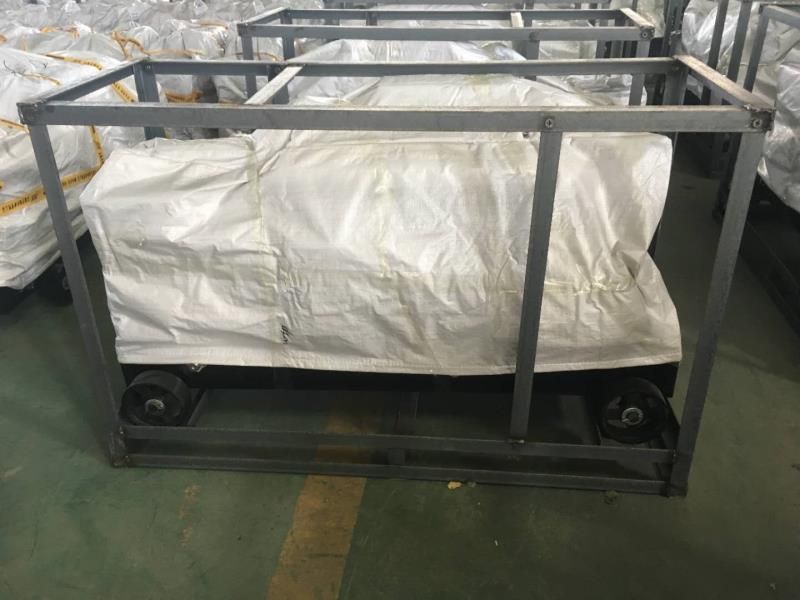

• Transport Package：Standard Wooden Case
• Specification：2400*1900*1960mm
• Trademark：TECON
• Origin：China
• HS Code：84743100

Basic Info.

Model NO. TFC-1000 Color White Transport Package Standard Wooden Case Specification 2400*1900*1960mm Trademark TECON Origin China HS Code 84743100

Product Description

Product Description Automatic control and weight cell loading; material weight mixing ratio precise, simple operation, saving labor, great reliability; Heavy duty and powerful mixer, easily to mix sand, cement, water and foam agent, as well as high efficiency to achieve continuous mixing and continuous work; Up to 20bar high pumping pressure to meet high floor pumping requirement; Foam agent can be added into the mixer continuously, high working efficiency. Main Features

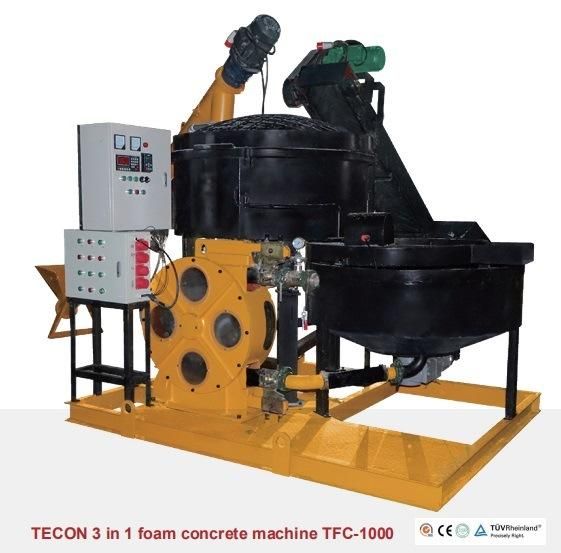

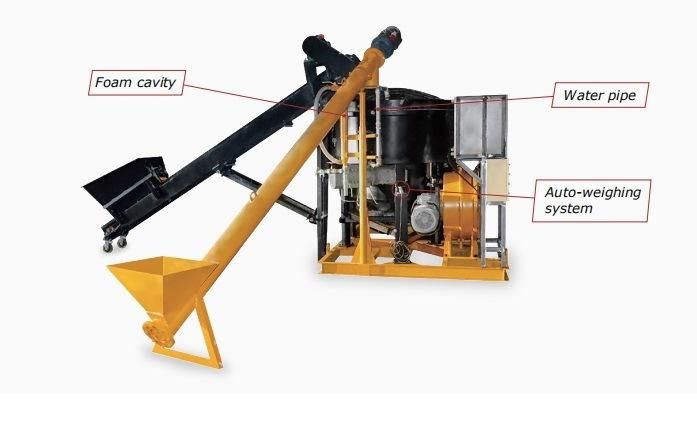

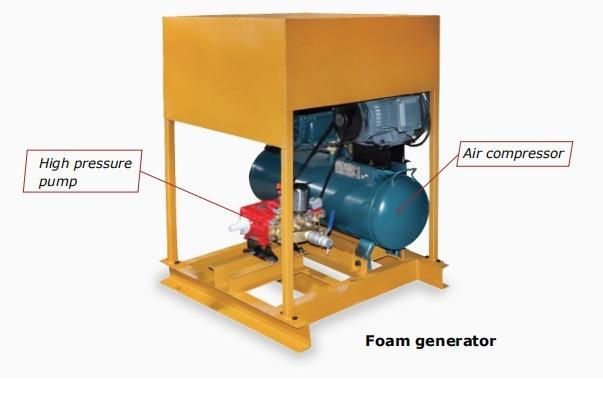

 TECON 3 in 1 foam concrete machine TFC-1000 is composed of mixer, agitator, foam generator, hose pump, equipped with screw feeder, belt conveyor and submersible pump. The equipment is equipped with a weighing sensor and automatic batching system, which can set each batching weight and realize automatic feeding and full mixing. The process is completely controlled by the auto-weighing system. After the preparation work is completed, press the automatic button to start the automatic working. The mixer is started to mixing. Sand, cement, water and foaming agent are loaded in turn and mixed quickly after reaching the set weight. After the mixing is even, open the discharge door. The mixture flow down into the lower screen of the agitator. The low speed mixing blades are equipped in this agitator. After the mixture completely flow down, close the door and continue the next batch mixing.

Note: The Foam concrete's other applications:

1. External wall thermal insulation
2. Thermal insulation roofing
3. Thermal flooring
4. Upstanding beam foundation ditches filling
5. Sound insulation and fire protection walls
6. Playground and track construction
7. Sound insulation layer, tunnel lining filling
8. Cellar, basement and arch filling
9. Sewers and Drains filling
10. Horizontal floor heightening
11. Water tank and fuel tank building
12. Platform filling and mending
13. Garden and rockeries
14. Foam concrete block
15. Foamed concrete precast, hollow wallboard castin
