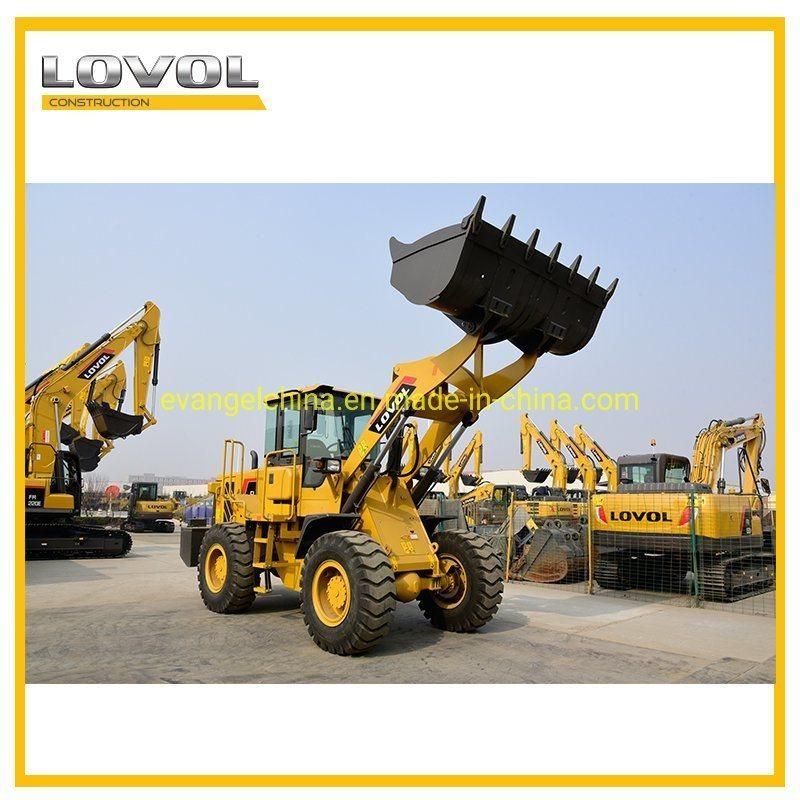

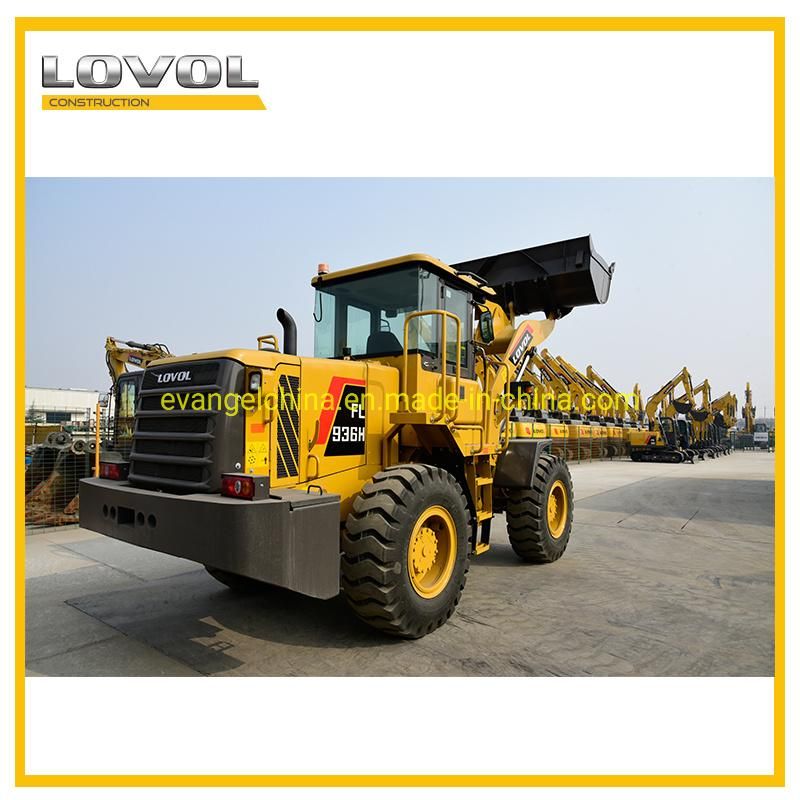

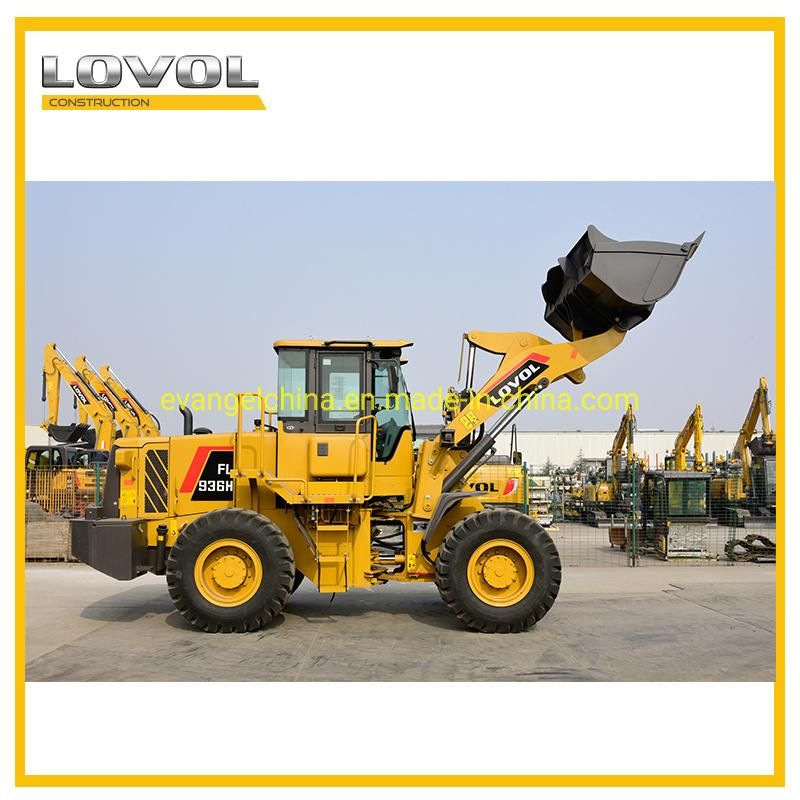

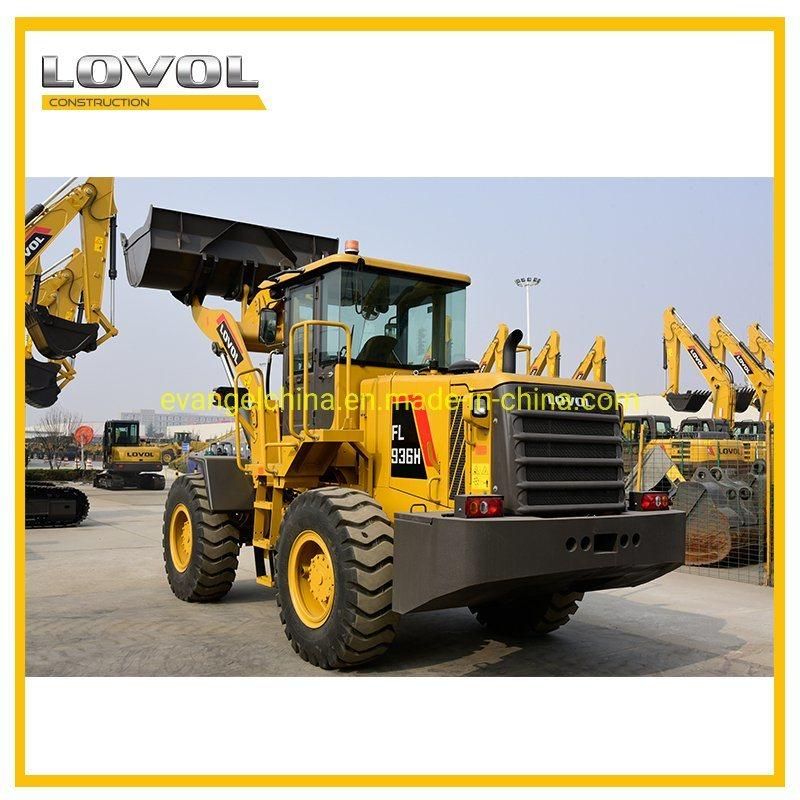

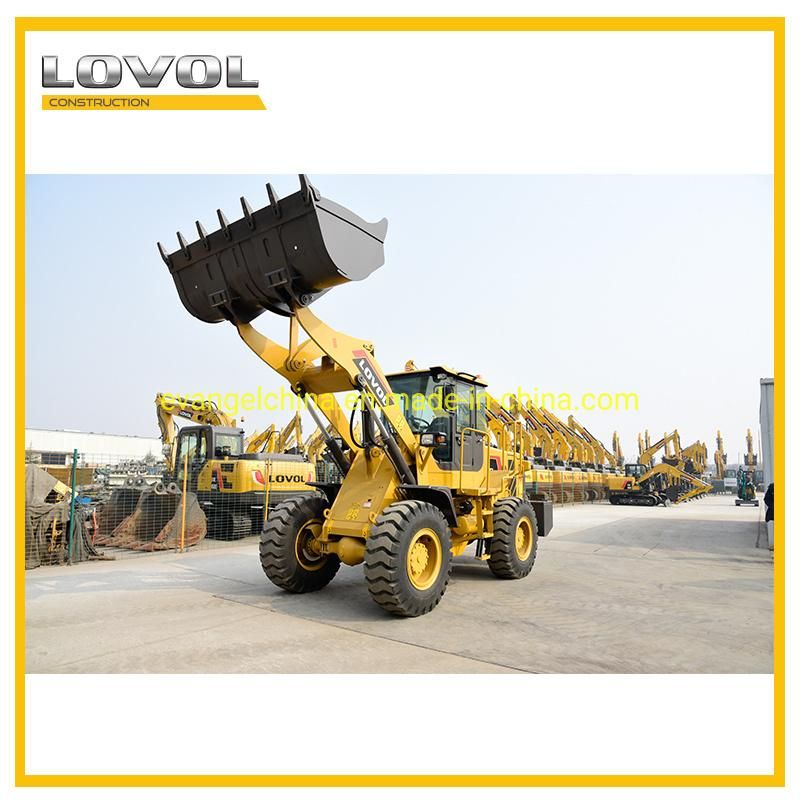

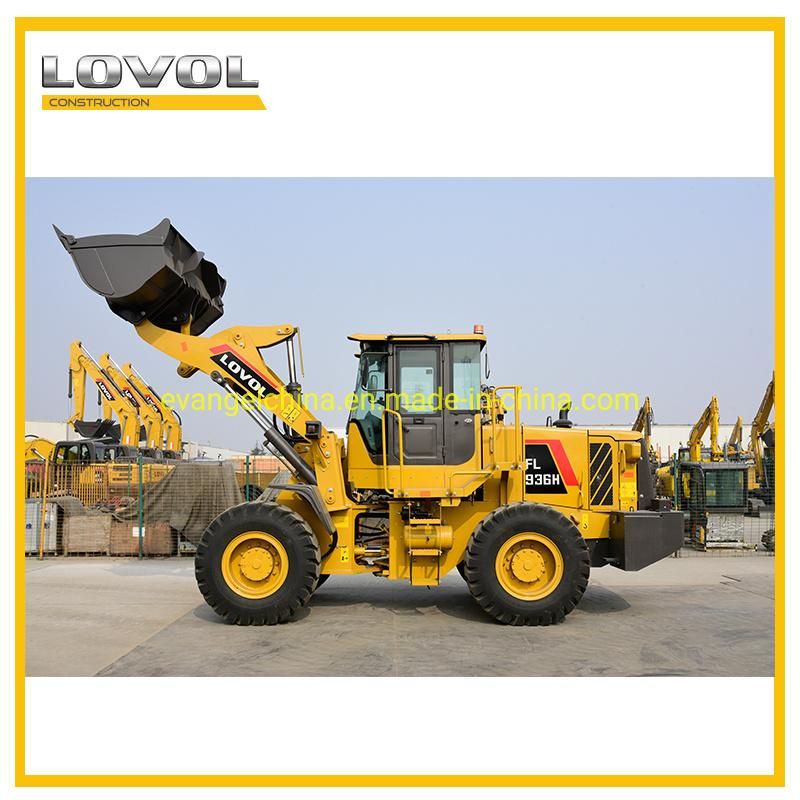

Foton Lovol 3 Ton Articulated Wheel Loader FL936h/936h

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Online Video Support
  • Warranty：One Year
  • Certification：ISO
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：FL936H
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Color：Yellow

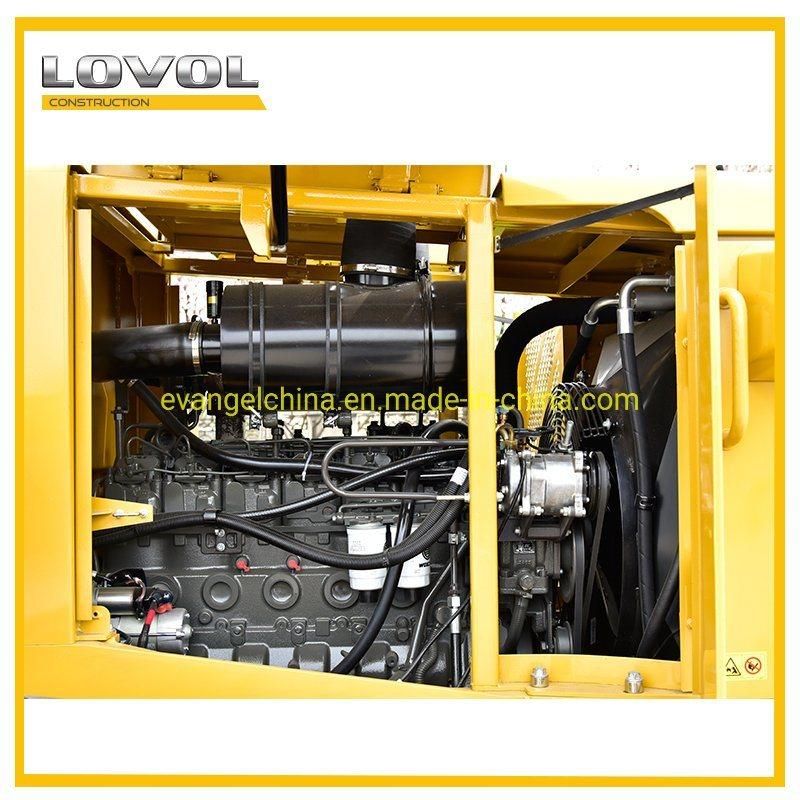

  • Engine：Weichai
  • Tyre：17.5-25
  • Operating Weight：10300kg
  • Displacement：6.754L
  • Emission：Stage II
  • Standard Bucket：2cbm
  • Max. Speed：39km,H
  • Transport Package：Nude Packing
  • Specification：7230*2425*3200mm
  • Trademark：LOVOL
  • Origin：China
  • Production Capacity：200units,Month

Description

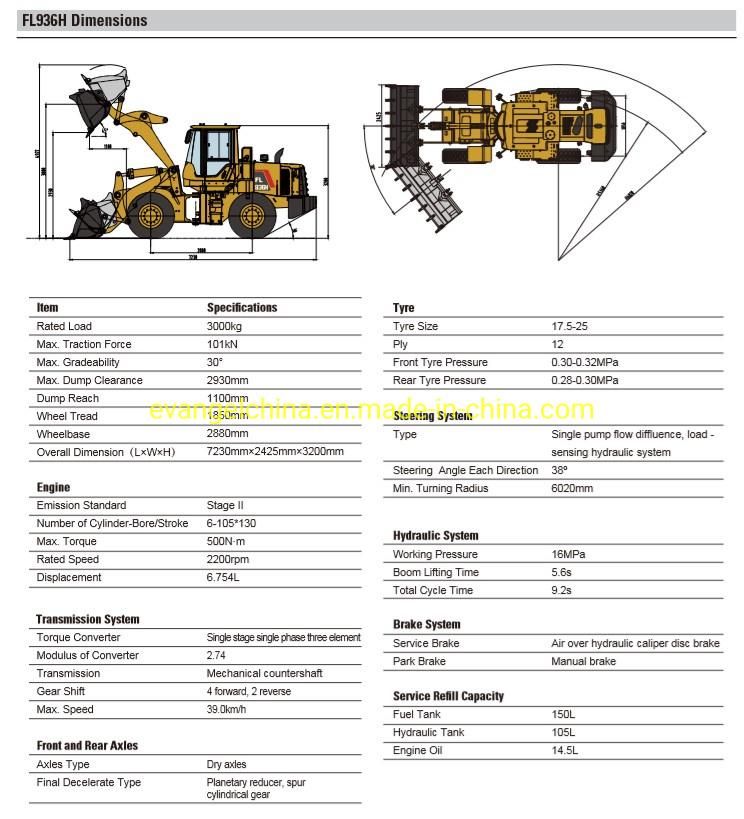

Main paramaterOperating mass(kg)10300Bucket capacity2.0Rated load(kg)3000Traction(kN)101Digging force(kN)98Gradeability30Unloading height(mm)2935Unloading distance(mm)1100Min. ground diatance(mm)340Wheel tread(mm)1850Wheelbase(mm)2880Bucket outer turning radius(mm)5990Outline distance(mm)7230*2425*3200Foton Lovol 3 Ton Articulated Wheel Loader FL936h/936h
