• Model NO.：LT40T
• Type：Large Loader
• Operating Weight：39.6 T
• Max. Lifting Height：3300
• Fork Size：1600*mm350*mm135mm
• Wheelbase：4200mm
• Engine：Cummins,Weichai
• Tire Type：29.5-25
• Rated Power：247kw,2200rpm
• Max.Dumping Height：3300mm
• Color：Yellow
• Engine Power：247 Kw
• Transport Package：in Nude
• Specification：10180mm*3450mm*3900mm
• Trademark：LTMG
• Origin：China
• HS Code：84295100
• Production Capacity：300sets,Month

The specification of 40 ton stone forklift handler wheel loaderModelLT 40TOperating weight 39,600kgEngine modelWD12G336E211Rated engine power247KWRated rotate speed2200r/ninMax.torque1350N.mMax traction≥191KNMax.dumping height3300mmRated load40TDriving speed Forward/Reverse 10-6.5km/hForward/Reverse 20-9km/hForward/Reverse 30-20.5km/hForward/Reverse 40-36.5km/hGrade ability≤25°Turning angle35°±1°Overall length10180mmOverall width3450mmOverall height3900mmWheel base4200mmTrack base3200mmdimension of fork1600*mm350*mm135mmCycling time19.7sTire type29.5-29
Product Features

1.Powerful engine: Weichai Engine, 6 Cylinders 4-stroke, Turbocharged Intercooled, with multinomial patents, high efficiency low noise and cooling technology, strong power, energy conservation and environmental protection.Synthesize multilevel compound desert air filter technology, especially for using in dusty environment.Cummins engine, Steyr engine, Shangchai(CAT technology) engines are optional.

2.Pressurized cab: Cab with broad view, large space and noise-isolation and vibration absorber meets all kinds of operation.Radio with MP3 function and speaker and the Joystick control system(Optional)ensure easy operation and more comfortable.

3.Hydraulic systems: To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively.Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

4.Brake systems: Four wheel double-line caliper disc braking system with a gas container in the back to ensure a safety and reliable operation.The Auto Cooling Technology on brake system to double assurance the safety and the rear view camera, ROPS/FOPS cab are optional.

5.Axle: Reinforced Q axle with bigger axle hub/gears features 50% stronger bearing capacity than the normal ones and can forbid the oil leak efficiently, high reliability and convenient to maintenance.

6.Transmission and torque converter: The Yitong transmission and the dual turbo Shantui hydraulic torque converter are easy to maintain, superior in the efficiency delivery and overload adaption, match with the Weichai engine perfectly.Hangzhou advance gearbox with ZF technique transmission is optional.

7.Optional attachment: Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

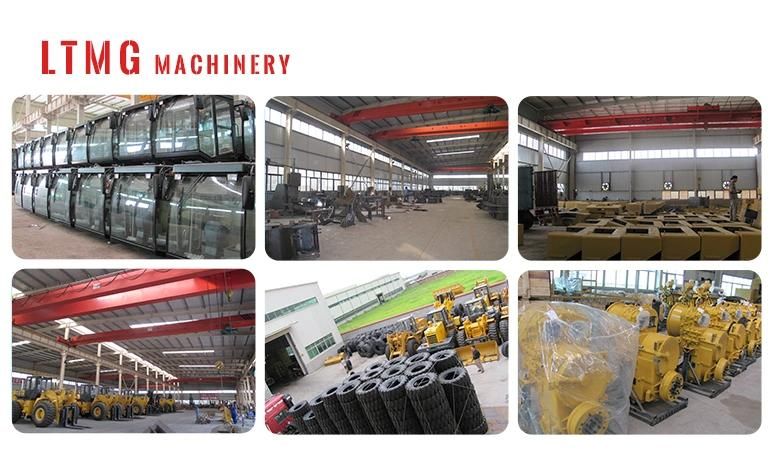

Our Factory

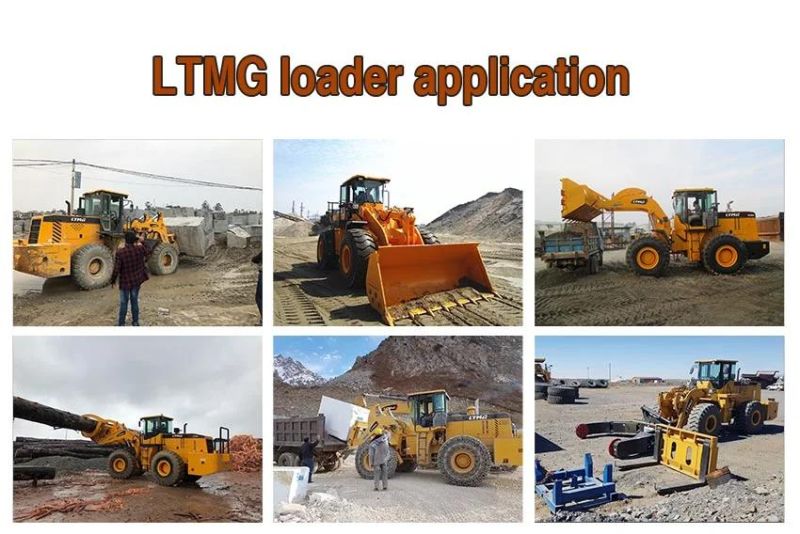

Product Application



After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
