Ltmg 5 Ton Zl50 Wheel Loader for Sale

Xiamen LTMG Machinery Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Rated Load：5, 000 Kg
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：LT958
  • Type：Large Loader
  • Engine：Cummins or Weichai
  • Rated Power：162kw,2000rpm
  • Bucket Capacity：3m3
  • Wheelbase：2820mm
  • Operating Weight：16, 100 Kg
  • Tire Type：23.5-25
  • Max.Dumping Height：3100mm
  • Overall Length：7460mm
  • Warranty：1 Year,2000 Working Hours
  • Color：Yellow
  • Transport Package：Container or by Bulk
  • Specification：7460mm*2870mm*3220mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：800sets,Year

Description

The specification of LTMG LT958 5 ton front end wheel loader ModelLT958Operating weight16, 100 kgRated load5, 000 kgBucket capacity3 m³Engine modelWEICHAI WD10G220E23(LT953) 2000RPMRated power162KWRated rotate speed2000 r/minMax. Torque745.3N. MBreakout force145KNForward I0-11.5km/hForward II0-38km/hReverse I0-16km/hGrade ability28°Overall length7460mmOverall width2870mmOverall height3220mmBucket width3000mmWheel base2820mmTrack base2260mmMin. Ground clearance450mmMax. Dumping height3100mmMax. Dumping reach1310mmHydraulic Torque converterSingle stage, 4elementsTransmissionPlanet-typeRaise time≤6.8sTotal≤12.5sTire type23.5-25 20PR


Product Features

1. Effective operation: Centered design, small turning radius, more flexible. The working efficiency is 15% higher than the traditional types.

2. Powerful engine: Weichai WD220E23 162KW Engine, low rated rotate speed Engine, strong power, energy conservation and environmental protection. Cummins engine, Steyr engine, Shangchai engine is optional.

3. Transmission and torque converter: The planetary Yitong transmission and the Shantui torque converter are easy to maintain, superior in the efficiency delivery and overload adaption.

4. Axle: Reinforced Q axle features larger carrying capacity and can forbid the oil leak efficiently, high reliability and convenient to maintenance.

Ltmg 5 Ton Zl50 Wheel Loader for Sale

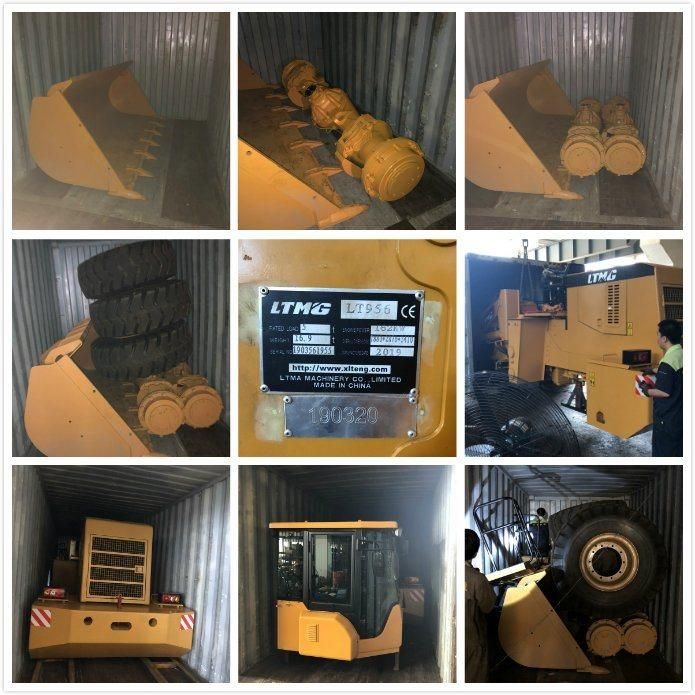

Shipping & Delivering

Ltmg 5 Ton Zl50 Wheel Loader for Sale

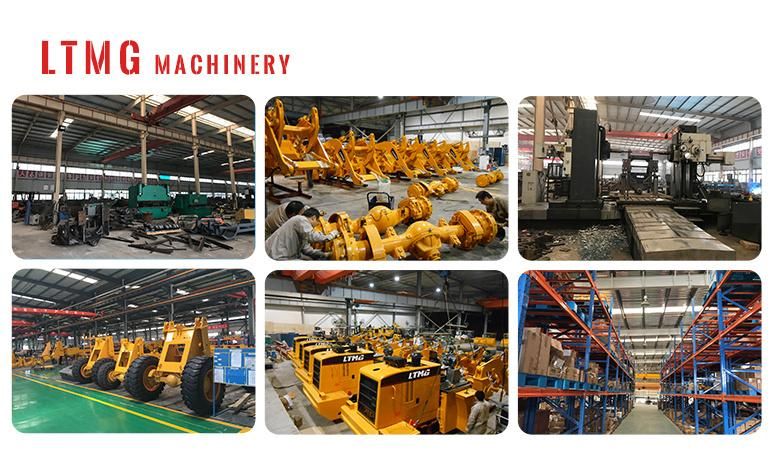

Our Factory
Ltmg 5 Ton Zl50 Wheel Loader for Sale

After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Ltmg 5 Ton Zl50 Wheel Loader for Sale


FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
