• Model NO.：LT955
• Type：Large Loader
• Bucket Capicity：3cbm
• Wheel Base：2820mm
• Track Base：2260mm
• Bucket Width：3000mm
• Product Name：Construction Equipment 5 Ton Front End Wheel Loade
• Product Type：Wheel Loader
• Engine：Weichai
• Attachments：Snow Bucket
• Operating Weight：16000kg
• Rated Power：162kw
• Load Capacity：5000kg
• Overall Length：7460mm
• Overall Width：2870mm
• Overall Hight：3220mm
• Color：Yellow
• Transport Package：Nude Packing
• Specification：7460*2870*3220mm
• Trademark：LTMG
• Origin：Xiamen, China
• HS Code：8429510000
• Production Capacity：400units,Month

The specification of 5 ton front end wheel loaderOperating weight16000kgRated load5000kgBucket capacity3m³Engine modelWEICHAI WD10G220E23Rated power162KWRated rotate speed2000r/minMax torque745.3N.mBreakout force145KNDriving speed Forward 10-11.5 km/hForward 20-38 km/hReverse 10-16 km/hGrade ability28Overall length7460mmOverall Width2870mmOverall hight3220mmBucket width3000mmWheel base2820mmTrack base2260mmMin. ground clearance450mmMax. drumping height3100mmMax. drumping reach1310mmTransmissionPlanet-typeRaise time≤ 6.8sTotal≤ 12.5Tire type23.5-25

Product Features

1. Powerful engine :
Weichai WD220E21 162KW Engine, strong power, energy conservation and environmental protection. Cummins engine, Steyr engine, Shangchai engine is optional.

2. Effective operation :
Centered design, small turning radius, more flexible. The working efficiency is 15% higher than the traditional types.

3. Easy to operate :
cabin equipped with broad view , large space and air conditioner, radio with MP3 function and speaker. Single -handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

4. Easy to maintain :
New design of skeleton structure hood. Wide-opening hood Makes servicing & maintenance of engine easier. Large distance between up and down articulated boards creates large maintenance space. Exclusive dust-proof layer and sealed articulated points make the loader more durable.

5. Hydraulic systems :
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively.

6. Customizing design :
Quick hitches for you special needs such as the log grapple, block fork, snow blade, jackhammer,larger bucket and so on. Maximum dumping height can be 4.5 meters.

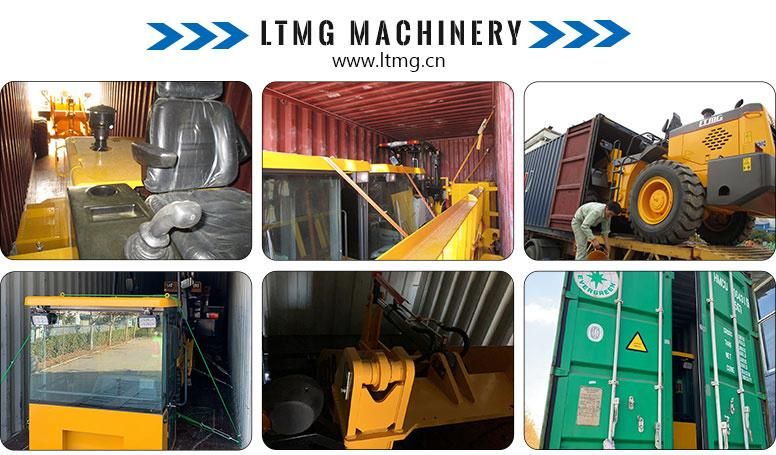

Packing & Delivery

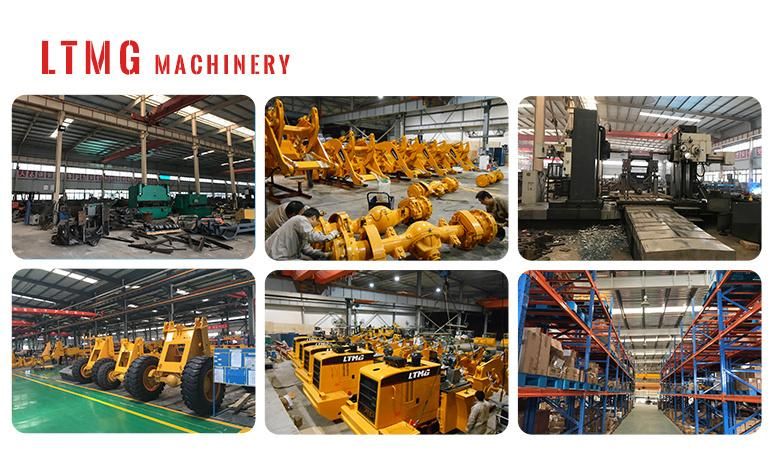

Our factory



Exhibition and Customers

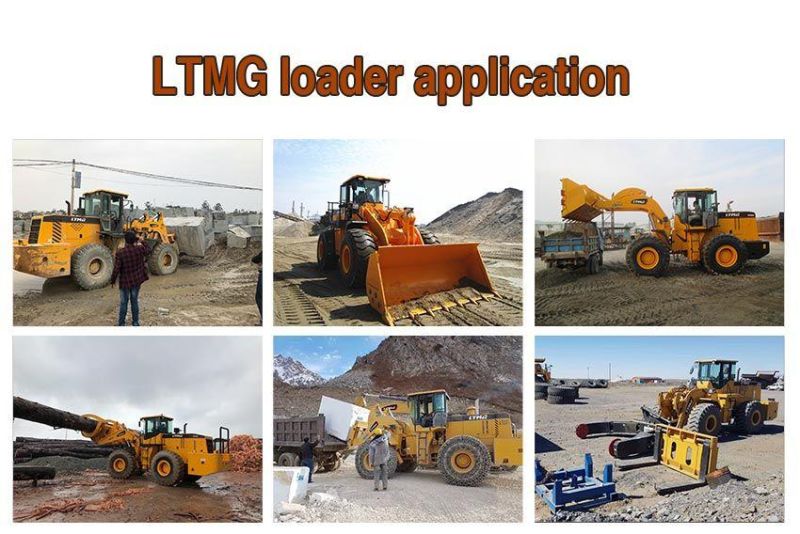

Product Application




After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
