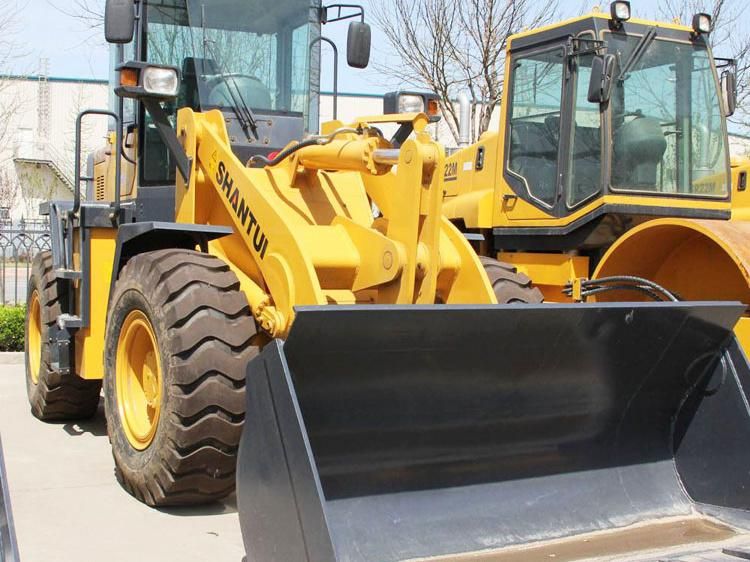

Compact Front End Loader Telescopic Wheel Loader (L36-C3)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Available
  • Warranty：2 Years
  • Certification：CE
  • Condition：New
  • Rated Load：>9t
  • Transmission：Hydraulic

Base Info

  • Model NO.：L36-C3
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Transport Package：Nude
  • Specification：As below
  • Trademark：Shantui
  • Origin：Hunan
  • HS Code：842951000
  • Production Capacity：1000 Pieces,Month

Description

Basic Info.

Model NO. L36-C3 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842951000 Production Capacity 1000 Pieces/Month

Product Description

Various brands and prices available, just send me inquiry, product list will be offered!!!
Compact front end loader telescopic wheel loader (L36-C3)Power System

The drivetrain system of Weichai low-speed energy-saving engine + Shantui low-speed high-capacity torque converter + fixed shaft transmission features low fuel consumption, low malfunction rate, and high energy-saving and efficiency.


Parameter nameL36-C3 SG (Sandstone version)L36-C3 CH (Coal version)L36-C3 MH (Ore version)L36-C3 MW (Mining version )
Performance parameters
Operating weight (Kg)10500105001050010500
Maximum dumping height (mm)3057 (Extended boom)3200 (Long Boom)3055 (Long Boom)3040 (Extended boom)2875 (Standard boom)
Dumping reach (mm)906 (Extended boom)886 (Long Boom)1057 (Long Boom)936 (Extended boom)955 (Standard boom)
Maximum breakout force (kN)≥105≥100≥105≥96
Total cycle time (s)9999.5
Engine
Engine modelWP6WP6WP6WP6
Rated power/rated speed (kW/rpm)92/200092/200092/200092/2200
Overall dimensions
Overall dimensions of machine (mm)7240*2484*32357460*2450*32357337*2470*32357113*2484*2775
Driving performance
Forward speed (km/h)F1:0-7,F2:0-12,F3:0-23,F4:0-37F1:0-7,F2:0-12,F3:0-23,F4:0-37F1:0-7,F2:0-12,F3:0-23,F4:0-37F1:0-5.8,F2:0-10.8,F3:0-18.4,F4:0-35
Reversing speed (km/h)R1:0-8.3,R2:0-28R1:0-8.3,R2:0-28R1:0-8.3,R2:0-28R1:0-7.8,R2:0-27
Chassis System
Wheelbase (mm)2700270027002700
Tank capacity
Fuel tank (L)150150150150
Working device
Rated bucket capacity (m³)1.72.21.71.7
Rated loading capacity (t)3333

Construction Case Picture

Compact Front End Loader Telescopic Wheel Loader (L36-C3)
