• Model NO.：DP-GCS-100
• Height：290mm
• Warranty：12months
• Color：Black
• Material：Rubber
• Brand Name：Puyi
• Load-Bearing Weight：200kg
• Weight：35kg
• Transport Package：Bare Packing or Can Be Customized
• Specification：1100mmX600mmX290mm
• Trademark：No Marks or As buyer′s requests
• Origin：Shanghai
• HS Code：8431499900
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. DP-GCS-100 Height 290mm Warranty 12months Color Black Material Rubber Brand Name Puyi Load-Bearing Weight 200kg Weight 35kg Transport Package Bare Packing or Can Be Customized Specification 1100mmX600mmX290mm Trademark No Marks or As buyer′s requests Origin Shanghai HS Code 8431499900 Production Capacity 5000 Pieces/Month

Product Description

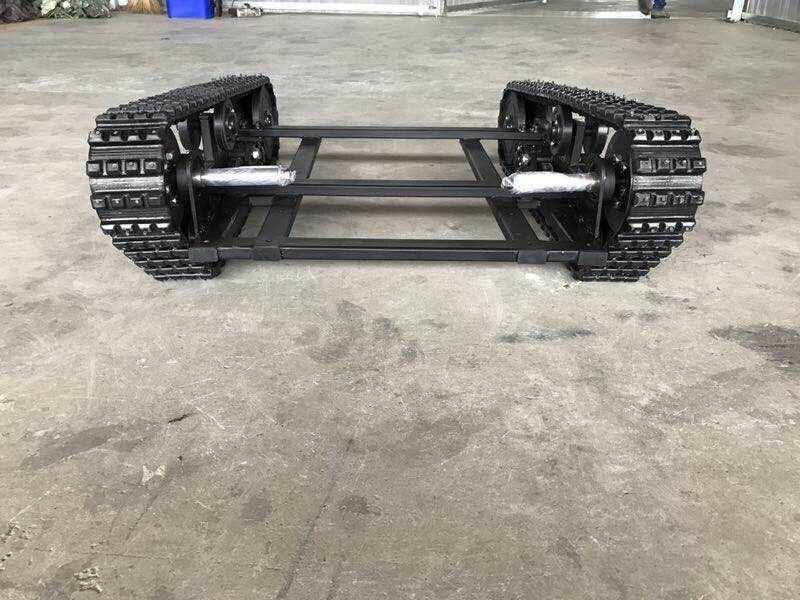

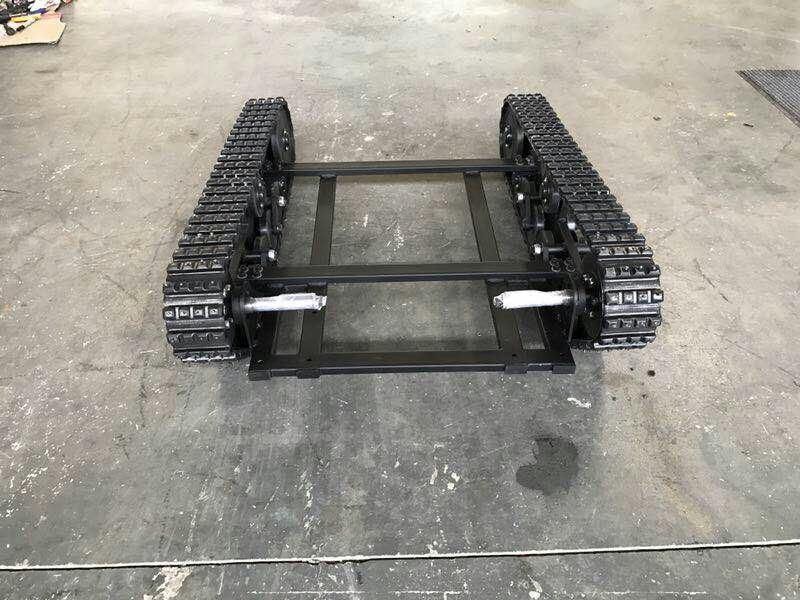

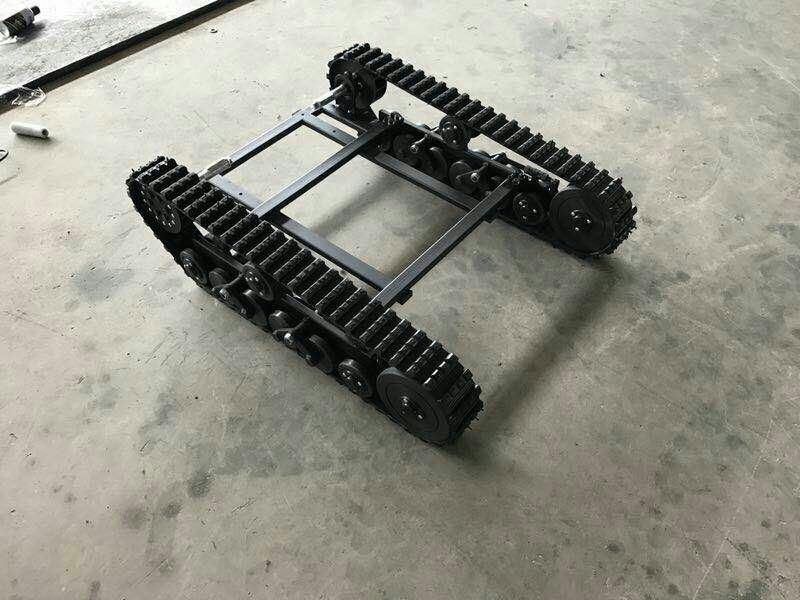

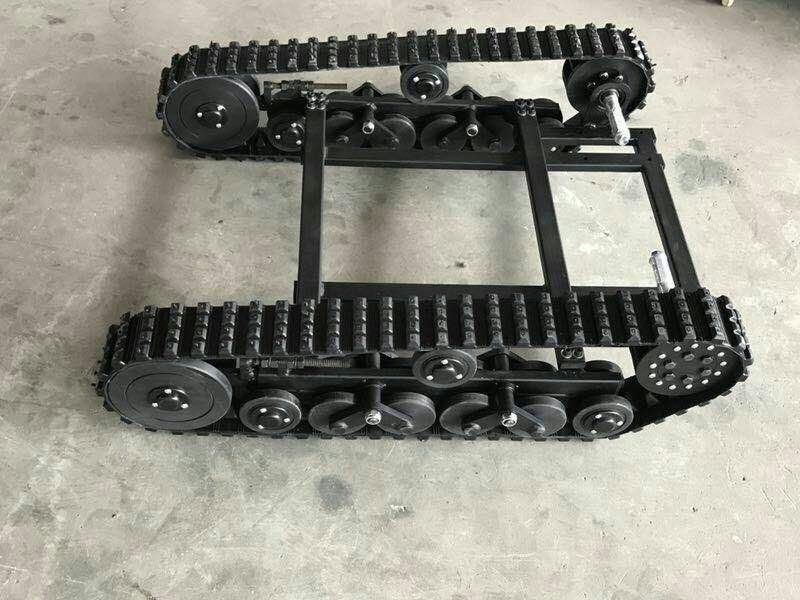

Item: Rubber track undercarriage
Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Steel,Aluminum alloy,rubber


--------------------------------------------------------------------------------


Description of the rubber track undercarriage:
1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.

2. Easy for vehicles to run on hill land, mud road, sand ground...
Application: All terrain/season;Warranty: 12 months


---------------------------------------------------------------------------------


Their choice of operating environment and notice are as follows:
(1) rubber track,temperature is generally between -25 ~ + 55'C.

(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.

(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.

(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.

(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.


-------------------------------------------------------------------------------------

You can send us message
1.Max loaded weight and what kind of machine to fit is necessary to determine the rubber track type

2.The entire size of the rubber track undercarriage,like the Width,Length,Height is also very important for us to make a recommendation for you.

3.The undercarriage in the ads,please have a reference,if you like,we can adjust the size for you.Special customized size is also acceptable.


---------------------------------------------------------------------------------------
Spec in the ads(:mm)
only for the undercarriage


Length	Width	Height	Drive wheel	Rubber Track width	Weight	Load-bearing
1100	600	290	OD145	100	35kg	150kg
