• Model NO.：SR26T
• Compaction Depth：2750mm
• Engine Type：Diesel Engine
• Travel Speed：18km,H
• Centrifugal Force：118,1800
• Certification：EPA, CE
• Condition：New
• Transport Package：Nude
• Specification：As below
• Trademark：Shantui
• Origin：Hunan
• HS Code：842940190
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. SR26T Compaction Depth 2750mm Engine Type Diesel Engine Travel Speed 18km/H Centrifugal Force 118/1800 Certification EPA, CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842940190 Production Capacity 1000 Pieces/Month

Product Description

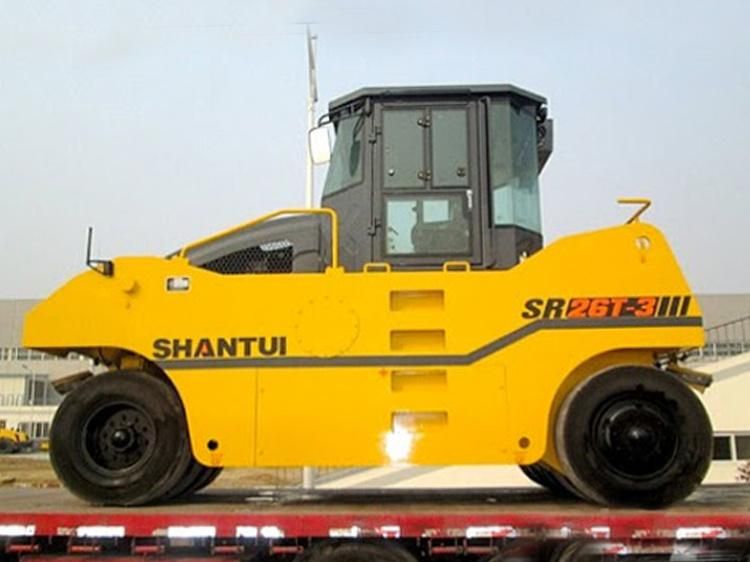

SHANTUI 26 Ton Pneumatic Tyre Roller Compactor (SR26T)Operating cost

The proprietary match technology can achieve high operating efficiency and reasonable fuel economy.

The configuration of brand core parts achieves high quality and reliability and reduces the malfunction downtime.

Working performance

The high-strength three-point swing M frame for front wheels guarantees the uniform compacting on rugged ground.

The special tires for construction machinery feature good wear resistance and long life.

The hydraulic torque converter and power shift transmission with automatic stepless speed regulation are applied to achieve automatic adaptability and stable compacting drive of the road roller.

High maintenance convenience

The centralized oil drainage system eases the maintenances of engine, transmission, radiator, fuel tank, and hydraulic oil tank.

All body parts are designed with service hatches and uplifting covers to ease the maintenances and repairs of parts.

The centralized lubrication system for the rear wheels eases the centralized maintenances of the rear wheels.

High operating comfort

The downward exhaust design and the optimized heat dissipation air ducts reduce the radiation of engine compartment temperature towards the cab.

The double control mode is designed strictly as per ergonomic principles and the functional buttons are centralized to ease the access.

The octahedral cab provides a broad vision.

Parameter name	SR26T
Performance parameters
Operating weight (Kg)	26000
Exciting force (KN)	-
Vibration frequency (Hz)	-
Nominal amplitude (mm)	-
Ground pressure (KPa)	200-420
Gradeability (%)	20
Engine
Engine model	SC7H
Rated power/rated speed (kW/rpm)	118/1800
Overall dimensions
Overall dimensions of machine (mm)	5060*2892*3338
Driving performance
Forward speed (km/h)	F1:0-8,F2:0-18
Reversing speed (km/h)	R1:0-8,R2:0-18
Chassis System
Wheelbase (mm)	3840
Tank capacity
Fuel tank (L)	180
Working device
Compacting width(mm)	2750



Construction Case Picture
