• Model NO.：SE210
• Drive Type：Electric Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Optional Configuration：Breaker, Hammer
• Bucket Type：Rock Bucket
• Distance From Slewing Center to Tail (mm：2853
• Maximum Digging Height (mm)：10029
• Maximum Dumping Height (mm)：7320
• Maximum Digging Depth (mm)：6541
• Maximum Vertical Digging Depth (mm)：5735
• Maximum Digging Distance (mm)：9860
• Model：Weichai,Cummins,Isuzu
• Rated Power (Kw/Rpm)：116,2000
• Transport Package：Null
• Specification：9543*2800*3039mm
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429521200
• Production Capacity：1000,Year

Basic Info.

Model NO. SE210 Drive Type Electric Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Optional Configuration Breaker, Hammer Bucket Type Rock Bucket Distance From Slewing Center to Tail (mm 2853 Maximum Digging Height (mm) 10029 Maximum Dumping Height (mm) 7320 Maximum Digging Depth (mm) 6541 Maximum Vertical Digging Depth (mm) 5735 Maximum Digging Distance (mm) 9860 Model Weichai/Cummins/Isuzu Rated Power (Kw/Rpm) 116/2000 Transport Package Null Specification 9543*2800*3039mm Trademark SHANTUI Origin Shandong, China HS Code 8429521200 Production Capacity 1000/Year

Product Description

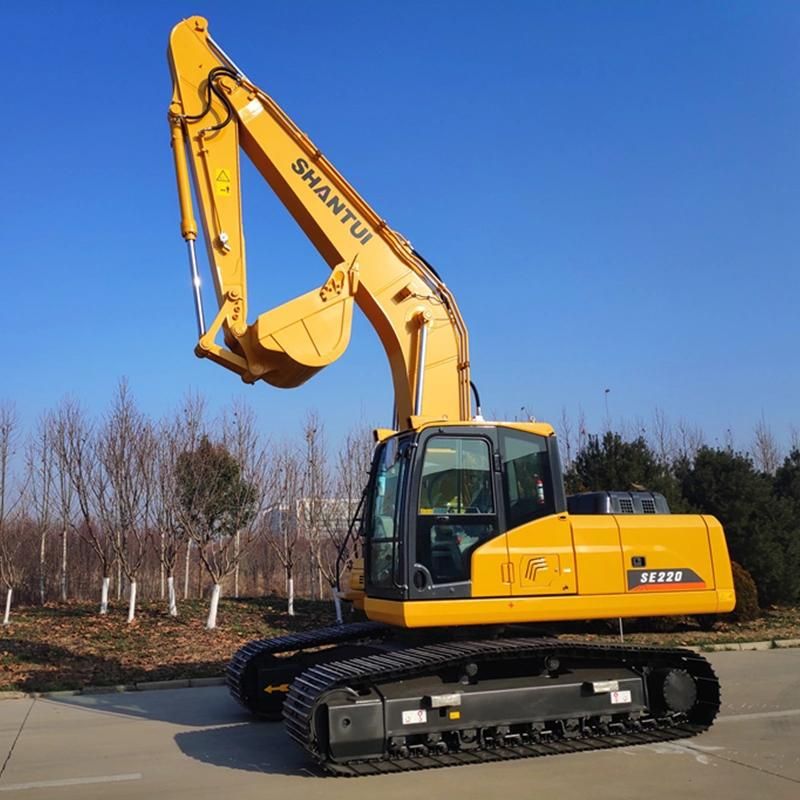

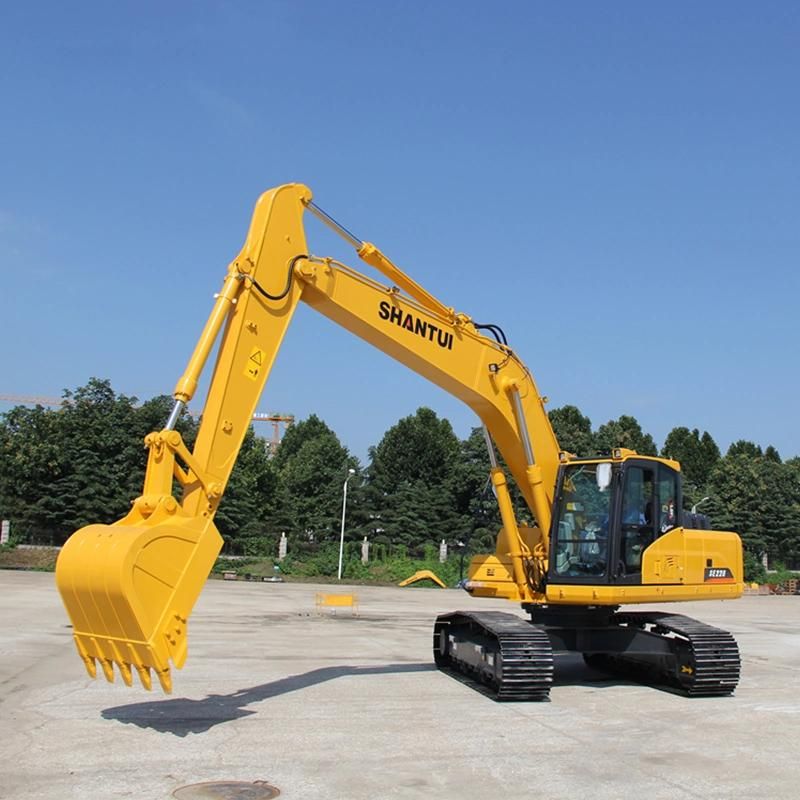

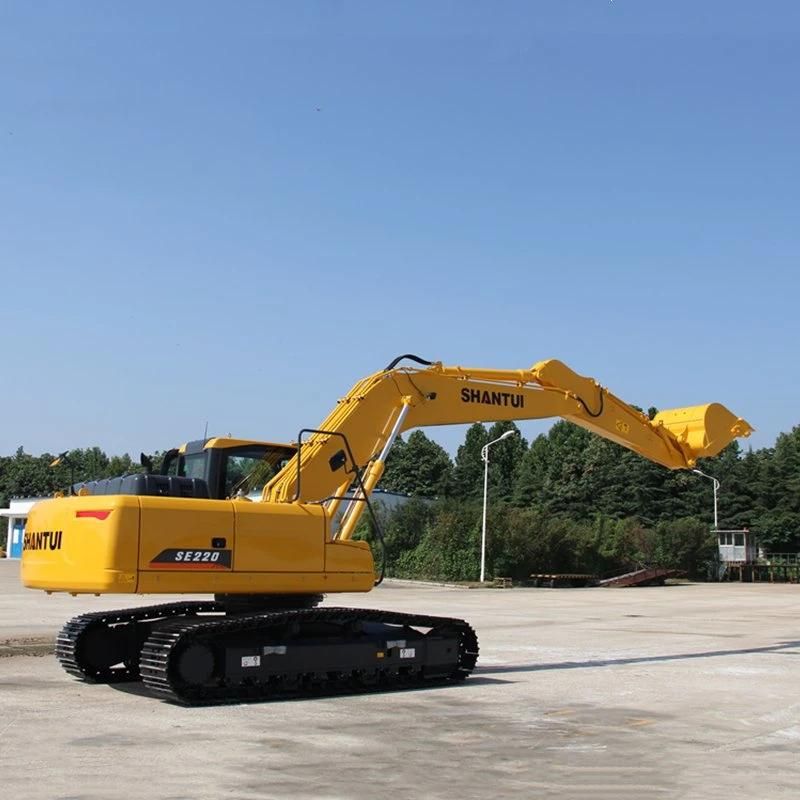

Easy Operation SHANTUI 21 ton SE210 Excavator
Product description:

OVERALL WEIGHT20500kg
BUCKET CAPACITY
0.9m³
ENGINE POWER
With 116kW/2000rpm, this engine conforms to China-III emission regulation.

High-end system configuration

The high-performance turbocharged engine with mechanical pump features high power, low fuel consumption, and powerful fuel adaptability. The all-new load-sensing hydraulic system and the over-class high-displacement constant-power pump matches with low pressure loss main valve and large bore pipeline to realize smooth operations and fast response and improve the efficiency by >8.5%.

Firm and durable structural parts

The upper frame adopts the modal analysis technology to realize high firmness and durability while effectively reducing the vibration and noise of machine.

The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.

The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.

Highly reliable traveling device

With 30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and with industry's high-end technologies, it's the first choice for excavators.

The mature and high-quality forging and heat treatment processes guarantee stable and reliable quality.

The track rollers of same specification with 7T class are installed to realize high firmness and durability and long life.

Convenient maintenances

The washer is installed on the left side of engine compartment to ease the checking and refilling.

The fully openable engine hood is installed with locating mechanism to realize handy and safe opening, large engine compartment space, and easy maintenances.

The electric parts are centrally arranged on the right front tool compartment to ease the checking and maintenance.

The filling of coolant and the replacement of air filter are easily accessible.

Intelligent electronic control and optimal power control

The intelligent control system realizes high match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.

The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.

Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover.

Optional equipment of machine

Refueling pump

Cab warning lamp

Cab ceiling lamp

Cab overhead protective net

Cab front upper protective net

Cab front lower protective net

Rubber track

Narrow bucket

Wide bucket

coordination.

Comparative item	SE210W (Standard version)
Overall dimensions
Overall length (mm)	9543
Ground length (During transport) (mm)	4860
Overall height (To the top of boom) (mm)	3039
Overall width (mm)	2800
Overall height (To top of cab) (mm)	2977
Ground clearance of counterweight (mm)	1120
Minimum ground clearance (mm)	470
Tail turning radius (mm)	2905
Track length (mm)	4160
Track gauge (mm)	2200
Track width (mm)	2800
Standard track shoe width (mm)	600
Turntable width (mm)	2726
Distance from slewing center to tail (mm)	2853
Working range
Maximum digging height (mm)	10029
Maximum dumping height (mm)	7320
Maximum digging depth (mm)	6541
Maximum vertical digging depth (mm)	5735
Maximum digging distance (mm)	9860
Maximum digging distance at ground level (mm)	9673
Working device minimum turning radius (mm)	3041
Maximum lifting height of bulldozer blade (mm)	-
Maximum digging depth of bulldozer blade (mm)	-
Engine
Model	Weichai WP7(China III)
Type	6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	7.14
Rated power (kW/rpm)	116/2000
Hydraulic system
Type of hydraulic pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x218
Bucket
Bucket capacity (m³)	0.9
Swing system
Maximum swing speed (r/min)	11.5
Brake type	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	92.5/99.5
Bucket digging force (KN)	115/124
Operating weight and ground pressure
Operating weight (kg)	20500
Ground pressure (kPa)	45
Traveling system
Traveling motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.3/5.4
Traction force (KN)	201
Gradeability	70%(35°)
Tank capacity
Fuel tank capacity (L)	360
Cooling system (L)	25
Engine oil capacity (L)	24
Hydraulic oil tank/system capacity (L)	250/420
