Zoomlion 240m3/H Fixed Ready Mixing Concrete Batching Plant with Mixer

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Type：Concrete Mixing Plant
  • Shotcrete Type：Semi-Dry
  • Machining Process：Hydraulic
  • Structure：Rotor Type
  • Productivity：240m²,h
  • Certification：ISO9001: 2000, CE

Base Info

  • Model NO.：HZS240
  • Condition：New
  • Color：Optional
  • Mixer：Js4000
  • Total Installed Power：260 Kw
  • Transport Package：Nude
  • Trademark：Zoomlion
  • Origin：Hunan, China
  • HS Code：8474310000
  • Production Capacity：1000PCS,Year

Description

ModelHZS240Theoretical Output Capacity (m³/h)240Discharge Height (m)≥4MixerJS4000Theoretical Production Periods (s)60Aggregate Storage (m³)4×25Max. Weighing Value of Slant Belt Conveyor (kg)900The Conveying Capacity of Screw Conveyor (t/h)110Total Installed Power (kW) for Reference260Max. Batching Value and Accuracy of Aggregate (kg)4800±2%       Max. Batching Value and Accuracy of Cement (kg)2000±1%Max. Batching Value and Accuracy of Powder Admixtures (kg)                 800±1%Max. Batching Value and Accuracy of Water (kg)900±1%Max. Batching Value and Accuracy of Liquid Additive (kg)80±1%
Product Pictures

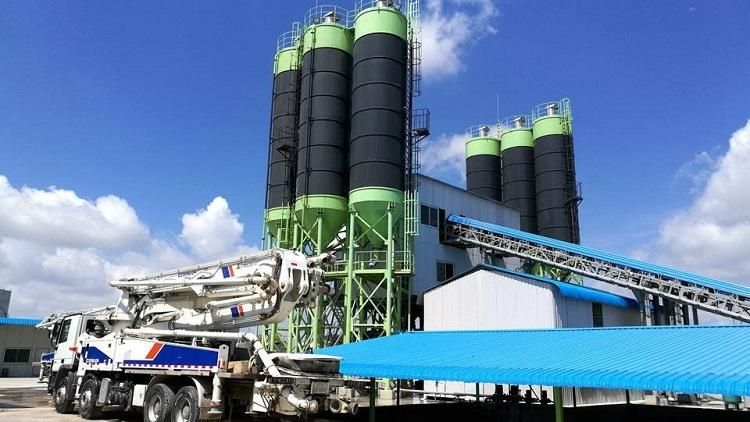

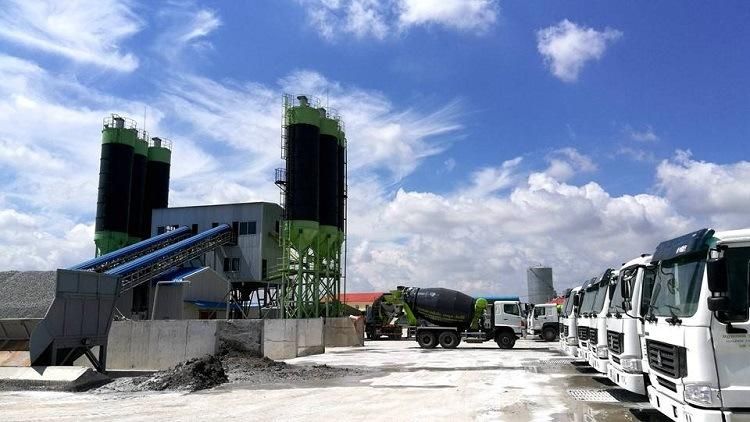

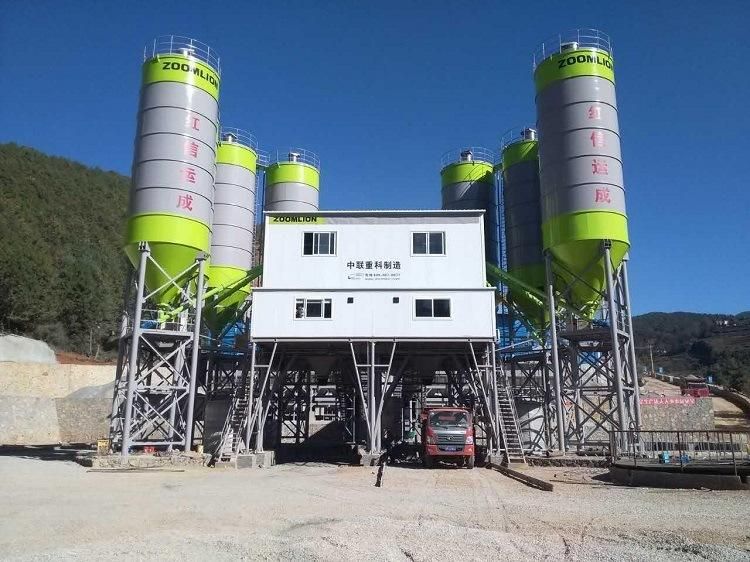

Zoomlion 240m3/H Fixed Ready Mixing Concrete Batching Plant with Mixer
Zoomlion 240m3/H Fixed Ready Mixing Concrete Batching Plant with Mixer
Zoomlion 240m3/H Fixed Ready Mixing Concrete Batching Plant with Mixer
